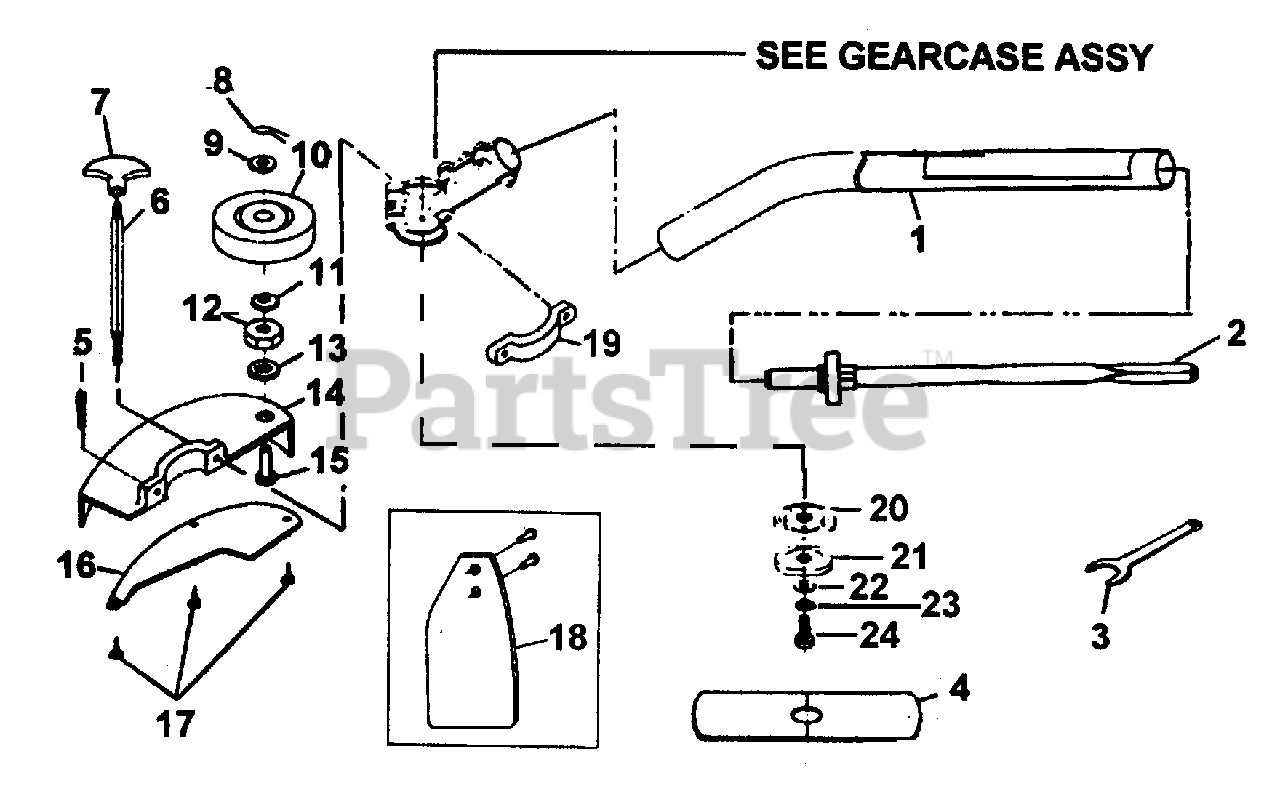

2851 (UT-26307) - Green Machine Edger Attachment (1996-01) Driveshaft & Guard Assembly Parts Diagram

Edger Attachment

Driveshaft & Guard Assembly Parts Diagram

  • Title

1

Homelite A08199

TUBE ASSY
(Superseded to A09292)

$

$

Not available

2

Homelite A08420

FLEX CABLE
(Superseded to A09291)

$

$

Not available

3

Homelite GM300190

SPANNER WRENCH

$

$

Not available

4

Homelite GM237001

EDGER BLADE
(Superseded to DG07812)

$

$

Not available

5

Homelite GM237604

SCREW, ALLEN HEAD

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

6

Homelite GM280640

SHAFT AND KNOB

$

$

Currently unavailable

7

Homelite 08290

KNOB

$

$

Not available

8

Homelite GM236907

COTTER PIN

$

$

Not available

9

Homelite 96102

WASHER, FLAT

$

$

Not available

10

Homelite GM235102

WHEEL

$

$

Not available

11

Homelite 96102

WASHER, FLAT

$

$

Not available

Homelite A08162

EDGER GUARD ASSY.
(Superseded to 08095)

$

$

Not available

12

Homelite GM051017

NUT
(Superseded to UP08039)

Note: Torque Specs: 150-200 In/Lbs; 17.3-23 Nm

$

$

Not available

13

Homelite GM041007

WASHER, FLAT

$

$

Not available

14

Homelite 08095

GUARD, EDGER

$

$

Not available

15

Homelite GM237610

EDGER AXLE

$56.99

$

Usually ships in 3-7 days

0

16

Homelite GM236909

SHIELD, EDGER

$

$

Currently unavailable

17

Homelite 82459

SCREW, SELF TAPPING

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.8 Nm

$

$

Not available

18

Homelite A08161

DRAG FLAP KIT

$

$

Not available

19

Homelite GM236110

BRACKET

$

$

Currently unavailable

20

Homelite GM300070

HOLDER A

$

$

Not available

21

Homelite GM300075

HOLDER B
(Superseded to UP06798)

$9.99

$

Usually ships in 3-7 days

0

22

Homelite GM041003

WASHER, FLAT

$

$

Not available

23

Homelite GM040007

WASHER, LOCK
(Superseded to UP06519)

$

$

Not available

24

Homelite GM300080

BOLT, L.H. THREAD
(Superseded to UP08260)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
