2840 (UT-26200) - Green Machine String Trimmer 2845 Stringhead and Accessories Attachment Parts Diagram

String Trimmer

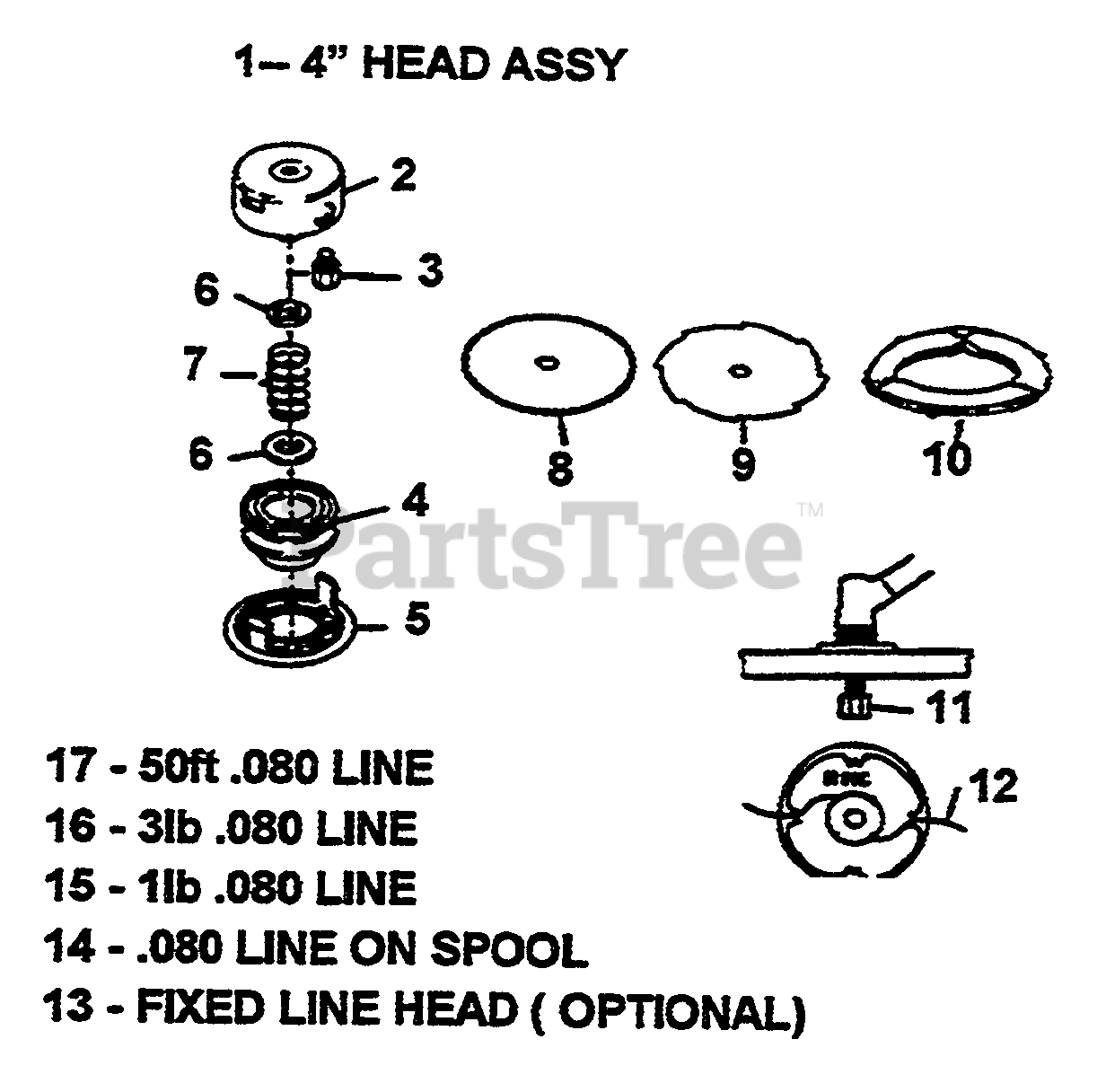

2845 Stringhead and Accessories Attachment Parts Diagram

  • Title

1

Homelite GM20195

4" HEAD ASSY
(Superseded to DG07796)

$

$

Not available

2

Homelite GM180302

BODY

$

$

Not available

3

Homelite GM226701

ARBOR BOLT

$

$

Not available

4

Homelite GM185206

SPOOL
(Superseded to DG07811A)

$

$

Not available

5

Homelite GM185205

CAP

$

$

Not available

6

Homelite GM166903

PLATE, SPRING

$

$

Not available

7

Homelite GM167901

SPRING
(Superseded to UP06740)

$5.49

$

Usually ships in 3-7 days

0

8

Homelite GM92130

9" SAW BLADE
(Superseded to DG07815)

$39.99

$

Usually ships in 3-7 days

0

9

Homelite GM92140

9" BRUSH BLADE
(Superseded to DG07816)

$

$

Not available

10

Homelite GM94110

BLADE COVER

$

$

Not available

11

Homelite GM325205

ARBOR BOLT

$

$

Currently unavailable

12

Homelite GM31105

.105 LINE, 20" STRIPS
(Superseded to DG07809)

$

$

Not available

13

Homelite GM25250

FIXED LINE HEAD

Note: Includes ref Nos 11 & 12

$

$

Currently unavailable

14

Homelite GM32005

SPOOL & LINE
(Superseded to DG07810)

$

$

Not available

15

Homelite GM31005

1lb .080 LINE
(Superseded to DG07804)

$

$

Not available

16

Homelite GM31004

31b .080 LINE
(Superseded to G07803)

$

$

Currently unavailable

17

Homelite GM31080

50ft.080 LINE
(Superseded to DG07801)

$

$

Not available
