2840 (UT-26031-A) - Green Machine String Trimmer Upper Tube & Handle Parts Diagram

String Trimmer

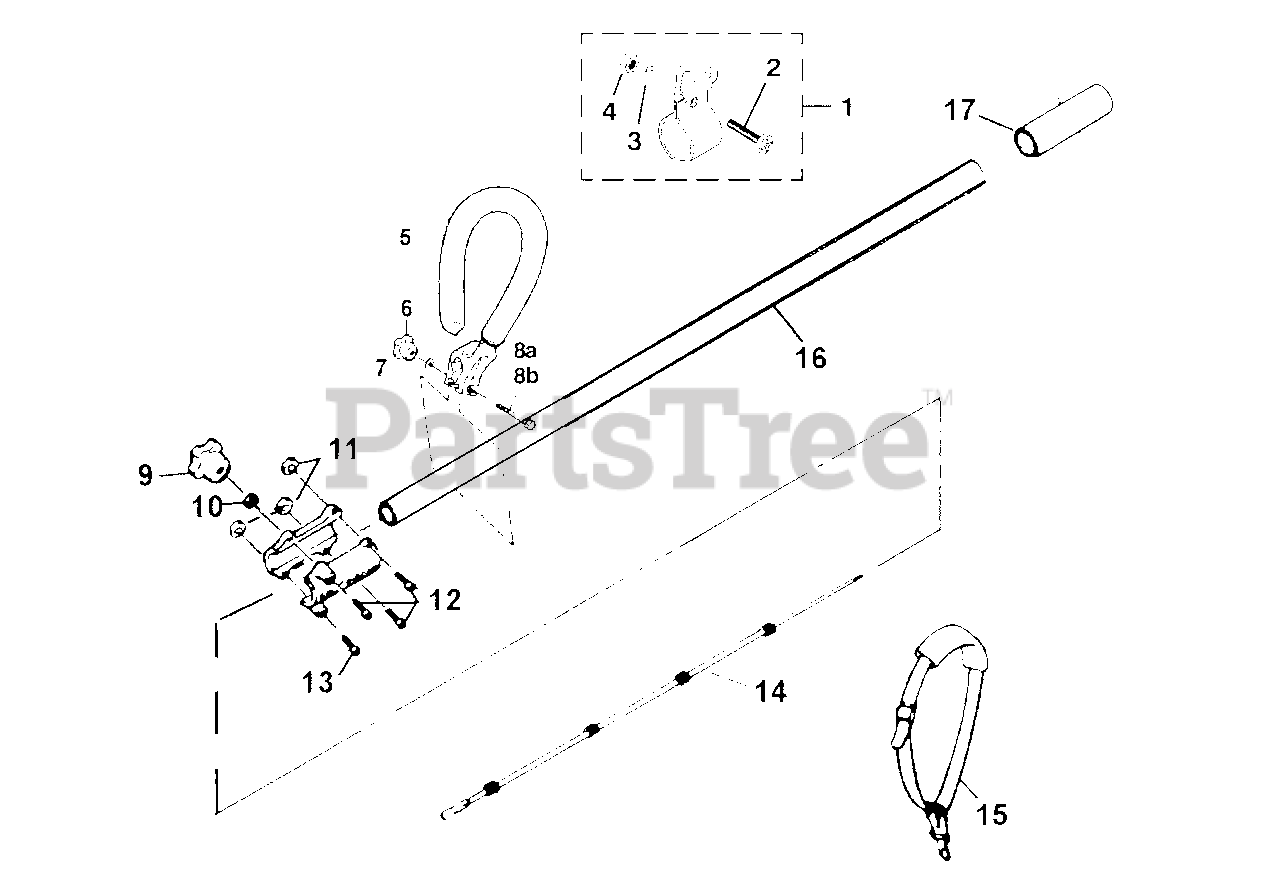

Upper Tube & Handle Parts Diagram

  • Title

1

Homelite GM250312

HANGER ASSY.

$

$

Not available

2

Homelite GM010002

SCREW

$2.49

$

Usually ships in 3-7 days

0

3

Homelite GM041101

WASHER

$

$

Not available

4

Homelite GM050003

NUT

$

$

Not available

5

Homelite GM300302

HANDLE ASSY.

$

$

Not available

6

Homelite 08290

KNOB

$

$

Not available

7

Homelite 84006

WASHER

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

8A

Homelite 80295

BOLT, HEX HEAD

Note: Torque Specs: 52-69 In/Lbs; 5.9-7.8 Nm

$4.99

$

Usually ships in 3-7 days

0

8B

Homelite GM257606

CARRIAGE BOLT
(Superseded to 80295)

Note: (Used on OLD Non-Padded handle); Torque Specs: 52-69 In/Lbs; 5.9-7.8 Nm

$4.99

$

Usually ships in 3-7 days

0

Homelite A07901

COUPLER ASSY.

$

$

Not available

9

Homelite 08290

KNOB

$

$

Not available

10

Homelite GM040016

WASHER

$

$

Not available

11

Homelite 81267

NUT

$

$

Not available

12

Homelite GM011426

BOLT
(Superseded to 82278)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$2.49

$

Usually ships in 3-7 days

0

13

Homelite GM030017

BOLT

$

$

Not available

14

Homelite A07667

LINER ASSY.
(Superseded to A07667A)

$

$

Not available

15

Homelite GM280311

HARNESS
(Superseded to DG07819)

Note: (OPTIONAL)

$

$

Not available

16

Homelite GM280621

TUBE ASSY.

$

$

Not available

17

Homelite GM300038

GRIP

$

$

Not available
