2840 (UT-26031-A) - Green Machine String Trimmer Ignition Parts Diagram

String Trimmer

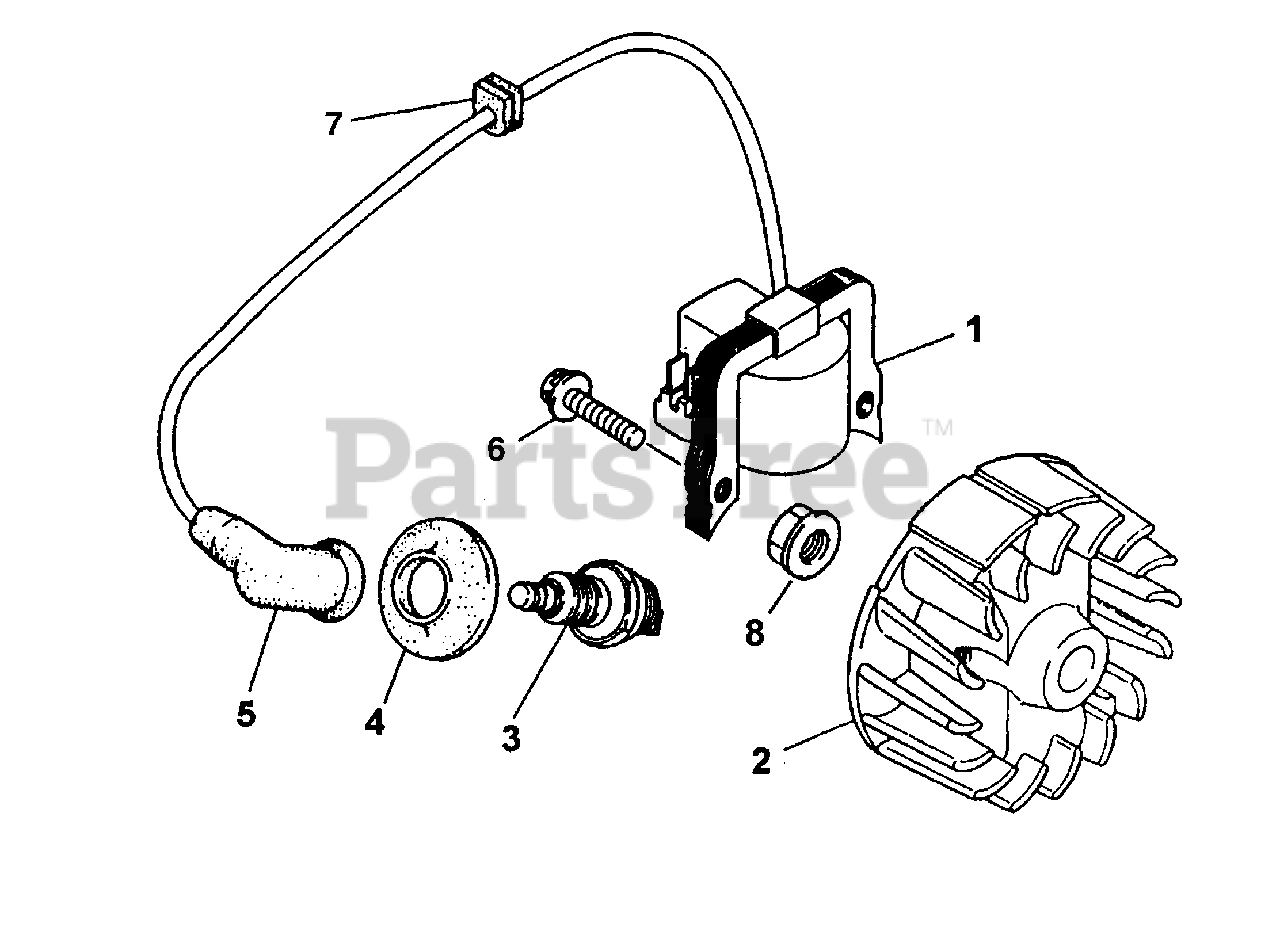

Ignition Parts Diagram

  • Title
1

Homelite 07736

COIL, IGNITION

$

$

Not available

2

$

$

Not available

3

Homelite GM190036

SPARK PLUG

$

$

Not available

4

Homelite 07739

CAP, GROMMET

$

$

Not available

5

Homelite 07737

CAP, PLUG

$

$

Not available

6

Homelite GM030104

BOLT & WASHER

Note: Torque Specs: 35-45 In/Lbs: 4-5 Nm

$

$

Currently unavailable

7

Homelite 07738

GROMMET, WIRE

$

$

Not available

8

Homelite GM052804

NUT, FLYWHEEL

Note: Torque Specs: 69-87 In/Lbs: 7.8-9.8 Nm

$

$

Not available

9

Homelite 07740

WIRE, LEAD

Note: (NOT SHOWN)

$

$

Not available
