2840 (UT-26031-A) - Green Machine String Trimmer Driveshaft / Guard / Gearcase - Model 2845 Attachment Parts Diagram

String Trimmer

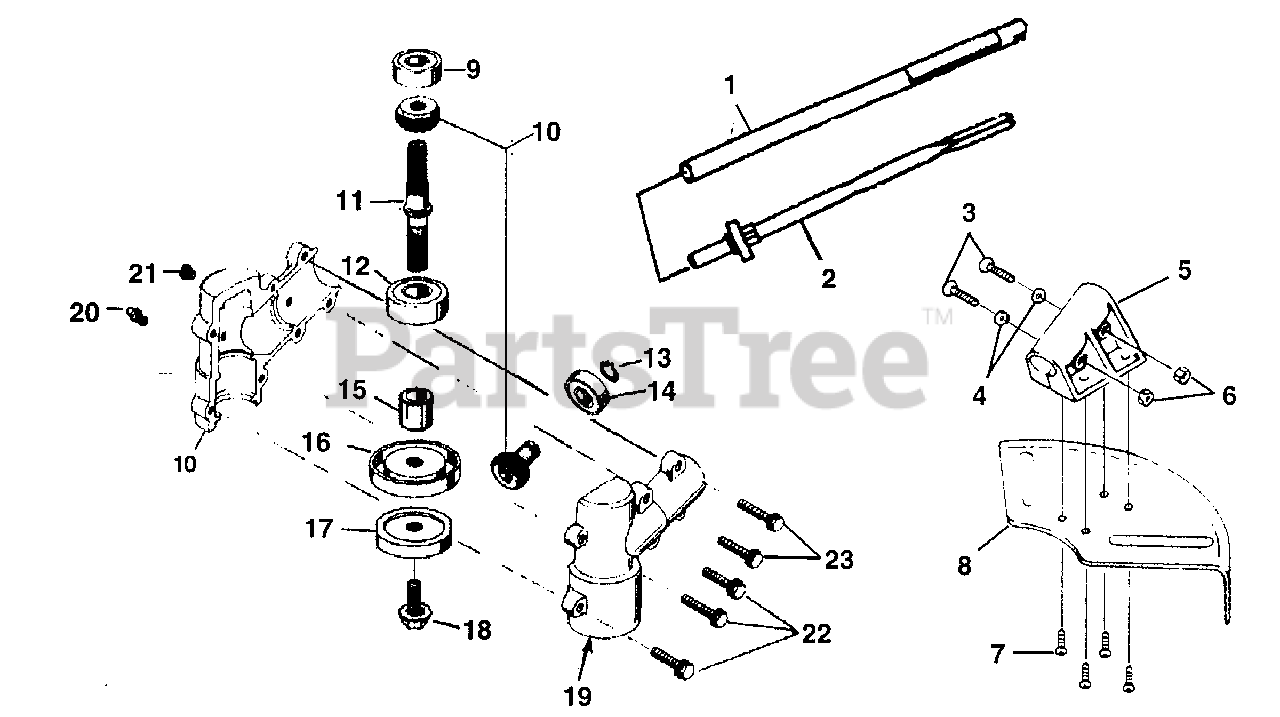

Driveshaft / Guard / Gearcase - Model 2845 Attachment Parts Diagram

  • Title

1

Homelite GM280331

TUBE ASSY.

$

$

Not available

2

Homelite GM357802

FLEX CABLE

$

$

Currently unavailable

Homelite GM24700A

BLADE GUARD ASSY.

$

$

Not available

3

Homelite GM011417

SCREW

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

4

Homelite GM040002

WASHER

$

$

Not available

5

Homelite GM245201

BRACKET

$

$

Not available

6

Homelite GM051012

NUT

$

$

Currently unavailable

7

Homelite GM011423

SCREW, SELF TAPPING
(Superseded to UP06817)

Note: Torque Specs: 35-45 In/Lbs; 4.0-5.0 Nm

$

$

Not available

8

Homelite GM247001

GUARD
(Superseded to GM24700A)

$

$

Not available

Homelite GM270303

GEARCASE ASS.
(Superseded to UP05308)

$191.99

$

Usually ships in 3-7 days

0

9

Homelite 09147

BEARING
(Superseded to UP05816)

$

$

Not available

10

Homelite GM190609

GEAR SET

$79.99

$

Usually ships in 3-7 days

0

11

Homelite GM226706

SHAFT, GEAR

$

$

Not available

12

Homelite 09141

BEARING

$

$

Not available

13

Homelite 09151

RING

$

$

Not available

14

Homelite 09134

BEARING
(Superseded to UP06386)

$

$

Not available

15

Homelite GM226705

COLLAR

$

$

Currently unavailable

16

Homelite GM300070

UPPER FLANGE WASHER

$

$

Not available

17

Homelite GM300075

LOWER FLANGE WASHER
(Superseded to UP06798)

$9.99

$

Usually ships in 3-7 days

0

18

Homelite 09140

SEMS SCREW, BLADE
(Superseded to UP08260)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

19

Homelite GM270306

HOUSING SET

$

$

Currently unavailable

20

Homelite GM286716

FITTING, ZERK

$

$

Not available

21

Homelite 82459

SCREW, SELF TAPPING

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

22

Homelite 825491

SCREW, SELF TAPPING
(Superseded to UP05542)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

23

Homelite 825491

SCREW, SELF TAPPING
(Superseded to UP05542)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available
