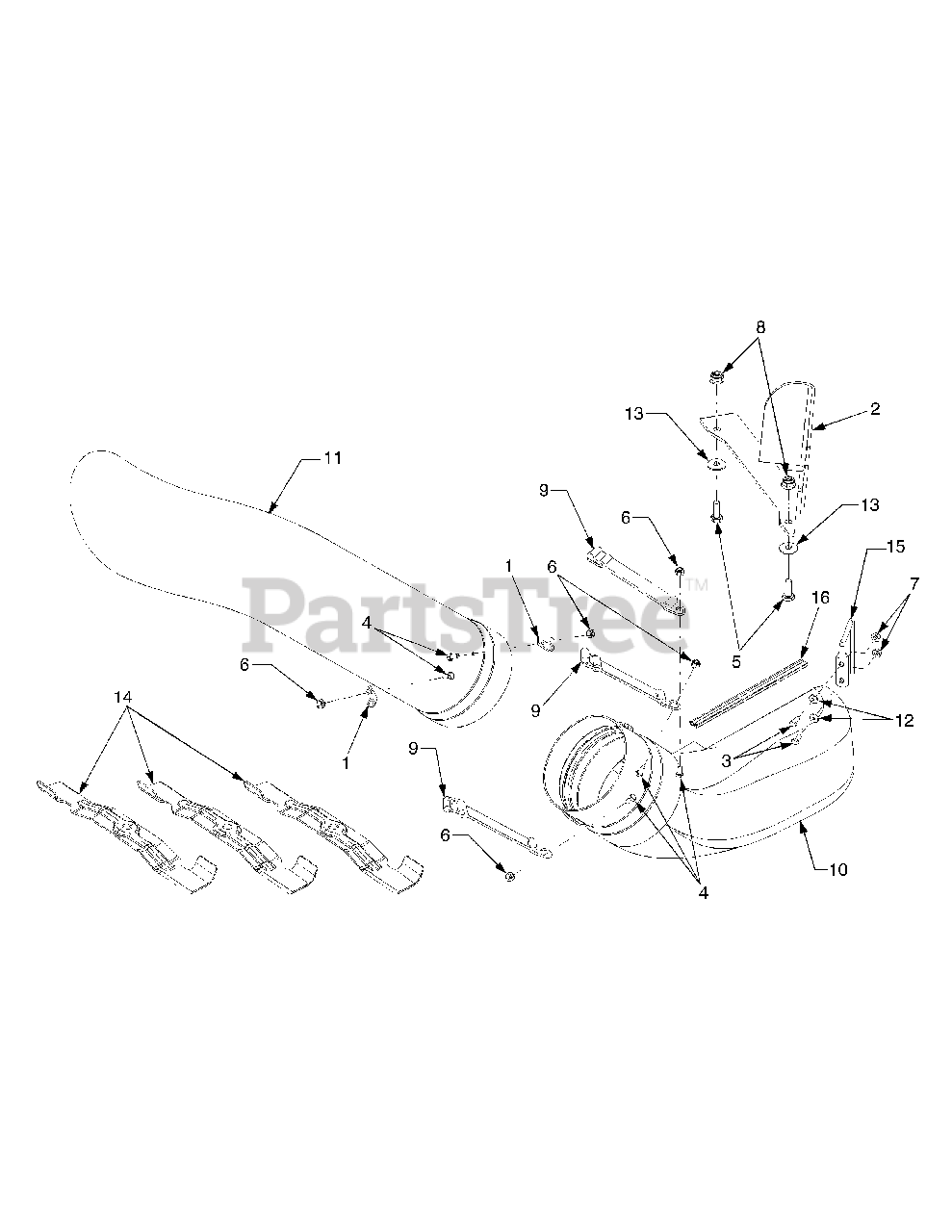

283 (190-283-100) - Cub Cadet Triple Rear Bagger Discharge Chute Parts Diagram

Triple Rear Bagger

Discharge Chute Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 703-05783

Deflector, Deck
(Superseded to 703-05783-0637)

Variations

Cub Cadet 703-05783-0637

Baffle, 50" - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x 75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3015

Screw, Hx Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04064

Nut, Hx Flange Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 723-0383

Strap Assembly, Retainer
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

9

Cub Cadet 732-0695

Wire Hook, Eyelet

$3.49

$

In Stock, only 2 left!

0

9

Cub Cadet 732-0696

Wire Hook, Rectangular

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 631-0221A

Chute, Discharge (Includes Ref. Nos. 3, 7, 12 and 15)

$260.99

$

In Stock, only 2 left!

0

11

Cub Cadet 731-0926B

Tube, Chute

$142.99

$

In Stock, only 1 left!

0

12

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0270

Washer, Belleville, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 742-04067C

Blade, High Lift
(Superseded to 759-04046)

$

$

Not available

15

Cub Cadet 747-2134

Rod, Chute Mounting
(Superseded to 747-2134A)

$62.99

$

In Stock, only 1 left!

0

16

Cub Cadet 723-3061-13

Seal, Heat Baffle, 12"

$25.99

$

Usually ships in 3-6 days

0
