283 (190-283-100) - Cub Cadet Triple Rear Bagger att Cover Assembly Parts Diagram

Triple Rear Bagger

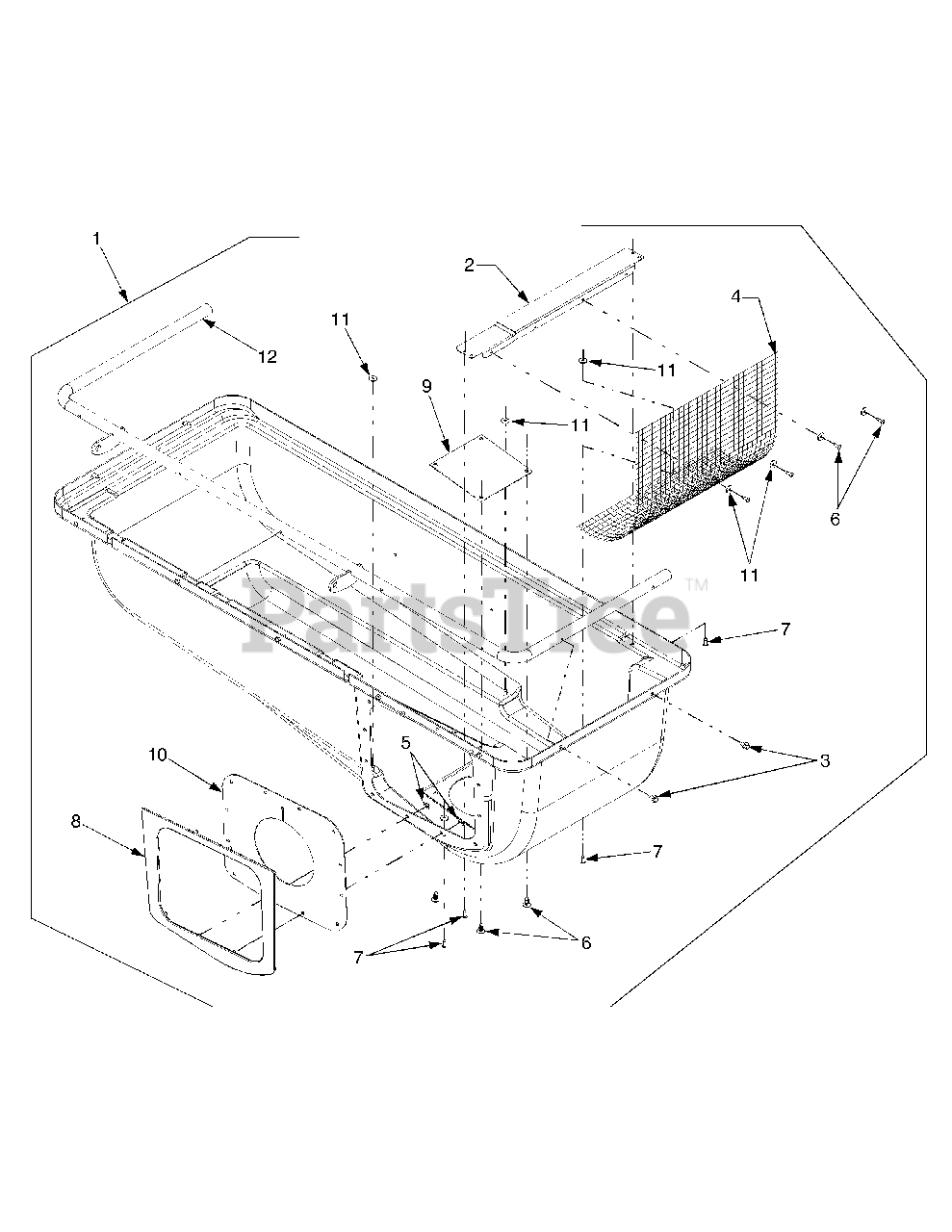

Cover Assembly Parts Diagram

  • Title

1

Cub Cadet 664-04018

Cover Assembly

$

$

Not available

1

Cub Cadet 777S30250

Label, Warning

$

$

Not available

1

Cub Cadet 777D03361

Decal, Cub Cadet

$

$

Not available

1

Cub Cadet 726-3040

Speed Nut, Push On

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 17202A

Bracket, Screen Mounting

Variations

Cub Cadet 17202A-0637

SCREEN MTG BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-1652

Screw, Hex Wash Hd Tapp, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 720-04018

Screen
(Superseded to 920-04018)

$

$

Not available

5

Cub Cadet 726-04027

Speed Nut, Push On
(Superseded to 926-04027)

$

$

Not available

6

Cub Cadet 726-0479

Clip, Ratchet

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 728-0123

Rivet, Pop, .187 x .45
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-04189

Retainer, Seal
(Superseded to 931-04189)

$

$

Not available

9

Cub Cadet 731-0824A

Plate, Plastic

$

$

Not available

10

Cub Cadet 735-04020

Seal, Tube
(Superseded to 935-04020)

$

$

Not available

11

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$5.49

$

In Stock, Qty 14

0

12

Cub Cadet 749-0747-0637

Bracket Assembly, Cover Hinge

$

$

Not available
