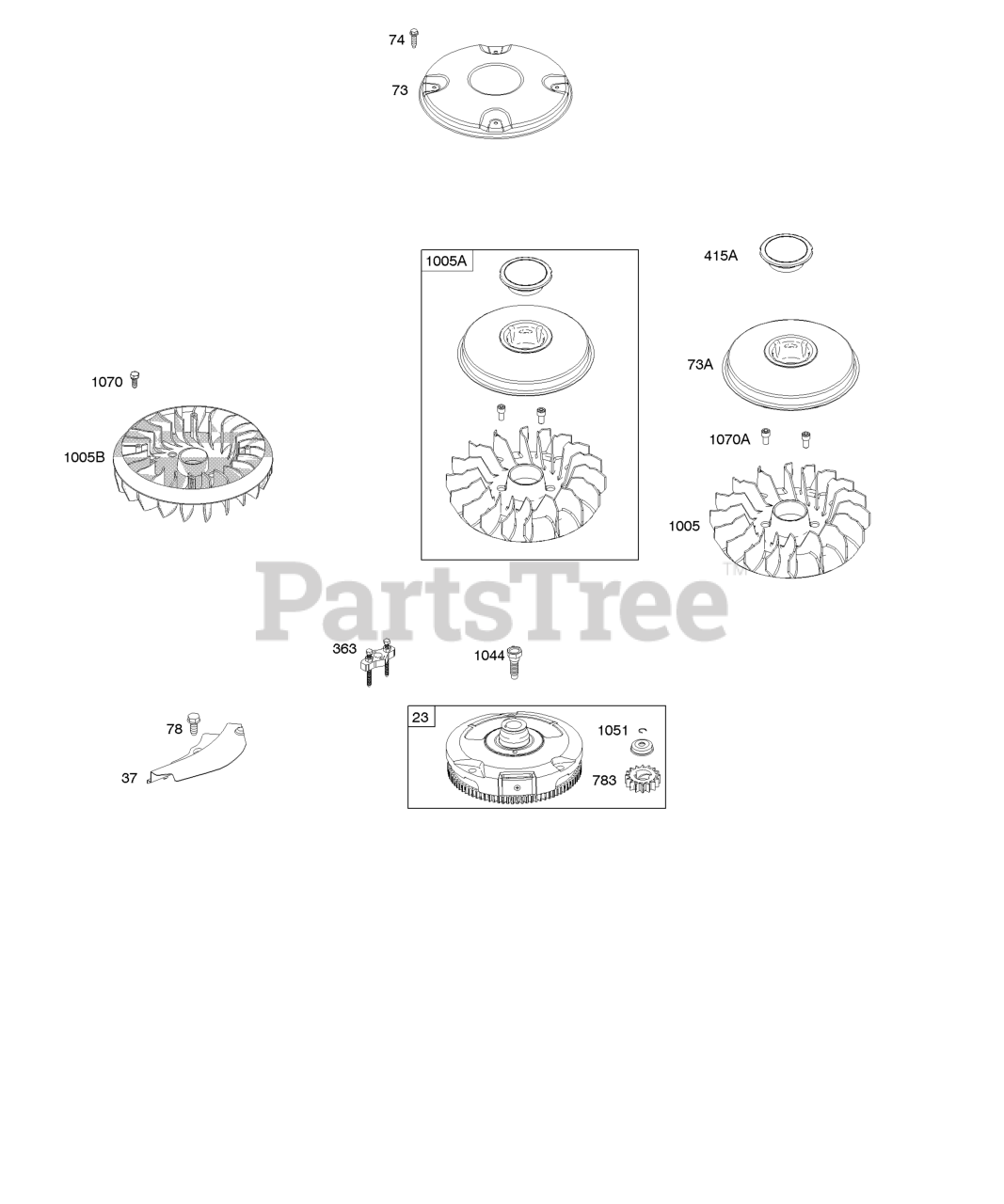

282H07-0125-B1 - Briggs & Stratton Vertical Engine Flywheel Parts Diagram

Vertical Engine

Flywheel Parts Diagram

  • Title

23

Briggs & Stratton 693557

Flywheel

$

$

Not available

37

Briggs & Stratton 697352

GUARD, Flywheel

$10.99

$

In Stock, only 2 left!

0

73

Briggs & Stratton 697133

Screen-Rotating

Note: Used Before Code Date 07040900

$

$

Not available

73A

Briggs & Stratton 794437

Screen-Rotating
(Superseded to 593933)

Note: Used After Code Date 07040800

$45.99

$

In Stock, Qty 6

0

74

Briggs & Stratton 697897

Screw

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691003

SCREW

Note: (Flywheel Guard)

$3.49

$

In Stock, Qty 9

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

415A

Briggs & Stratton 794129

PLUG

Note: Used After Code Date 07040800

$6.99

$

In Stock, only 2 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 794438

Fan-Flywheel
(Superseded to 796201)

Note: Used After Code Date 07040800

$29.99

$

In Stock, Qty 20+

0

1005A

Briggs & Stratton 794436

Fan-Flywheel
(Superseded to 796201)

Note: Used Before Code Date 07040900

$29.99

$

In Stock, Qty 20+

0

1005B

Fan-Flywheel

Note: (No Longer Available)(See Reference 1005A for Service Flywheel Fan)

$

$

Not available

1044

Briggs & Stratton 691658

Screw
(Superseded to 698139)

Note: (Flywheel)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Flywheel Fan) Used Before Code Date 07040900

$3.99

$

In Stock, Qty 6

0

1070A

Briggs & Stratton 690363

Screw

Note: (Flywheel Fan) Used After Code Date 07040800

$4.99

$

In Stock, only 3 left!

0
