282707-0101-01 - Briggs & Stratton Vertical Engine Fuel Tank Assy Parts Diagram

Vertical Engine

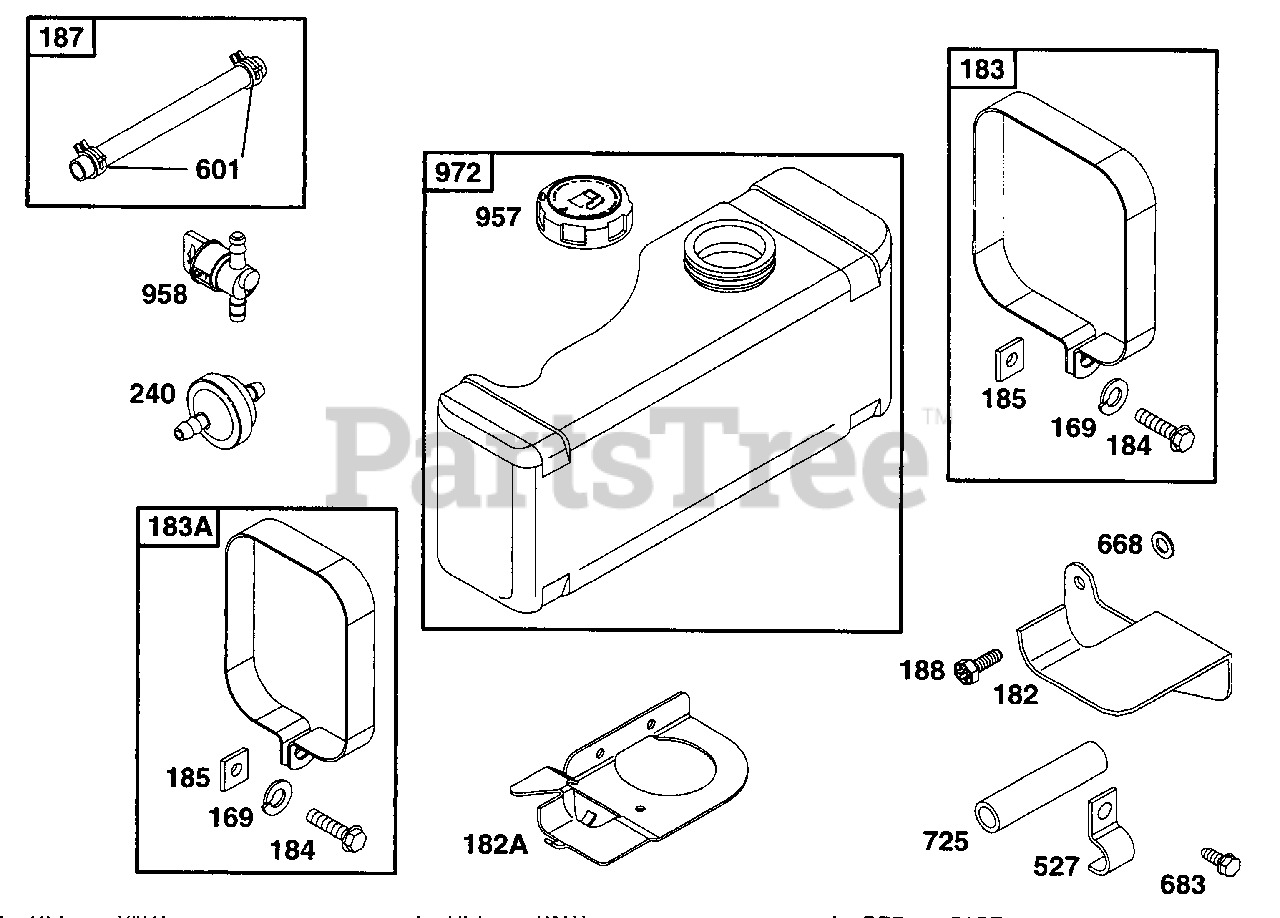

Fuel Tank Assy Parts Diagram

  • Title
169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 498194

Bracket, Tank (P-29)
(Superseded to 692535)

$45.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 223925

Bracket, Tank (R.H.)
(Superseded to 690443)

$22.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 496852

Strap, Tank Assy (L.H.)
(Superseded to 692030)

$16.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 390406

Strap, Tank Assy (R.H.)
(Superseded to 698459)

$17.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 94286

Screw-Hex.
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 299146

Line-Fuel (28" Cut To Required Length)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94480

Screw, Sem Hex Head (Used On Electric Start Engines)
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

527

Briggs & Stratton 221428

Breather Tube Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 95162

Clamp, Hose (Red)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 231109

Spacer
(Superseded to 690510)

$6.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 94874

Screw, Hex Wash Hd
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

725

Briggs & Stratton 222175

Deflector, Heat
(Superseded to 690403)

$6.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 223023

Shield-Muffler
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 493988

Cap, Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 494768

Vlv-Shut Off Plas (Upper)
(Superseded to 698183)

$8.49

$

In Stock, Qty 20+

0

972

Briggs & Stratton 390225

Tank-Fuel (3 Quart, Plastic)

$

$

Not available
