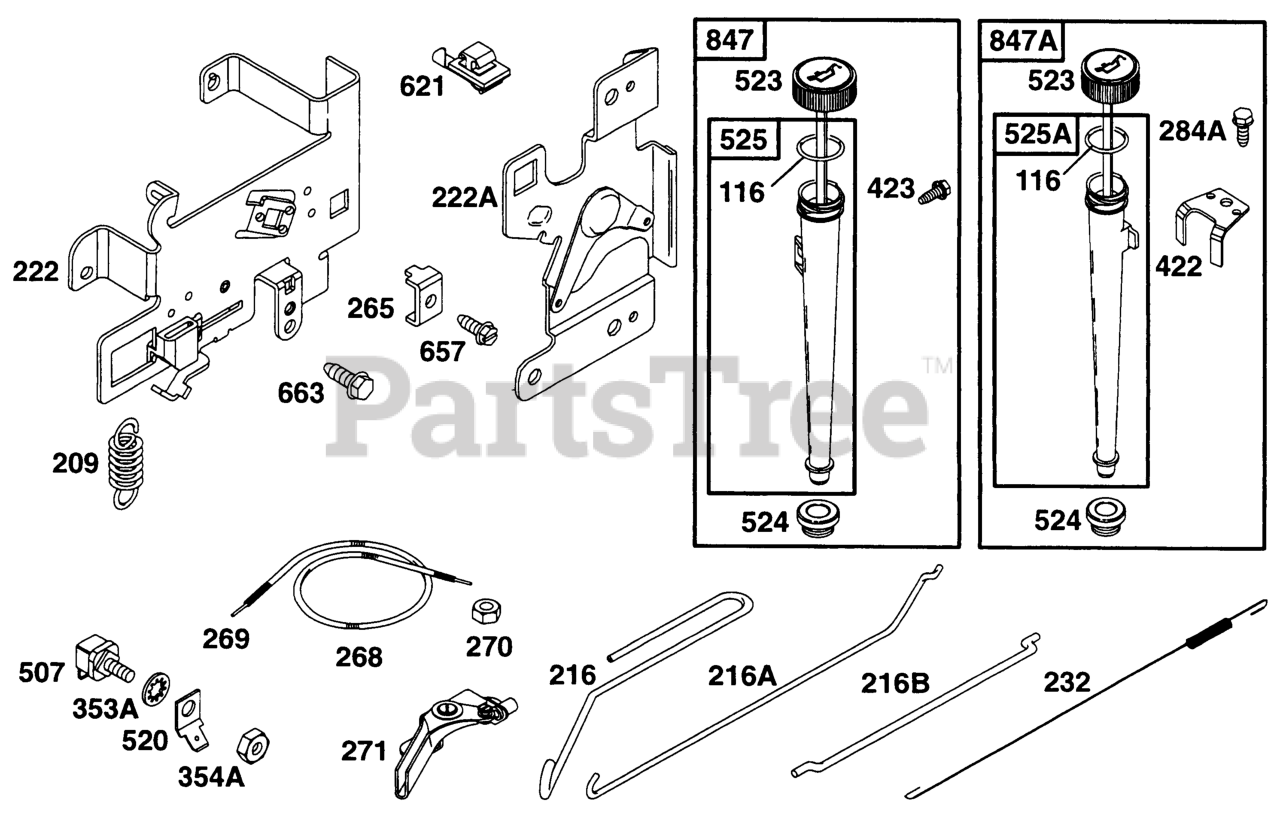

282707-0101-01 - Briggs & Stratton Vertical Engine Controls, Oil Fill Parts Diagram

Vertical Engine

Controls, Oil Fill Parts Diagram

  • Title

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 494241

$4.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260871

Spring, Governor (For 2700 To 3300 R.p.m.)
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

216A

Briggs & Stratton 262767

Link-Mechanical Governor
(Superseded to 691841)

$9.49

$

In Stock, Qty 13

0

216B

Briggs & Stratton 262828

Link, Bell Crank (Governor)
(Superseded to 691281)

$

$

Not available

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

In Stock, Qty 19

0

222A

Briggs & Stratton 494587

Lever-Governor
(Superseded to 691381)

$36.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 495611

Plate, Control Assy (Choke A Matic)
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 6

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

284A

Briggs & Stratton 94874

Screw, Hex Wash Hd
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

353A

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354A

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

422

Briggs & Stratton 224390

Bracket-Oil Fill

$

$

Not available

423

Briggs & Stratton 94903

Screw-Shoulder
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

507

Briggs & Stratton 398525

Terminal-Insulated
(Superseded to 691972)

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 1 left!

0

523

Briggs & Stratton 495230

Dipstick
(Superseded to 692014)

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 494241

$8.49

$

In Stock, Qty 20+

0

525A

Briggs & Stratton 495768

Tube-Oil Fill

$29.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 496113

Tube-Oil Fill
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

657

Briggs & Stratton 94906

Screw-Slotted Hex.
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94929

Screw, Hex Wash Hd
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

847A

Briggs & Stratton 490474

Fill Group-Oil

$

$

Not available

847

Briggs & Stratton 496415

Dipsticktube Assembly
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0
