28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 220000001 - 220999999) (2002) GEAR CASE ASSEMBLY Parts Diagram

24" Snow Thrower

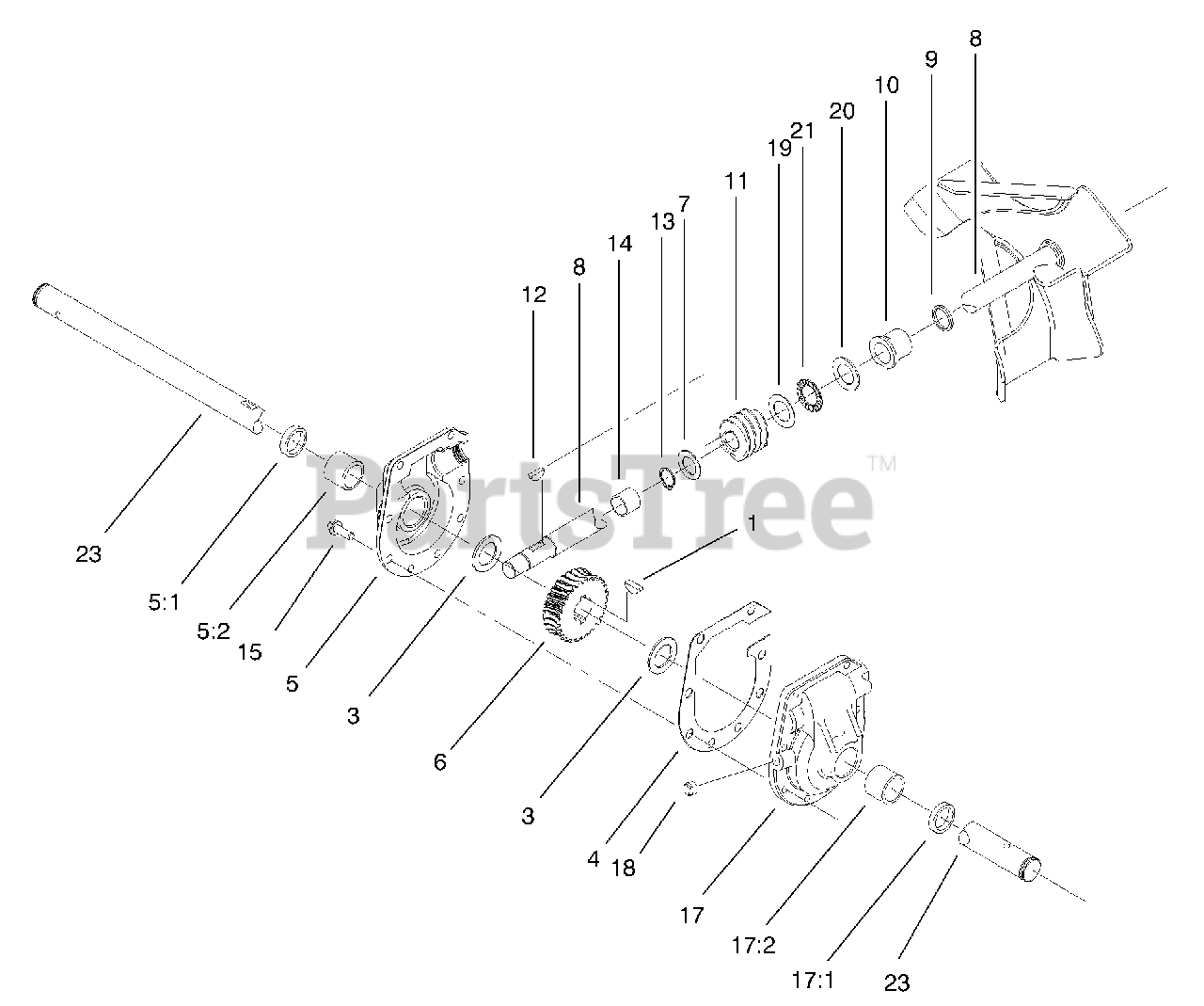

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3257-33

Key-Woodruff

$2.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 252-71

Washer-Thrust

$19.99

$

In Stock, Qty 6

0

4

Lawn-Boy 51-0460

Gasket-Gear Box

$9.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 14-2449

Case-RH Gear

$155.99

$

In Stock, only 2 left!

0

5:1

Lawn-Boy 7-0045

Seal-Oil

$17.99

$

Usually ships in 3-6 days

0

5:2

Lawn-Boy 256-237

Bushing

$15.99

$

In Stock, only 3 left!

0

6

Lawn-Boy 5-7180

Gear-Worm 27t

$183.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 3-8664

Washer-Thrust

$6.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 95-2675-03

Impeller

$

$

Not available

9

Lawn-Boy 237-87

Ring-Quad

$7.49

$

In Stock, Qty 9

0

10

Lawn-Boy 37-6560

Bushing-Input

$43.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 5-7170

Gear

$131.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 3257-23

Key-Woodruff

$7.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 256-32

Bushing

$10.99

$

In Stock, Qty 9

0

15

Lawn-Boy 32144-41

Screw-Taptite

$5.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 14-2459

Case-LH Gear

$155.99

$

In Stock, only 2 left!

0

17:1

Lawn-Boy 7-0045

Seal-Oil

$17.99

$

Usually ships in 3-6 days

0

17:2

Lawn-Boy 256-237

Bushing

$15.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 281-1

Plug-Pipe, SQH

$5.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 252-80

Washer-Thrust

$9.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 257-3

Washer-Thrust

$15.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 252-76

Bearing-Thrust

$21.99

$

In Stock, Qty 6

0

23

Lawn-Boy 37-6801

Shaft-Auger

$205.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 7-0045

Seal-Oil

$17.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 256-237

Bushing

$15.99

$

In Stock, only 3 left!

0
