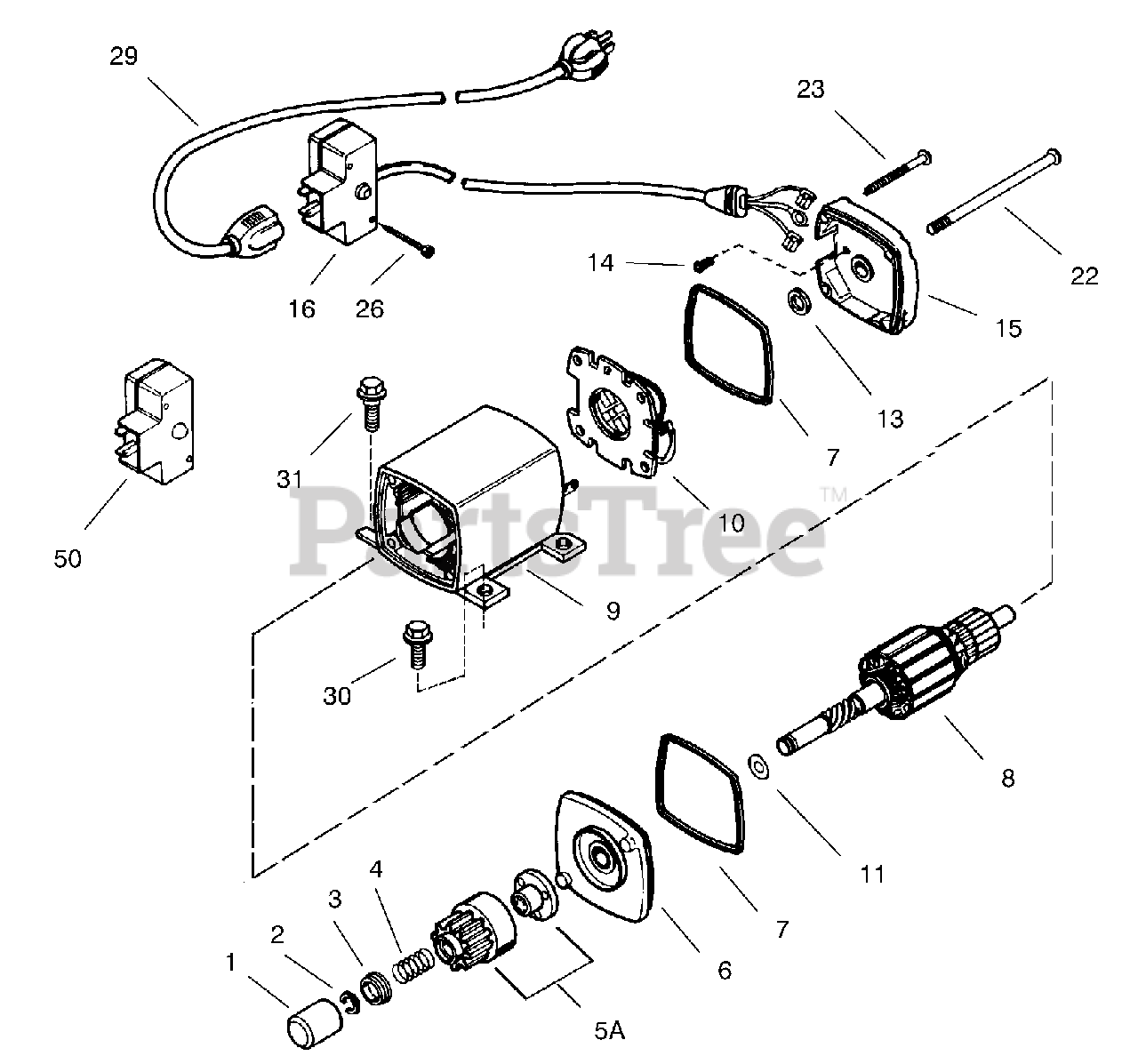

28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 220000001 - 220999999) (2002) ELECTRIC STARTER KIT ASSEMBLY (OPTIONAL) TECUMSEH NO. 33329D Parts Diagram

24" Snow Thrower

ELECTRIC STARTER KIT ASSEMBLY (OPTIONAL) TECUMSEH NO. 33329D Parts Diagram

  • Title
1

Lawn-Boy 33451

Dust Cover

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

2

Lawn-Boy 33842

Retainer Ring

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

3

Lawn-Boy 33430

Spring Retainer

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

4

Lawn-Boy 33431

Anti-drift Spring

Note: Obtain Parts from Tecumseh

$

$

Not available

5A

Lawn-Boy 37050

Gear and Nut (Incl. Ref.# 2)

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

6

Lawn-Boy 35449

Drive End Cap Asm. (Incl. Ref.# 7)

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

7

Lawn-Boy 35450

O-Ring

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

8

Lawn-Boy 35915

Armature

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

9

Lawn-Boy 35451A

Housing Assembly

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

10

Lawn-Boy 35452A

Brush Card Assembly

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

11

Lawn-Boy 35911

Thrust Washer

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

13

Lawn-Boy 590500

Thrust Washer

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

14

Lawn-Boy 33441

Ground Screw

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

15

Lawn-Boy 35453

Commutator End CapAsm.(Incl. Ref.# 7)

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

16

Lawn-Boy 35454

Switch Box Assembly (Incl. Ref# 26)

Note: Obtain Parts from Tecumseh

$

$

Not available

22

Lawn-Boy 35455

Case Bolt

Note: Obtain Parts from Tecumseh

$

$

Not available

23

Lawn-Boy 35456

Ground Screw

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

26

Lawn-Boy 650819

Screw

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

29

Lawn-Boy 32450B

Extension Cord

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

30

Lawn-Boy 30063

Screw-Torx

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

31

Lawn-Boy 650820

Screw

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

50

Lawn-Boy 730623

Switch Repair Kit

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable
