28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 220000001 - 220999999) (2002) CARBURETOR ASSEMBLY TECUMSEH NO. 640052 Parts Diagram

24" Snow Thrower

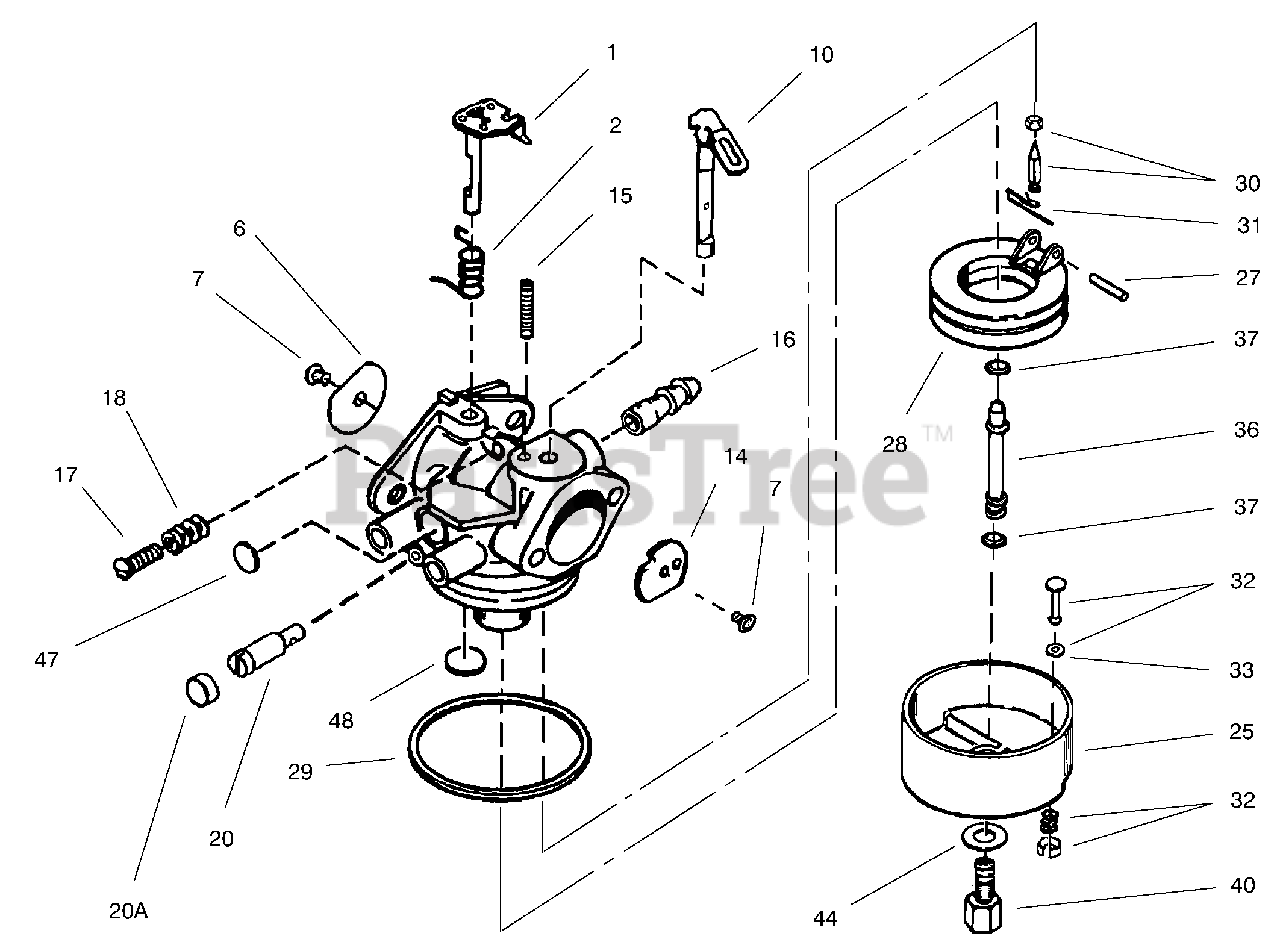

CARBURETOR ASSEMBLY TECUMSEH NO. 640052 Parts Diagram

  • Title
1

Lawn-Boy 631776A

Shaft/Lever-Throttle

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

2

Lawn-Boy 631970

Spring-ThrottleReturn

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

6

Lawn-Boy 631778

Shutter-Throttle

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

7

Lawn-Boy 650506

Screw-Shutter

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

10

Lawn-Boy 632112

Shaft/Lever-Choke

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

14

Lawn-Boy 632174

Shutter-Choke

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

15

Lawn-Boy 630735

Spring-ChokePositioning

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

16

Lawn-Boy 632164

Fitting-Fuel Inlet

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

17

Lawn-Boy 650417

Screw-IdleRegulating

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

18

Lawn-Boy 630766

Spring-Tension

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

20

Lawn-Boy 640016

Screw-IdleAdjustment

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

21

Lawn-Boy 640053

Cap-Screw Idler Adj.

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

25

Lawn-Boy 631951

Float Bowl Assembly (Incl. Ref. #32 & 33)

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

27

Lawn-Boy 631024

Shaft-Float

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

28

Lawn-Boy 632019

Float-Carburetor

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

29

Lawn-Boy 631028

Gasket-Bowl toBody

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

30

Lawn-Boy 631021

Inlet Needle, Seat &Clip Asm (Incl. Ref. #31)

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

31

Lawn-Boy 631022

Clip-Inlet Needle

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

32

Lawn-Boy 27136A

Drain Assembly (Incl. Ref. #33)

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

33

Lawn-Boy 27554

Gasket-Bowl Drain

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

36

Lawn-Boy 640005

Main Nozzle Tube

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

37

Lawn-Boy 632547

O-Ring-Main NozzleTube

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

40

Lawn-Boy 640055

High Speed Bowl Nut

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

44

Lawn-Boy 27110

Gasket-Bowl toBody

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

47

Lawn-Boy 630748

Plug-Welch

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

48

Lawn-Boy 631027

Plug-Welch

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable
