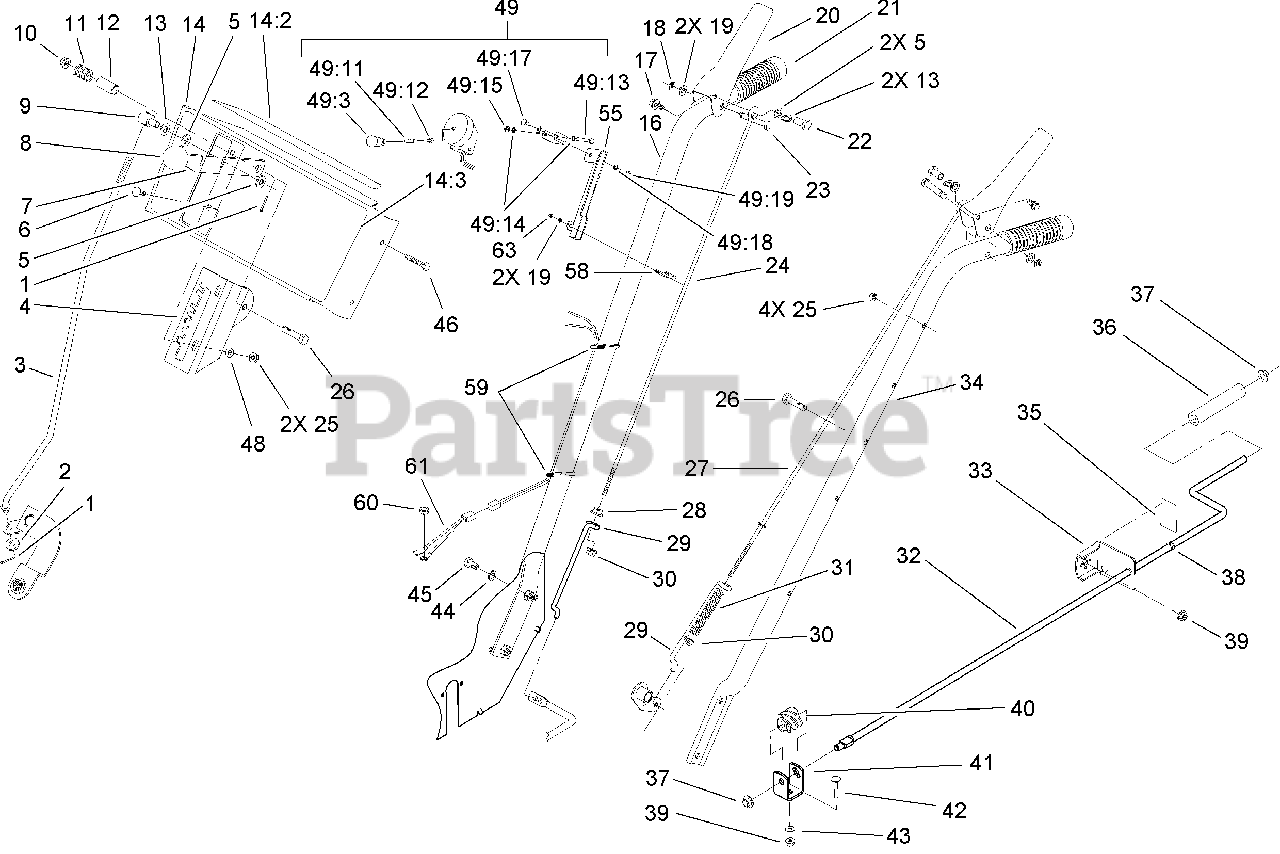

28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

24" Snow Thrower

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 94-9875

ROD-SHIFT

$

$

Not available

4

Lawn-Boy 99-1799-03

MOUNT-SPEED SELECTOR

$

$

Not available

5

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-8806-03

SELECTOR-SPEED

$12.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 101161

TRUNNION

$

$

Not available

10

$2.99

$

Usually ships in 3-6 days

0

11

$10.99

$

In Stock, only 1 left!

0

12

$10.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 612586

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

14

Lawn-Boy 105-2980

Control Panel ASM

$151.99

$

Usually ships in 3-6 days

0

14:2

Lawn-Boy 105-2977

Decal-Escutcheon, Back

$

$

Not available

14:3

Lawn-Boy 105-2982

Decal-Panel, Control

$

$

Not available

16

Lawn-Boy 94-8804-03

HANDLE-RIGHT

$

$

Not available

17

Lawn-Boy 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

18

Lawn-Boy 32151-73

RING-CLIP

$3.49

$

In Stock, Qty 6

0

19

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 94-8887-03

HANDLE-CONTROL

$

$

Not available

21

Lawn-Boy 74-1360

GRIP-HANDLE

$

$

Not available

22

Lawn-Boy 47-4990

POST-MOUNTING, LINKAGE

$27.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 52-5600

PIN-LEVER, CONTROL

$28.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 94-8838

ROD-UPPER ENGAGE AUGER

$23.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 94-8837

ROD-UPPER TRACTION

$34.99

$

Usually ships in 3-6 days

0

28

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 94-8836

ROD-LOWER TRACTION

$

$

Not available

30

$2.99

$

In Stock, Qty 20+

0

31

$18.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 40-8270

ROD-CONTROL, CHUTE

$161.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 25-6090

BRACKET-ROD, CHUTE
(Superseded to 12-7739)

$

$

Not available

34

Lawn-Boy 95-2695-03

LEFT HANDLE

$

$

Not available

35

Lawn-Boy 63-3510

DECAL-CHUTE DIRECTION

$5.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 20+

0

39

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Lawn-Boy 40-8250

GEAR-WORM, CHUTE

$15.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 40-8280

BRACKET-WORM

$18.99

$

In Stock, only 1 left!

0

42

Lawn-Boy 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

43

Lawn-Boy 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 32144-14

SCREW-HWH

$4.99

$

In Stock, only 3 left!

0

46

Lawn-Boy 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

48

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 54-9871

HEADLAMP ASM

$

$

Not available

49:3

Lawn-Boy 218-16

BEAM-SEALED

$

$

Not available

49:11

Lawn-Boy 218-553

SWITCH ASM
(Superseded to 110-6269)

$

$

Not available

49:12

Lawn-Boy 92-6033

BOOT-SWITCH

$

$

Not available

49:13

Lawn-Boy 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

49:14

Lawn-Boy 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

49:15

Lawn-Boy 32128-29

LOCKNUT-FLANGE

$2.49

$

Usually ships in 3-6 days

0

49:17

Lawn-Boy 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

49:18

Lawn-Boy 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

49:19

Lawn-Boy 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

55

Lawn-Boy 68-7110-03

LIGHT MOUNT ASM

$126.99

$

Usually ships in 3-6 days

0

58

$

$

Not available

59

Lawn-Boy 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

60

Lawn-Boy 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

61

Lawn-Boy 54-9810

WIRE ASM

$24.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

99

Lawn-Boy 99-9300

CORD-EXTENSION
(Superseded to 117-0020)

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0
