28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) CARBURETOR NO. 640052 TECUMSEH HMSK80-155635V Parts Diagram

24" Snow Thrower

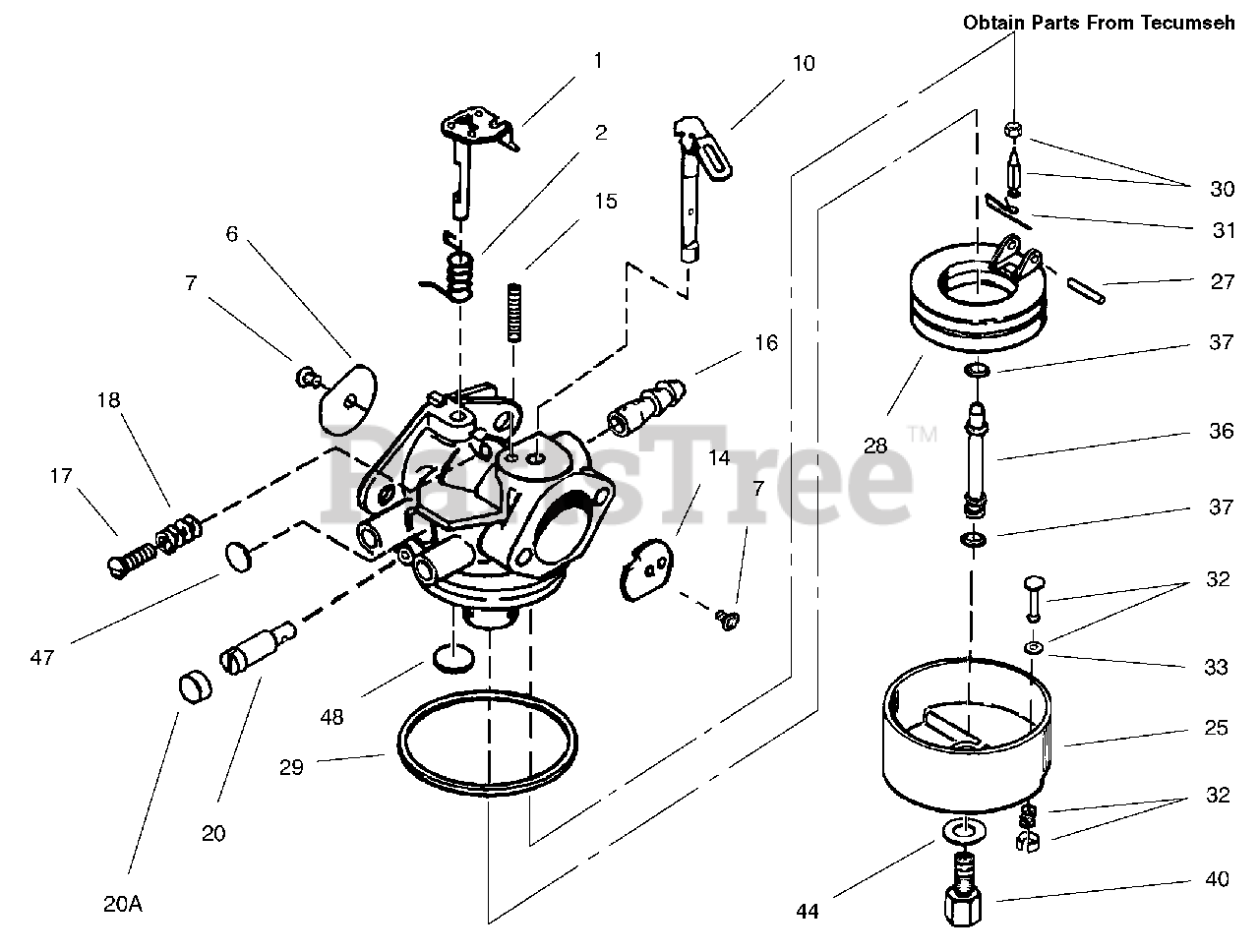

CARBURETOR NO. 640052 TECUMSEH HMSK80-155635V Parts Diagram

  • Title

1

Lawn-Boy 631776A

Throttle Shaft and Lever ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 631970

Spring-Return, Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 631778

Shutter-Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 650506

Screw-Shutter

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

10

Lawn-Boy 632112

Choke Shaft and Lever ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 632174

Shutter-Choke

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 630735

Spring-Positioning, Choke

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 632164

Fitting-Fuel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 650417

Throttle Crack Screw / Idle Speed Screw

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 630766

Spring-Tension

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

20

Lawn-Boy 640016

Screw-Restrictor, Idle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

21

Lawn-Boy 640053

Cap-Screw, Idle Restrictor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25

Lawn-Boy 631951

Float Bowl Assembly (Incl. Ref. #32 & 33)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

27

Lawn-Boy 631024

Shaft-Float

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

28

Lawn-Boy 632019

Float

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

29

Lawn-Boy 631028

O-Ring-Bowl, Float

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 631021

Inlet Needle, Seat and Clip Asm (Incl. Ref. #31)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

31

Lawn-Boy 631022

Clip-Spring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

32

Lawn-Boy 27136A

Drain Assembly (Incl. Ref. #33)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

33

Lawn-Boy 27554

Gasket-Plunger, Drain

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

36

Lawn-Boy 640005

Tube-Nozzle, Main

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

37

Lawn-Boy 632547

O-Ring-Nozzle Tube, Main

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 640055

Nut-High Speed, Bowl

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

44

Lawn-Boy 27110

Washer-Bowl Nut

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

47

Lawn-Boy 630748

Plug-Welch, Idle Mixture Well

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 631027

Plug-Welch, Atmospheric Vent

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
