28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) AUGER AND HOUSING ASSEMBLY Parts Diagram

24" Snow Thrower

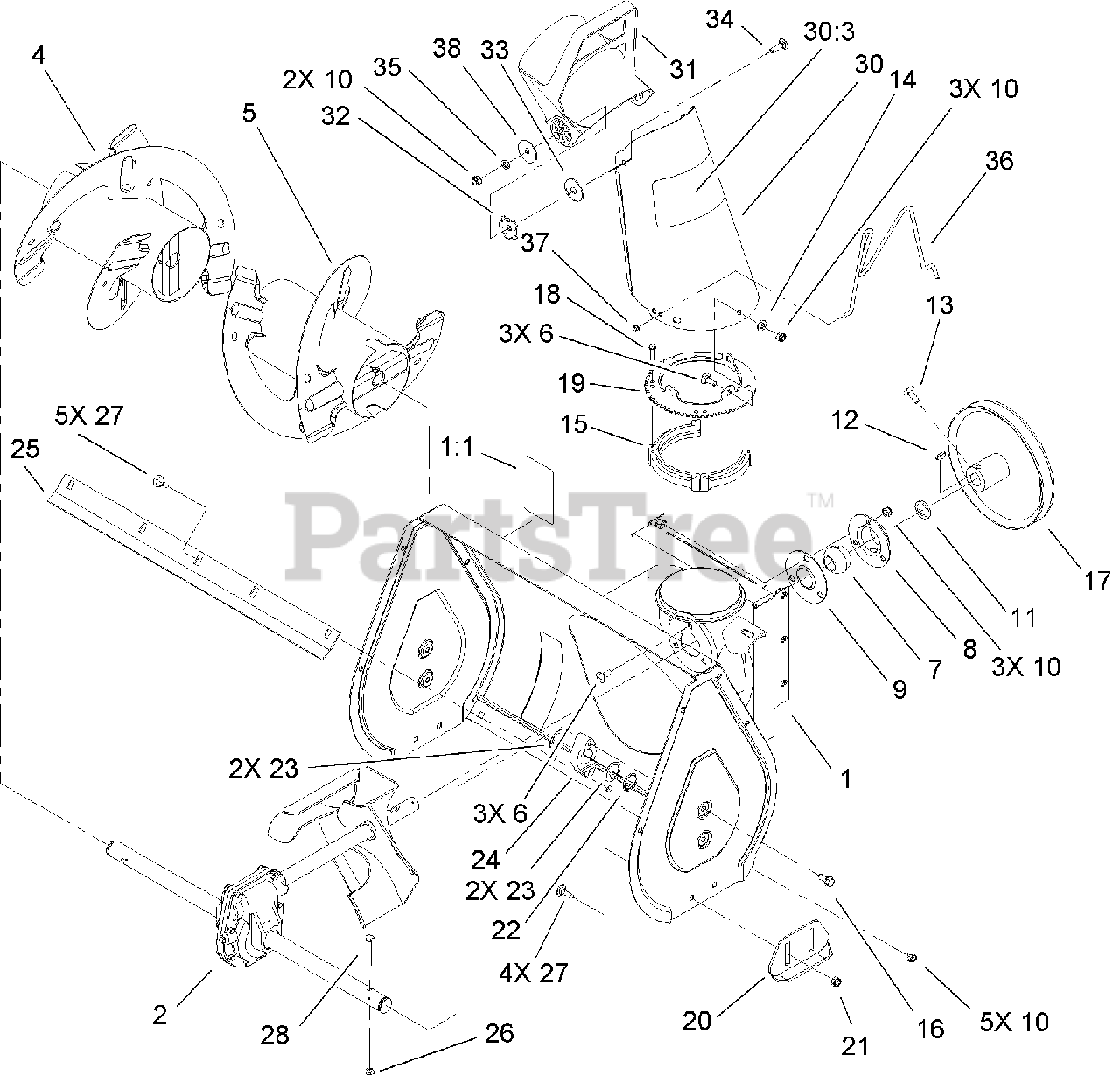

AUGER AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 104-9749

24 INCH AUGER HOUSING ASM

$

$

Not available

1:1

Lawn-Boy 53-7670

DECAL-WARNING, AUGER (only on: 38078)
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 95-2674

GEAR CASE ASM

$1263.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 74-1600-03

24 INCH RH AUGER ASM

$

$

Not available

5

Lawn-Boy 74-1590-03

24 INCH LH AUGER ASM

$336.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

7

Lawn-Boy 63-3450

BEARING-BALL

$23.99

$

In Stock, Qty 11

0

8

Lawn-Boy 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 11

0

9

Lawn-Boy 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 10

0

10

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

$9.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

13

Lawn-Boy 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 37-6490

RING-CHUTE, RETAINER

$19.99

$

In Stock, Qty 5

0

16

Lawn-Boy 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 95-2677

PULLEY-IMPELLER

$

$

Not available

18

Lawn-Boy 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 37-8941-03

RING-CHUTE

$76.99

$

Usually ships in 3-6 days

0

$32.99

$

In Stock, Qty 10

0

21

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

23

$7.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 37-6550

BEARING-AUGER
(Superseded to 136-8685)

$74.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 100-5472-02

Scraper Blade
(Superseded to 100-5472-01)

$109.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

27

Lawn-Boy 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 105-2979

Chute ASM

$

$

Not available

30:3

Lawn-Boy 105-2978

DECAL-DISCHARGE DANGER

$

$

Not available

31

Lawn-Boy 56-2680

CHUTE-DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

34

Lawn-Boy 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

35

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

36

Lawn-Boy 56-2670

WIRE-CHUTE

$21.99

$

Usually ships in 3-6 days

0

37

$5.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0
