28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 009900001 - 009999999) (1999) RECOIL STARTER #590749 (OPTIONAL) Parts Diagram

24" Snow Thrower

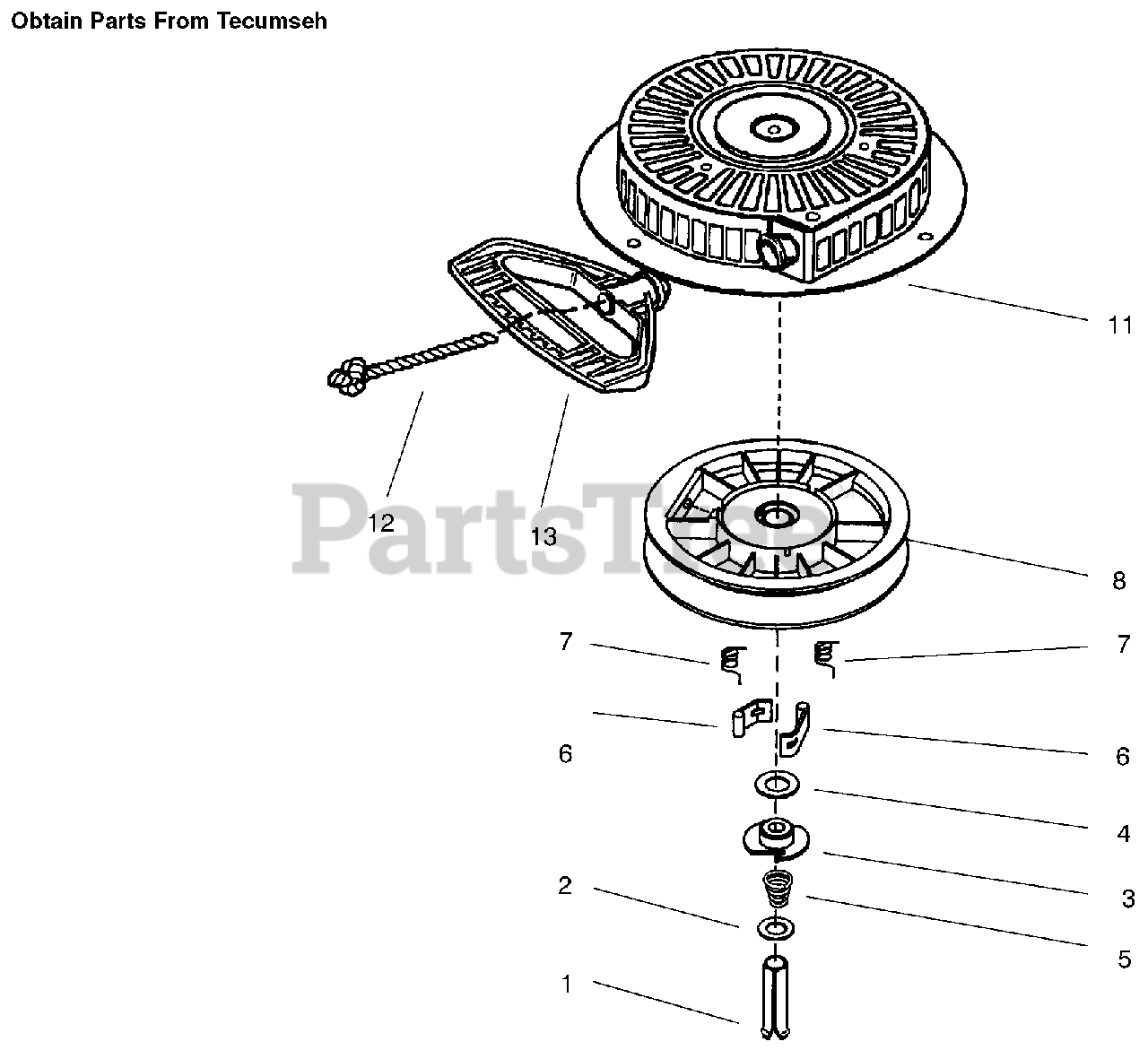

RECOIL STARTER #590749 (OPTIONAL) Parts Diagram

  • Title
1

Lawn-Boy 590599A

Pin-Spring (Incl. Ref. #4)

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Lawn-Boy 590679

Retainer

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Lawn-Boy 590678

Spring-Brake

$

$

Currently unavailable

6

Lawn-Boy 590680

Dog-Starter

$

$

Currently unavailable

7

Lawn-Boy 590412

Spring-Dog

$

$

Currently unavailable

8

Lawn-Boy 590682

Pulley & Rewind Spring Assembly

$

$

Currently unavailable

11

Lawn-Boy 590750

Starter Housing Asm

$

$

Currently unavailable

12

Lawn-Boy 590535

Rope-Starter

$

$

Currently unavailable

13

Lawn-Boy 590574

Handle-Mitten Grip

Note: Not Included with Starter

$

$

Currently unavailable
