28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 009900001 - 009999999) (1999) HANDLE ASSEMBLY Parts Diagram

24" Snow Thrower

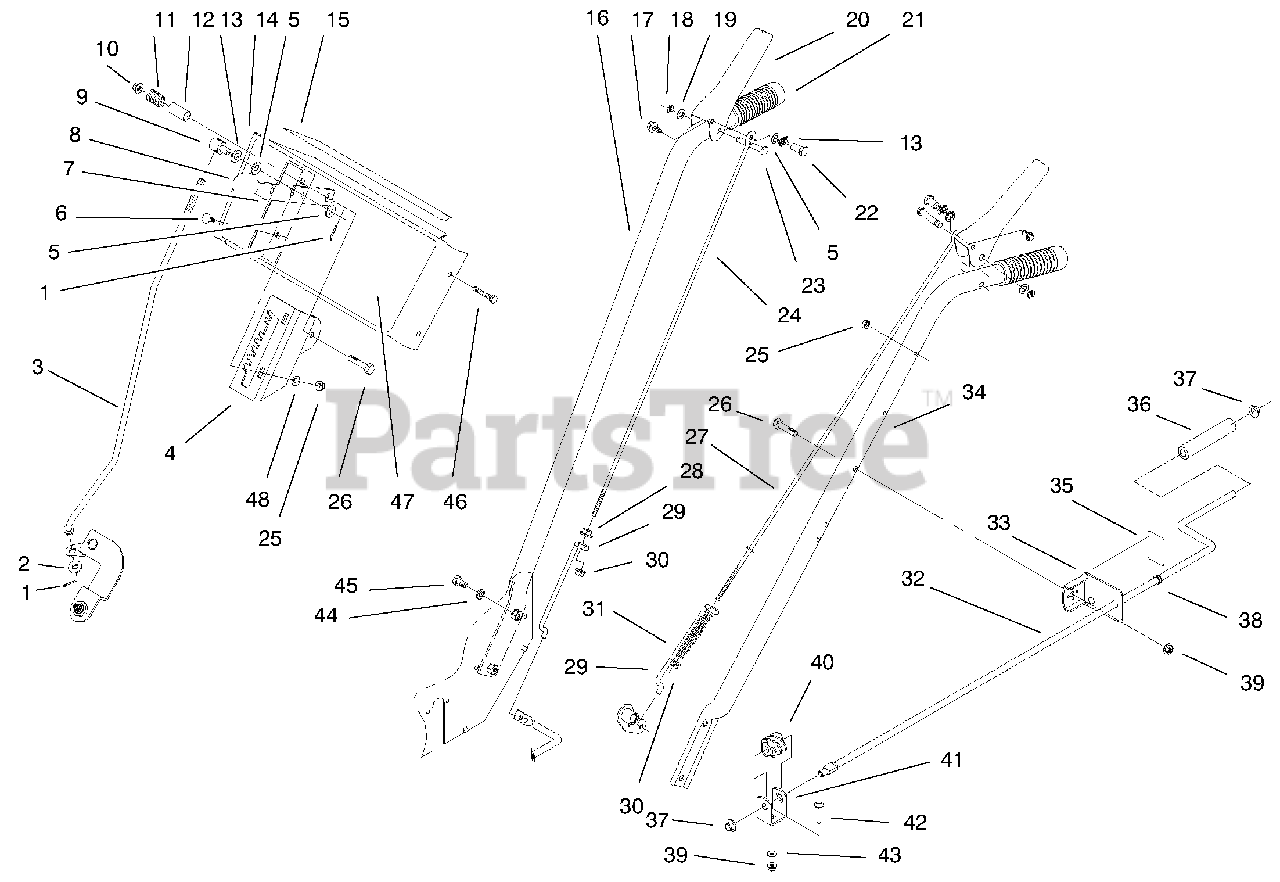

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3272-4

Cotter-Pin

$0.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3256-38

Washer-Flat

$0.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 94-9875

Rod-Shift

$

$

Not available

4

Lawn-Boy 99-1799-03

Mount-Speed Selector

$

$

Not available

5

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3229-11

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-8806-03

Selector-Speed

$12.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 110656

Trunnion
(Superseded to 101161)

$

$

Not available

10

Lawn-Boy 32128-13

Nut-Hex Flange

$2.99

$

Usually ships in 3-6 days

0

11

$10.99

$

In Stock, only 1 left!

0

12

$10.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 612586

Washer-Spring

$2.99

$

In Stock, only 4 left!

0

14

Lawn-Boy 99-5965

Panel-Control Asm

$

$

Not available

15

Lawn-Boy 95-2698

Decal-Escutcheon Back

$

$

Not available

16

Lawn-Boy 94-8804-03

Handle-Right

$

$

Not available

17

Lawn-Boy 3234-13

Screw-HHF

$1.49

$

In Stock, only 4 left!

0

18

Lawn-Boy 32151-73

Klip Ring

$3.49

$

In Stock, Qty 6

0

19

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 94-8887-03

Control Handle

$

$

Not available

21

Lawn-Boy 74-1360

Grip Handle

$

$

Not available

22

Lawn-Boy 47-4990

Post,Linkage Mounting

$27.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 52-5600

Control Lever Pin

$28.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 94-8838

Rod-Upper Engage Auger

$23.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 322-7

Screw-HH

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 94-8837

Rod-Upper Traction

$34.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 32128-33

Nut-Hex Flange

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 94-8836

Rod-Lower Traction

$

$

Not available

30

Lawn-Boy 32128-32

Nut-Hex, Flange

$2.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 38-4520

Comp Spring

$18.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 40-8270

Rod Chute Control

$161.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 25-6090

Chute Rod Brkt
(Superseded to 12-7739)

$

$

Not available

34

Lawn-Boy 95-2695-03

Left Handle (Black)

$

$

Not available

35

Lawn-Boy 63-3510

Decal-Chute Direction

$5.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 40-8230

Chute Control Grip

$16.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 3290-320

Retainer-Push On

$1.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 256-249

Bushing-Sfl
(Superseded to 5979)

$3.49

$

In Stock, Qty 20+

0

39

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

40

Lawn-Boy 40-8250

Worm Gear Chute

$15.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 40-8280

Worm Bracket

$18.99

$

In Stock, only 1 left!

0

42

Lawn-Boy 3230-22

Bolt S.n.

$2.49

$

In Stock, Qty 20+

0

43

Lawn-Boy 3290-238

Pyrmd Lockwasher

$3.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 3290-456

Washer-belleville

$2.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 32144-14

Screw-HWH

$4.99

$

In Stock, only 3 left!

0

46

Lawn-Boy 321-9

Screw-HH

$4.99

$

In Stock, only 2 left!

0

47

Lawn-Boy 99-3248

Decal Control Panel

$58.99

$

Usually ships in 3-6 days

0

48

$0.99

$

In Stock, Qty 20+

0
