28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 009900001 - 009999999) (1999) AUGER, HOUSING, & DISCHARGE CHUTE ASSEMBLY Parts Diagram

24" Snow Thrower

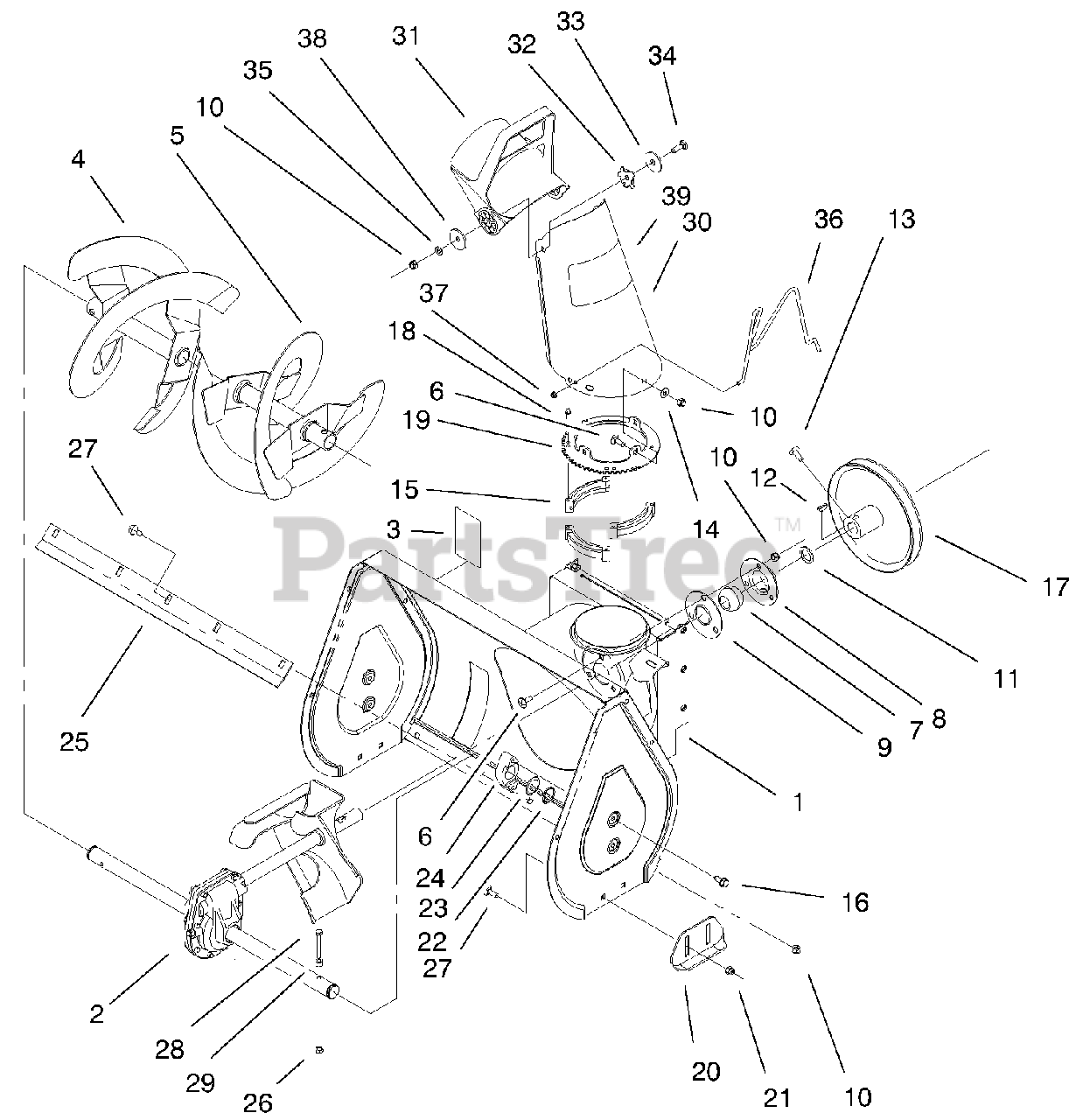

AUGER, HOUSING, & DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 98-2265

Auger Hsg ASM

$

$

Not available

2

Lawn-Boy 95-2674

Gear Case ASM

$1263.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 53-7670

Decal-Warning, Auger
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 95-2690-03

Auger Wa RH

$

$

Not available

5

Lawn-Boy 95-2691-03

Auger Wa LH

$

$

Not available

6

Lawn-Boy 3230-18

Carriage Bolt

$5.49

$

In Stock, Qty 5

0

7

Lawn-Boy 63-3450

Bearing-Ball

$23.99

$

In Stock, Qty 11

0

8

Lawn-Boy 26-6110

Flange-Cup, Bearing

$6.49

$

In Stock, Qty 11

0

9

Lawn-Boy 26-6120

Flange-Cup, Bearing

$4.49

$

In Stock, Qty 10

0

10

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

11

$9.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 3257-23

Key-Woodruff

$7.49

$

In Stock, Qty 7

0

13

Lawn-Boy 3242-4

Screw-SQH

$2.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 37-6490

Chute Ring Retainer

$19.99

$

In Stock, Qty 5

0

16

$2.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 95-2677

Pulley-Impeller

$

$

Not available

18

Lawn-Boy 27-0220

Spec Screw

$7.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 37-8941-03

Chute Ring

$76.99

$

Usually ships in 3-6 days

0

$32.99

$

In Stock, Qty 10

0

21

Lawn-Boy 32128-20

Nut-Hex, Flange

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 32151-36

Retaining Ring

$4.99

$

In Stock, only 4 left!

0

23

Lawn-Boy 5-1550

Check Washer

$7.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 37-6550

Auger Bearing
(Superseded to 136-8685)

$74.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 74-1420-02

Scraper Blade

$

$

Not available

26

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 12

0

27

Lawn-Boy 3230-1

Screw-CARR

$1.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 321-11

Capscrew

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 66-8010

Spacer-Hub, Impeller

$4.99

$

In Stock, Qty 13

0

30

Lawn-Boy 94-2793

ASM-Chute w/Decal

$

$

Not available

31

Lawn-Boy 56-2680

Chute Deflector

$23.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 55-8950

Friction Plate

$8.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 20-4320

Rubber Washer

$0.99

$

In Stock, Qty 8

0

34

Lawn-Boy 3230-22

Bolt S.n.

$2.49

$

In Stock, only 2 left!

0

35

Lawn-Boy 3290-456

Washer-Belleville

$2.99

$

In Stock, Qty 19

0

36

Lawn-Boy 56-2670

Chute Wire

$21.99

$

Usually ships in 3-6 days

0

37

$5.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 3256-68

Flat Washer

$2.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 94-8079

Decal-Danger

$11.99

$

Usually ships in 3-6 days

0
