28231 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 007900001 - 007999999) (1997) TRACTION ASSEMBLY Parts Diagram

22" Snow Thrower

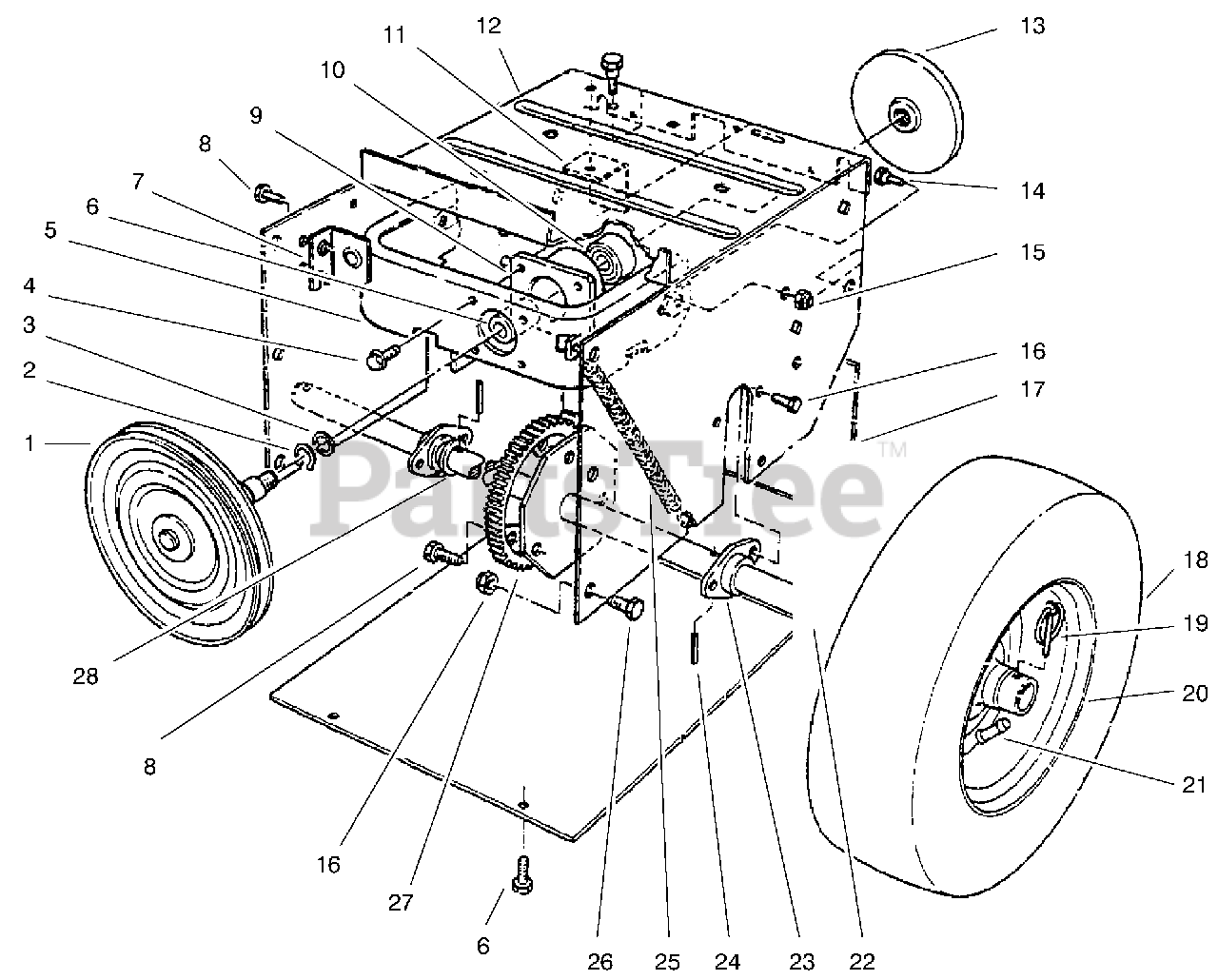

TRACTION ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 88-0850

PULLEY & DRIVE ASM

$120.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 32151-103

RING-SNAP

$3.49

$

In Stock, Qty 9

0

3

Lawn-Boy 252-80

WASHER-THRUST

$8.99

$

In Stock, Qty 9

0

$3.49

$

In Stock, Qty 11

0

5

Lawn-Boy 88-0550

Frame-Friction Plate
(Superseded to 88-0550-03)

$107.99

$

Usually ships in 3-6 days

0

6

$15.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 66-6790

BRACKET-MOUNT CLUTCH, FRONT

$7.49

$

Usually ships in 3-6 days

0

8

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 88-0560

HUB-FRAME, TRACTION

$90.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 37-9070

BRACKET-MOUNT CLUTCH, REAR

$13.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 37-8900-02

FRAME-TRACTION

$

$

Not available

13

Lawn-Boy 38-0800

PLATE-FRICTION

$90.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 37-6830-02

COVER-TRACTION, LOWER

$

$

Not available

18

$

$

Not available

19

Lawn-Boy 3290-243

PIN-LYNCH

$28.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 241-131

RIM-WHEEL

$223.99

$

In Stock, only 2 left!

0

21

$

$

Not available

22

Lawn-Boy 74-1350

SHAFT-AXLE

$182.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 37-6850

BEARING-AXLE

$28.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 37-8870

SPRING-PLATE,FRICTION

$39.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

27

Lawn-Boy 37-6520

GEAR-AXLE

$152.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0
