28231 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 007900001 - 007999999) (1997) REWIND STARTER NO. 590707 Parts Diagram

22" Snow Thrower

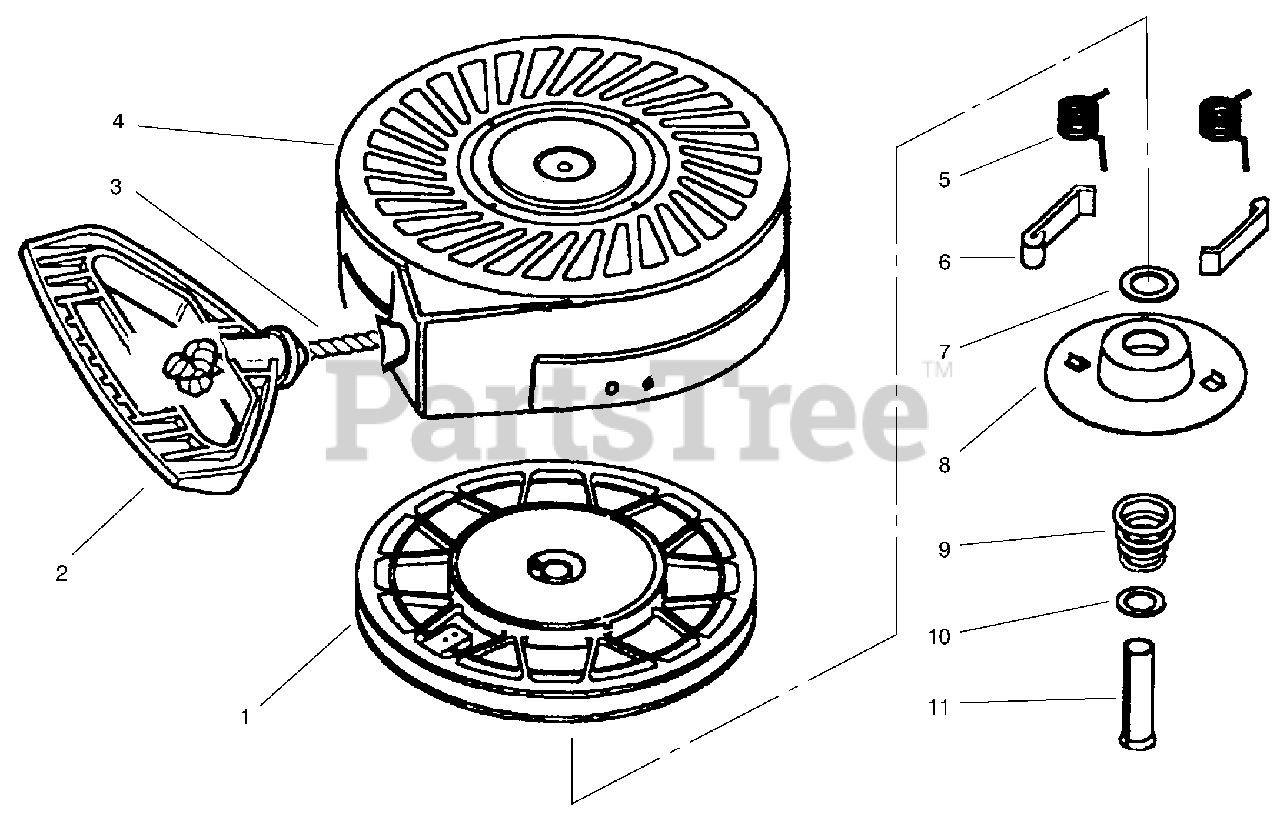

REWIND STARTER NO. 590707 Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Lawn-Boy 590574

Handle-Starter

$

$

Currently unavailable

3

Lawn-Boy 590535

Rope Starter

$

$

Currently unavailable

4

Lawn-Boy 590708

Housing Assembly

$

$

Currently unavailable

5

Lawn-Boy 590699

Dog Spring

$

$

Currently unavailable

6

Lawn-Boy 590698

Dog-Starter

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Lawn-Boy 590696

Retainer

$

$

Currently unavailable

9

Lawn-Boy 590697

Brake Spring

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Lawn-Boy 590599A

Pin-Spring (Incl. Ref. # 7)

$

$

Currently unavailable

Lawn-Boy 590707

Rewind Starter

Note: Not Illustrated

$

$

Currently unavailable
