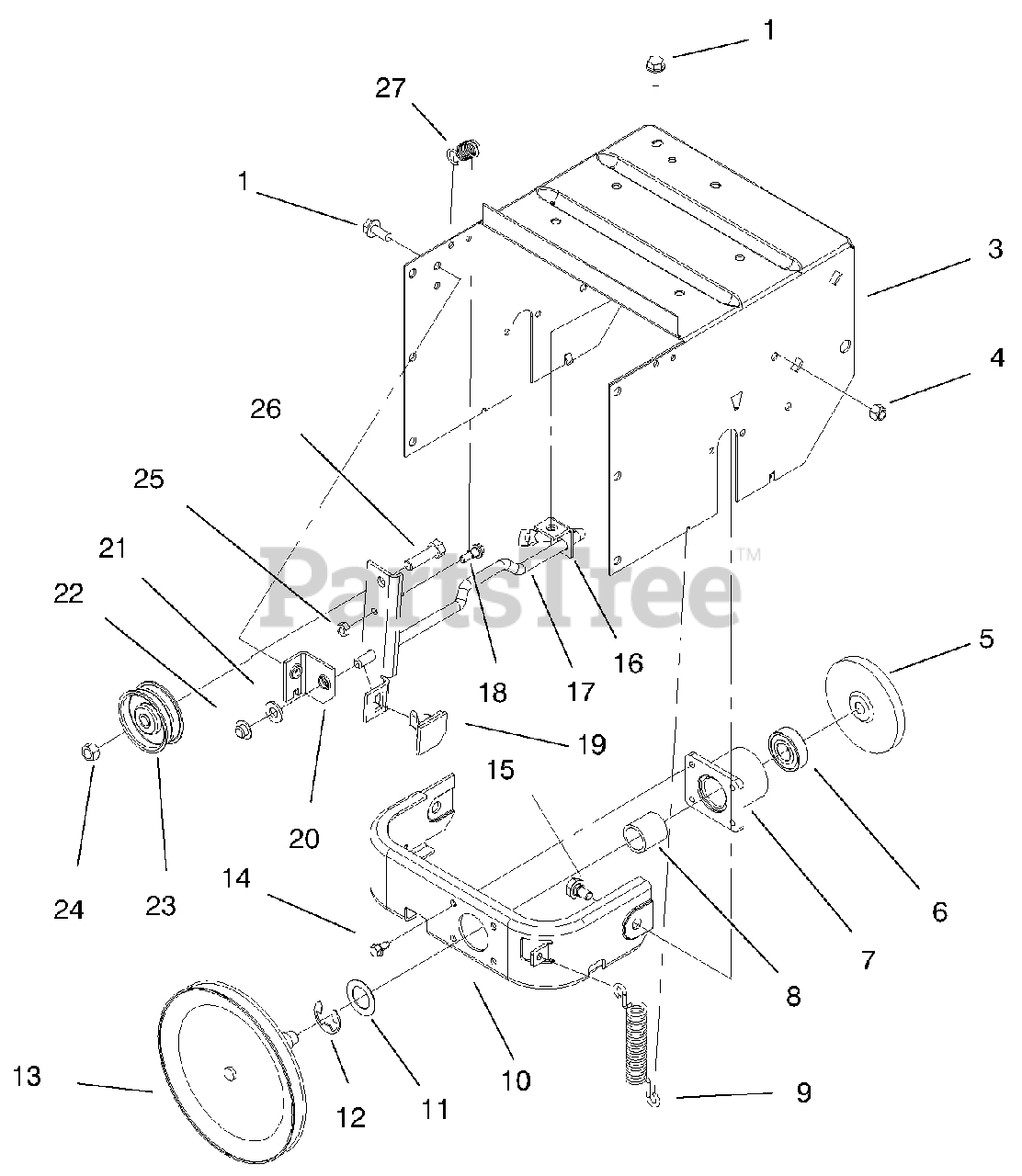

28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 200000001 - 200999999) (2000) TRACTION ASSEMBLY Parts Diagram

22" Snow Thrower

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 32144-70

Screw-HH

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 37-8900-02

Frame-Traction

$

$

Not available

4

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 38-0800

Plate-Friction

$106.99

$

In Stock, Qty 6

0

6

Lawn-Boy 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 88-0560

Hub-Frame, Traction

$104.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 256-322

Bushing

$16.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 37-8870

Spring-Plate,Friction

$46.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 88-0550-03

Frame-Front

$

$

Not available

11

Lawn-Boy 252-80

Bearing-Thrust

$9.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 32151-103

Ring-Snap

$3.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 88-0850

Pulley & Drive ASM

$137.99

$

In Stock, Qty 5

0

14

Lawn-Boy 12-3270

Screw

$3.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 37-8770

Bolt-Shoulder

$1.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 37-9070

Bracket-Mount Clutch, Rear

$15.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 40-6511-03

Rod-Clutch, Auger

$

$

Not available

18

Lawn-Boy 42-3560

Bolt-Shoulder

$5.99

$

In Stock, Qty 17

0

19

Lawn-Boy 66-8060

Pad-Brake

$18.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 66-6790

Bracket-Mount Clutch, Front

$8.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 3290-320

Retainer-Push On

$1.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 3-4244

Pulley-Idler

$27.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 3296-59

Nut-Lock Ni
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 3296-56

Nut-Lock Ni

$2.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 323-29

Screw-HH

$0.99

$

In Stock, Qty 15

0

27

Lawn-Boy 53-7570

Spring

$16.99

$

In Stock, only 1 left!

0
