28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 009900001 - 009999999) (1999) TRACTION ASSEMBLY Parts Diagram
22" Snow Thrower

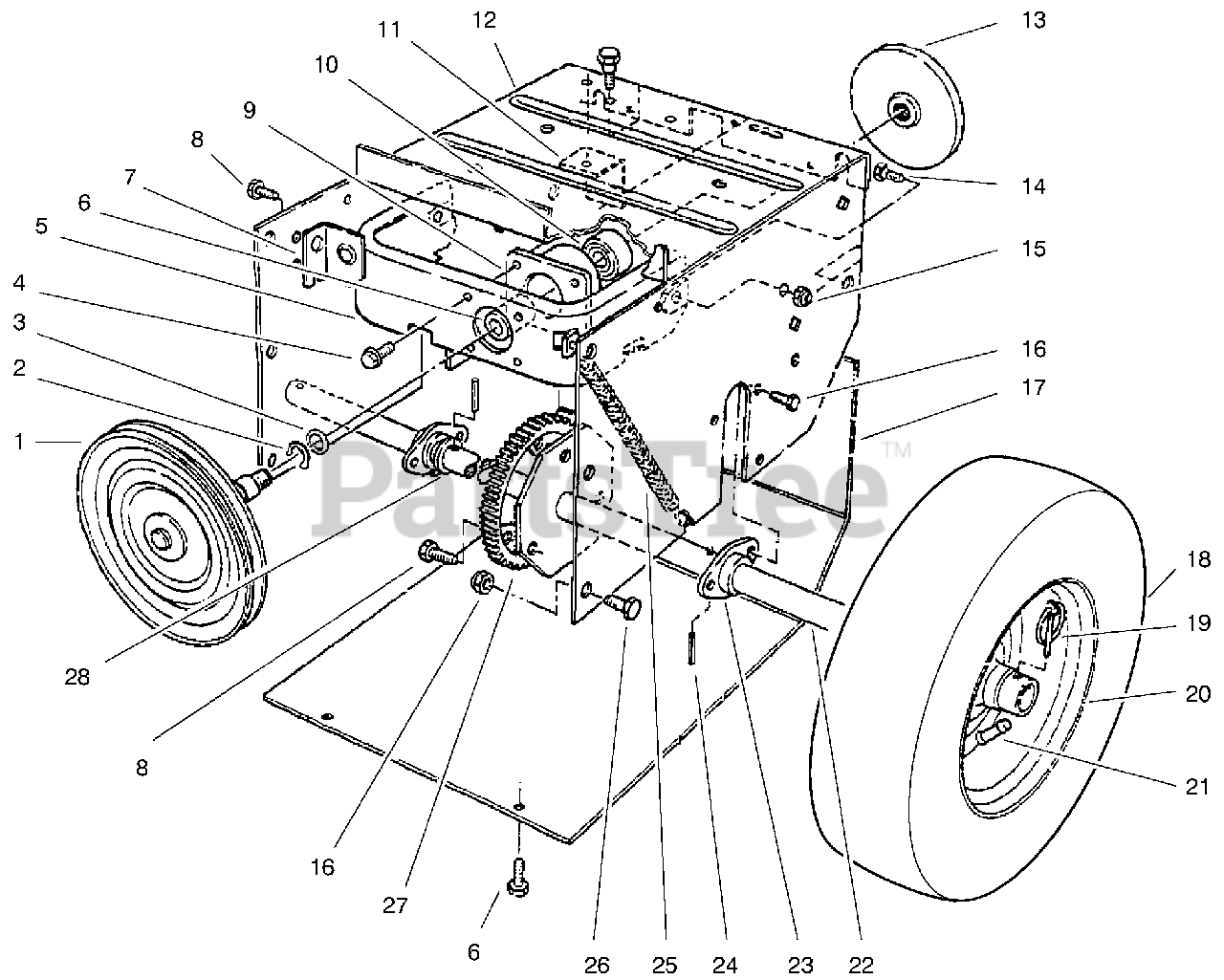

TRACTION ASSEMBLY Parts Diagram
Lawn-Boy 88-0850
$137.99
$
Lawn-Boy 32151-103
$3.49
$
Lawn-Boy 252-80
$9.99
$
Lawn-Boy 12-3270
$3.49
$
Lawn-Boy 88-0550-03
$
$
Not available
Lawn-Boy 256-322
$16.99
$
Lawn-Boy 66-6790
$8.49
$
Lawn-Boy 32144-70
$2.99
$
Lawn-Boy 88-0560
$104.99
$
Lawn-Boy 38-7820
$13.99
$
Lawn-Boy 37-9070
$15.99
$
Lawn-Boy 37-8900-02
$
$
Not available
Lawn-Boy 38-0800
$106.99
$
Lawn-Boy 37-8770
$1.49
$
Lawn-Boy 3296-29
$2.49
$
Lawn-Boy 32144-4
$1.49
$
Lawn-Boy 37-6830-02
$
$
Not available
Lawn-Boy 700457
$
$
Not available
$10.99
$
Lawn-Boy 241-131
$253.99
$
Lawn-Boy 232-50
$
$
Not available
Lawn-Boy 74-1350
$
$
Not available
Lawn-Boy 37-6850
$32.99
$
Lawn-Boy 32121-31
$0.99
$
Lawn-Boy 37-8870
$46.99
$
Lawn-Boy 322-2
$2.99
$
Lawn-Boy 37-6520
$177.99
$
Lawn-Boy 3-8664
$6.49
$
