28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 009900001 - 009999999) (1999) REWIND STARTER NO. 590742 Parts Diagram

22" Snow Thrower

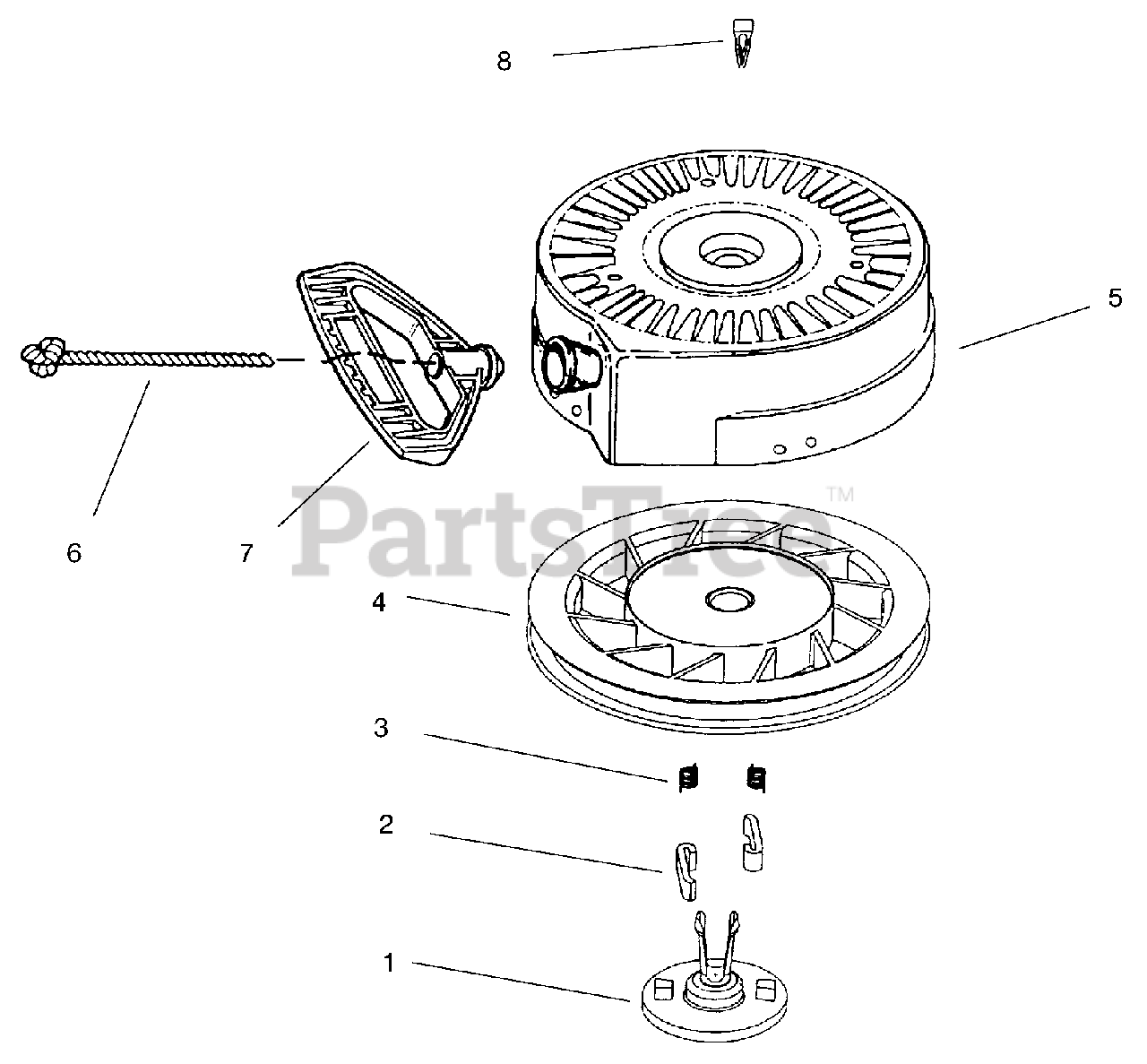

REWIND STARTER NO. 590742 Parts Diagram

  • Title
1

Lawn-Boy 590740

Retainer

$

$

Currently unavailable

2

Lawn-Boy 590616

Starter Dog

$

$

Currently unavailable

3

Lawn-Boy 590617

Dog Spring

$

$

Currently unavailable

4

Lawn-Boy 590645A

Pulley & Rewind Spring Asm.

$

$

Currently unavailable

5

Lawn-Boy 590647

Starter Housing Asm.

$

$

Currently unavailable

6

Lawn-Boy 590535

Starter Rope

$

$

Currently unavailable

7

Lawn-Boy 590574

Mitten Grip Handle

$

$

Currently unavailable

8

Lawn-Boy 590741

Locking Tab

$

$

Currently unavailable
