28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 009900001 - 009999999) (1999) ENGINE TECUMSEH MODEL HSSK50-67390S Parts Diagram

22" Snow Thrower

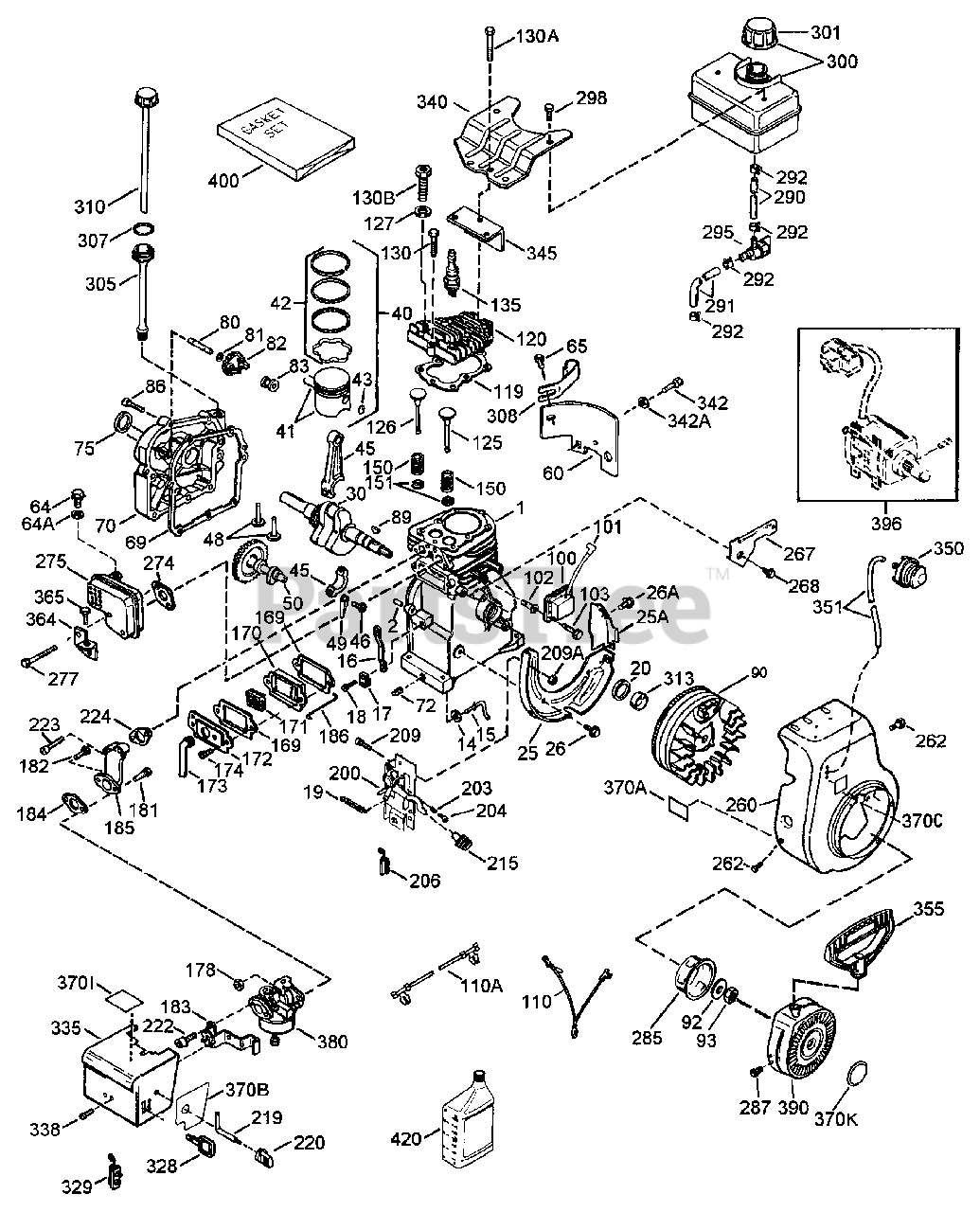

ENGINE TECUMSEH MODEL HSSK50-67390S Parts Diagram

  • Title

1

Lawn-Boy 36469A

Cylinder Assembly (Incl. Ref. #2, 20, 72 & 125)

$

$

Currently unavailable

2

Lawn-Boy 26727

Pin-Dowel

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer-Flat

$

$

Currently unavailable

15

Lawn-Boy 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

16

Lawn-Boy 31510

Lever-Governor

$

$

Currently unavailable

17

Lawn-Boy 31335

Clamp-Governor Lever

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw-Torx

$

$

Currently unavailable

19

Lawn-Boy 31426

Spring-Extension

$

$

Currently unavailable

20

Lawn-Boy 32600

Seal-Oil

$

$

Currently unavailable

25

Lawn-Boy 36552

Baffle-Blower Housing

$

$

Currently unavailable

25A

Lawn-Boy 35883

Extension-Baffle

$

$

Currently unavailable

26

Lawn-Boy 650802

Screw-Hex Washer Hd.

$

$

Currently unavailable

26A

Lawn-Boy 650926

Screw

$

$

Currently unavailable

30

Lawn-Boy 34740

Crankshaft Assembly

$

$

Currently unavailable

40

Lawn-Boy 36073

Piston-Pin & Ring Asm.. Standard

$

$

Currently unavailable

Lawn-Boy 36074

Piston-Pin & Ring Asm. .010" oversize

$

$

Currently unavailable

Lawn-Boy 36075

Piston-Pin & Ring Asm. .020" oversize

$

$

Currently unavailable

41

Lawn-Boy 36070

Piston & Pin Asm.. Standard (Incl. Ref. #43)

$

$

Currently unavailable

Lawn-Boy 36071

Piston & Pin Assembly .010" oversize (Incl. Ref. #43)

$

$

Currently unavailable

Lawn-Boy 36072

Piston & Pin Assembly .020" oversize (Incl. Ref. #43)

$

$

Currently unavailable

42

Lawn-Boy 36076

Ring Set-Piston Std.

$

$

Currently unavailable

Lawn-Boy 36077

Ring Set-Piston .010" oversize

$3.23

$

Usually ships in 3-6 days

0

Lawn-Boy 36078

Ring Set-Piston .020" oversize

$

$

Currently unavailable

43

Lawn-Boy 20381

Ring-Piston Pin Retaining

$

$

Currently unavailable

45

Lawn-Boy 32875A

Connecting Rod Assembly (Incl. Ref. #46 & 49)

$

$

Currently unavailable

46

Lawn-Boy 32610A

Bolt-Connecting Rod

$

$

Currently unavailable

48

Lawn-Boy 27241

Lifter-Valve

$

$

Currently unavailable

49

Lawn-Boy 32654

Dipper-Oil

$

$

Currently unavailable

50

Lawn-Boy 33158

Camshaft

$

$

Currently unavailable

60

Lawn-Boy 29745

Extension-Blower

$

$

Currently unavailable

64

Lawn-Boy 30063

Screw-Hex Washer Hd.

$

$

Currently unavailable

64A

Lawn-Boy 8345

Washer-Flat

$

$

Currently unavailable

65

Lawn-Boy 650128

Screw-Hex Hd.

$

$

Currently unavailable

69

Lawn-Boy 27677A

Gasket-Cylinder Cover

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

70

Lawn-Boy 34674C

Cover-Cylinder (Incl. Ref. #75 & 80)

$

$

Currently unavailable

72

Lawn-Boy 27642

Plug-Pipe

$

$

Currently unavailable

75

Lawn-Boy 27897

Seal-Oil

$

$

Currently unavailable

80

Lawn-Boy 30574A

Shaft-Governor

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer-Flat

$

$

Currently unavailable

82

Lawn-Boy 30591

Gear-Governor (Incl. Ref. #81)

$

$

Currently unavailable

83

Lawn-Boy 30588A

Spool-Governor

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw-Hex Hd.

$

$

Currently unavailable

89

Lawn-Boy 610961

Key-Flywheel

$

$

Currently unavailable

90

Lawn-Boy 611199

Flywheel-w/Ring Gear

$

$

Currently unavailable

92

Lawn-Boy 650815

Washer-Belleville

$

$

Currently unavailable

93

Lawn-Boy 650816

Nut-Flywheel

$

$

Currently unavailable

100

Lawn-Boy 34443B

Solid State Assembly

$

$

Currently unavailable

101

Lawn-Boy 610118

Cover-Spark Plug

$

$

Currently unavailable

102

Lawn-Boy 651024

Stud

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw-Torx

$

$

Currently unavailable

110

Lawn-Boy 35182

Wire-Ground

$

$

Currently unavailable

110A

Lawn-Boy 36874

Ground Wire

$

$

Currently unavailable

119

Lawn-Boy 36443

Gasket-Cylinder Head

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

120

Lawn-Boy 36441

Head-Cylinder (Incl. Ref. #131)

$

$

Currently unavailable

125

Lawn-Boy 36471

Valve-Exhaust Standard (Incl. Ref. #151)

$

$

Not available

Lawn-Boy 36472

Valve-Exhaust 1/32" oversize (Incl. Ref. #151)
(Superseded to 742719)

$

$

Not available

126

Lawn-Boy 32644A

Valve-Intake Standard (Incl. Ref. #151)

$

$

Currently unavailable

Lawn-Boy 32645A

Valve-Intake 1/32" oversize (Incl. Ref. #151)

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer-Flat

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw-Hex Flange Hd.

$

$

Currently unavailable

130A

Lawn-Boy 650694A

Screw-Hex Flange Hd.

$

$

Currently unavailable

130B

Lawn-Boy 650818

Screw-Special

$

$

Currently unavailable

135

Lawn-Boy 35395

Plug-Spark (Champion RJ-19LM or equivalent)

$

$

Currently unavailable

150

Lawn-Boy 31672

Spring-Valve

$

$

Currently unavailable

151

Lawn-Boy 31673

Cap-Valve Spring
(Superseded to 742357)

$

$

Not available

169

Lawn-Boy 27234A

Gasket-Valve Cover

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

170

Lawn-Boy 27666

Body-Valve Cover
(Superseded to 704563)

$169.99

$

Usually ships in 3-6 days

0

171

Lawn-Boy 31410

Element-Valve Body

$

$

Currently unavailable

172

Lawn-Boy 34146

Cover-Breather

$

$

Currently unavailable

173

Lawn-Boy 35350

Tube-Breather

$

$

Currently unavailable

174

Lawn-Boy 650783

Screw-Hex Hd.

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lockwasher

$

$

Currently unavailable

181

Lawn-Boy 650870

Screw-Hex Hd.

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw-Hex Hd.
(Superseded to 111-1250)

$

$

Not available

183

Lawn-Boy 34583A

Bracket-Choke

$

$

Currently unavailable

184

Lawn-Boy 26756

Gasket-Carburetor

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

185

Lawn-Boy 33691

Pipe-Intake

$

$

Currently unavailable

186

Lawn-Boy 32698

Link-Governor to Throttle

$

$

Currently unavailable

200

Lawn-Boy 36677

Control Assembly (Incl. Ref.# 203, 204, 206, 209 & 209A)
(Superseded to 742507)

$

$

Not available

203

Lawn-Boy 31342

Spring-Compression

$

$

Currently unavailable

204

Lawn-Boy 651029

Screw-Fil. Hd.

$

$

Currently unavailable

206

Lawn-Boy 610973

Terminal Assembly

$

$

Currently unavailable

209

Lawn-Boy 650139

Screw

$

$

Currently unavailable

209A

Lawn-Boy 30322

Lock Nut

$

$

Currently unavailable

215

Lawn-Boy 35440

Knob-Speed Control

$

$

Currently unavailable

219

Lawn-Boy 34582

Rod-Choke

$

$

Currently unavailable

220

Lawn-Boy 35438

Knob-Choke Control
(Superseded to 742440)

$

$

Not available

222

Lawn-Boy 28820

Screw-Fil. Hd.

$

$

Currently unavailable

223

Lawn-Boy 650664

Screw-Fil Hd.

$

$

Currently unavailable

224

Lawn-Boy 33673A

Gasket-Intake

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

260

Lawn-Boy 35656A

Housing-Blower

$

$

Currently unavailable

262

Lawn-Boy 650737

Screw-Hex Hd.

$

$

Currently unavailable

267

Lawn-Boy 34212

Bracket-Hold Down

$

$

Currently unavailable

268

Lawn-Boy 30200

Screw-HexWashers Hd.

$

$

Currently unavailable

274

Lawn-Boy 33670A

Gasket-Exhaust

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

275

Lawn-Boy 35771

Muffler (Incl. Ref.# 274)

$

$

Not available

277

Lawn-Boy 650327

Screw-Fil. Hd.

$

$

Currently unavailable

285

Lawn-Boy 36467A

Cup-Starter

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw-HexWasher Hd.

$

$

Currently unavailable

290

Lawn-Boy 30705

Line-Fuel

$

$

Currently unavailable

291

Lawn-Boy 29774

Line-Fuel

$

$

Currently unavailable

292

Lawn-Boy 26460

Clamp-Fuel Line

$

$

Currently unavailable

295

Lawn-Boy 35857

Valve-Shut-Off

$

$

Currently unavailable

298

Lawn-Boy 650665

Screw-HexWasher Hd.

$

$

Currently unavailable

300

Lawn-Boy 35584

Tank Assembly-Fuel (Incl. Ref. #292 & 301)
(Superseded to 704775)

$

$

Not available

301

Lawn-Boy 36246

Cap-Fuel Tank

$

$

Currently unavailable

305

Lawn-Boy 35554

Tube Asm..-Oil Fill

$

$

Currently unavailable

307

Lawn-Boy 35499

"O" Ring

$

$

Currently unavailable

308

Lawn-Boy 35539

Clip-Oil Fill

$

$

Currently unavailable

310

Lawn-Boy 35556

Dipstick

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer-Flywheel Key

$

$

Currently unavailable

328

Lawn-Boy 35062

Ignition Key

$

$

Currently unavailable

329

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

335

Lawn-Boy 35072

Cover-Carburetor

$

$

Currently unavailable

338

Lawn-Boy 650257

Screw-Pan Hd.

$

$

Currently unavailable

340

Lawn-Boy 36247

Plate-Fuel Tank

$

$

Currently unavailable

342

Lawn-Boy 30063

Screww/Belleville Washer

$

$

Currently unavailable

342A

Lawn-Boy 650675

Washer-Flat

$

$

Currently unavailable

345

Lawn-Boy 33344

Baffle-Heat

$

$

Currently unavailable

350

Lawn-Boy 570682A

Primer Assembly

$

$

Currently unavailable

351

Lawn-Boy 32180C

Line-Primer

$

$

Currently unavailable

355

Lawn-Boy 590574

Handle-Starter

$

$

Currently unavailable

364

Lawn-Boy 33333

Carburetor Cover Bracket
(Superseded to 740348)

$

$

Not available

365

Lawn-Boy 650735

Screw

$

$

Currently unavailable

370A

Lawn-Boy 36261

Decal-Lubrication

$

$

Currently unavailable

370B

Lawn-Boy 35282

Control Decal

$

$

Currently unavailable

370C

Lawn-Boy 36501

Primer Decal

$

$

Currently unavailable

370I

Lawn-Boy 37119

Warning Decal

$

$

Currently unavailable

370K

Lawn-Boy 36695

Starter Decal
(Superseded to 704857)

$

$

Not available

380

Lawn-Boy 640084A

Carburetor (Incl. Ref. #184)

$

$

Currently unavailable

390

Lawn-Boy 590742

Starter-Rewind

$

$

Currently unavailable

396

Lawn-Boy 33290E

Electric Starter Kit (110 V)(Optional)

$

$

Currently unavailable

400

Lawn-Boy 36444

Gasket Set (Incl. Parts Marked )(26756 (1), 27234A (2), 27272A (1), 27677A (1), 29673 (1), 36443 (1), 33670A (1), 33673A (1)

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

420

Lawn-Boy 730226

Oil-4 Cycle SAE 5W30 (Quart)

$

$

Currently unavailable
