28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 009900001 - 009999999) (1999) CARBURETOR NO. 640084A Parts Diagram

22" Snow Thrower

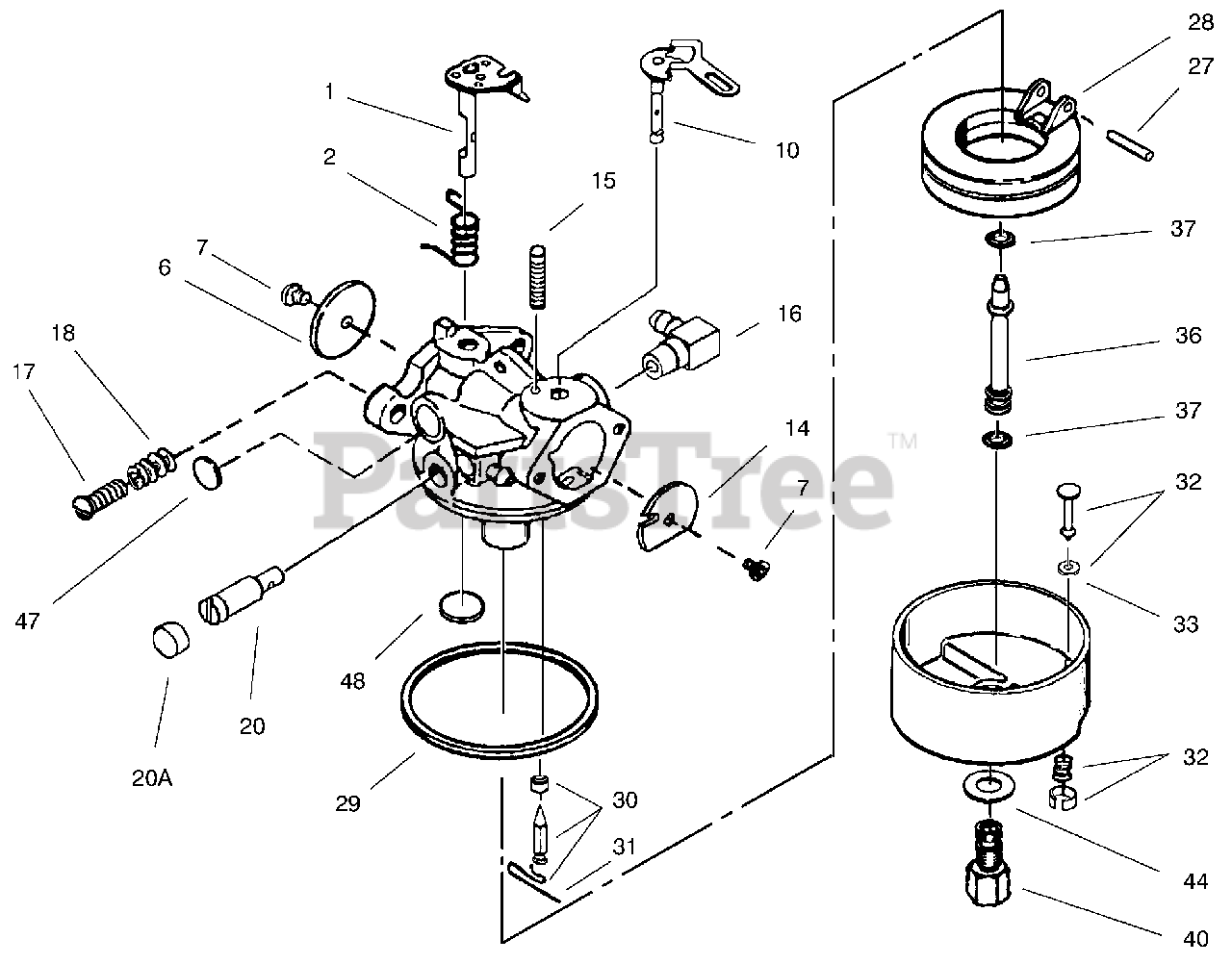

CARBURETOR NO. 640084A Parts Diagram

  • Title
1

Lawn-Boy 631615

Shaft & Lever Assembly

$

$

Currently unavailable

2

Lawn-Boy 631767

Throttle Shaft & Lever Asm.

$

$

Currently unavailable

6

Lawn-Boy 640070

Throttle Shutter

$

$

Currently unavailable

7

Lawn-Boy 650506

Screw-Shutter

$

$

Currently unavailable

10

Lawn-Boy 632108

Choke Shaft & Throttle Asm.

$

$

Currently unavailable

14

Lawn-Boy 631890

Shutter-Choke

$

$

Currently unavailable

15

Lawn-Boy 630735

Spring-Choke Positioning

$

$

Currently unavailable

16

Lawn-Boy 631807

Fuel Fitting

$

$

Currently unavailable

17

Lawn-Boy 651025

Screw-Idle

$

$

Currently unavailable

18

Lawn-Boy 630766

Spring-Tension

$

$

Currently unavailable

20

Lawn-Boy 640018

Screw-Idle Restrictor

$

$

Currently unavailable

20A

Lawn-Boy 640053

Cap-Idle Restrictor Screw

$

$

Currently unavailable

25

Lawn-Boy 631951

Float Bowl Asm. (Incl. Ref. # 32, 33)

$

$

Currently unavailable

27

Lawn-Boy 631024

Shaft-Float

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Lawn-Boy 631028

ORing-Float Bowl

$

$

Currently unavailable

30

Lawn-Boy 631021

Inlet Needle-Seat & Clip (Incl. Ref. # 31)

$

$

Currently unavailable

31

Lawn-Boy 631022

Clip-Spring

$

$

Currently unavailable

32

Lawn-Boy 27136A

Bowl Drain Asm.

$

$

Currently unavailable

33

Lawn-Boy 27554

Gasket-Drain Plunger

$

$

Currently unavailable

36

Lawn-Boy 632745

Main Nozzle Tube

$

$

Currently unavailable

37

Lawn-Boy 632547

ORing-Main Nozzle Tube

$

$

Currently unavailable

40

Lawn-Boy 640131

Nut-High Speed Bowl

$

$

Currently unavailable

44

Lawn-Boy 27110

Bowl Nut Washer

$

$

Currently unavailable

47

Lawn-Boy 630748

Welch Plug-Idle Mixture Well

$

$

Currently unavailable

48

Lawn-Boy 631027

Welch Plug-Atmospheric Vent

$

$

Currently unavailable
