28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 008900001 - 008999999) (1998) TRACTION ASSEMBLY Parts Diagram

22" Snow Thrower

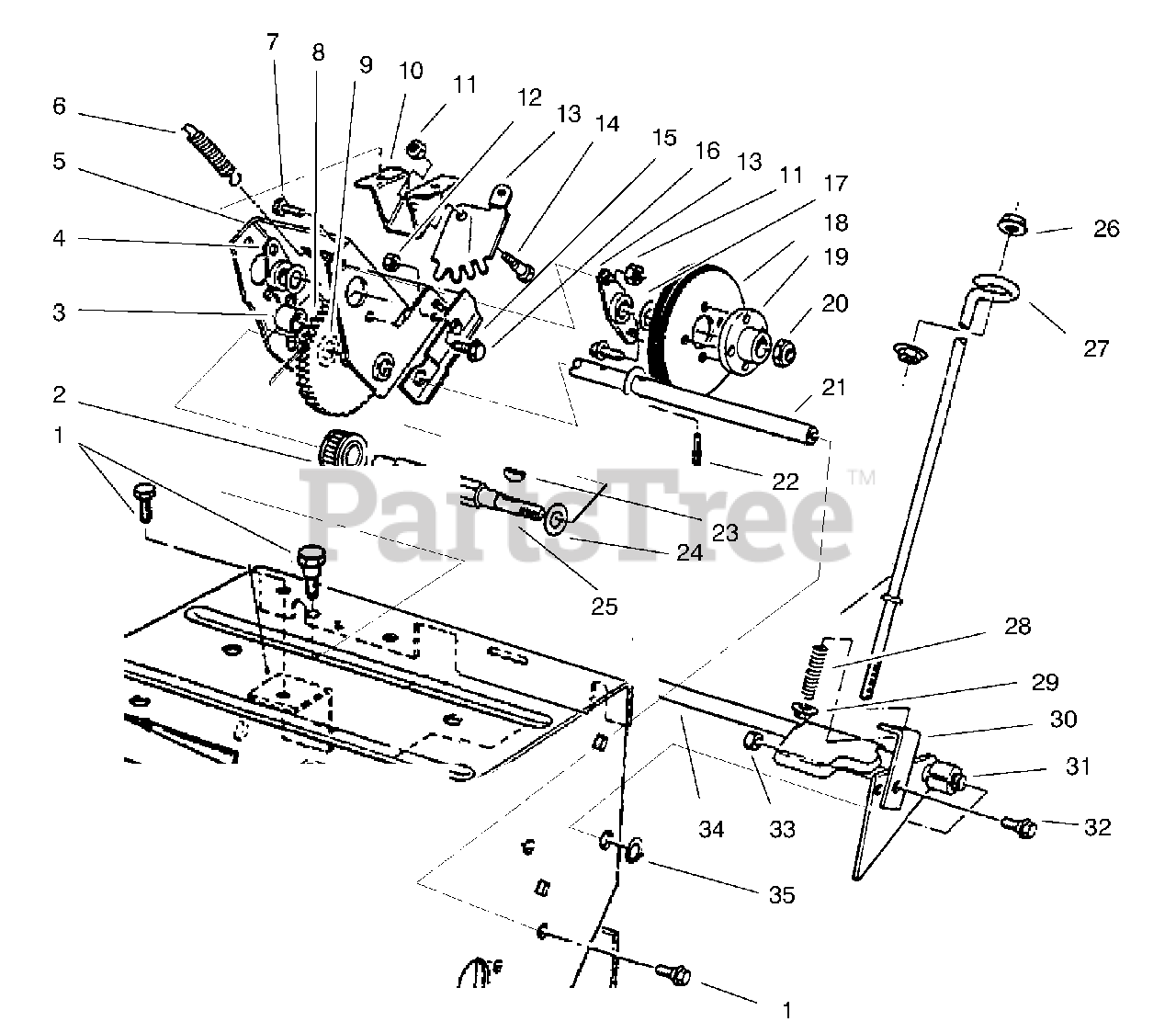

TRACTION ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 32144-70

Screw-Self Tap. Hex. Hd.

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 37-6500

Gear-Sliding

$

$

Not available

3

Lawn-Boy 256-86

Bushing

$19.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 20-1620

Bearing-Friction Wheel
(Superseded to 138-3142)

$37.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 39-1230

Bracket-Sliding

$

$

Not available

6

Lawn-Boy 37-8880

Spring-Traction Engage

$17.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 322-2

Screw-Hex. Hd.

$2.49

$

In Stock, Qty 13

0

8

Lawn-Boy 37-9160

Intermediate Gear & Bushing (Incl. Ref. #4)

$223.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 10-9280

Washer-Thrust

$3.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 37-8790

Mount-Quadrant Gear

$

$

Not available

11

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 18

0

12

Lawn-Boy 3296-16

Nut-Lock

$1.49

$

In Stock, only 4 left!

0

13

Lawn-Boy 37-8800

Quadrant-Gear

$23.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 37-8770

Bolt-Shoulder

$1.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 39-1250

Cam-Receiver

$21.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 321-4

Screw-Hex. Hd.

$1.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 36-4790

Washer-Thrust

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 37-6570

Wheel-Friction

$38.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 39-1520

Hub-Friction Wheel Mount

$76.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 3296-48

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 37-6760

Shaft-Pivot

$95.99

$

Usually ships in 3-6 days

0

22

$0.99

$

Usually ships in 3-6 days

0

$5.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 5-7570

Washer-Thrust

$8.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 37-6780

Shaft-Hex

$116.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 32128-33

Nut-Flange

$0.99

$

In Stock, Qty 6

0

27

Lawn-Boy 39-3060

Rod-Lower Traction

$39.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 38-4520

Spring-Compression

$15.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 32128-32

Nut-Flange

$2.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 38-4490

Bracket-Traction

$10.99

$

Usually ships in 3-6 days

0

31

$

$

Not available

32

Lawn-Boy 40-8350

Screw-Shoulder

$7.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 43-7310

Traction Engagement Asm.
(Superseded to 43-7310-03)

$77.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0
