28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 007900001 - 007999999) (1997) TRACTION ASSEMBLY Parts Diagram

22" Snow Thrower

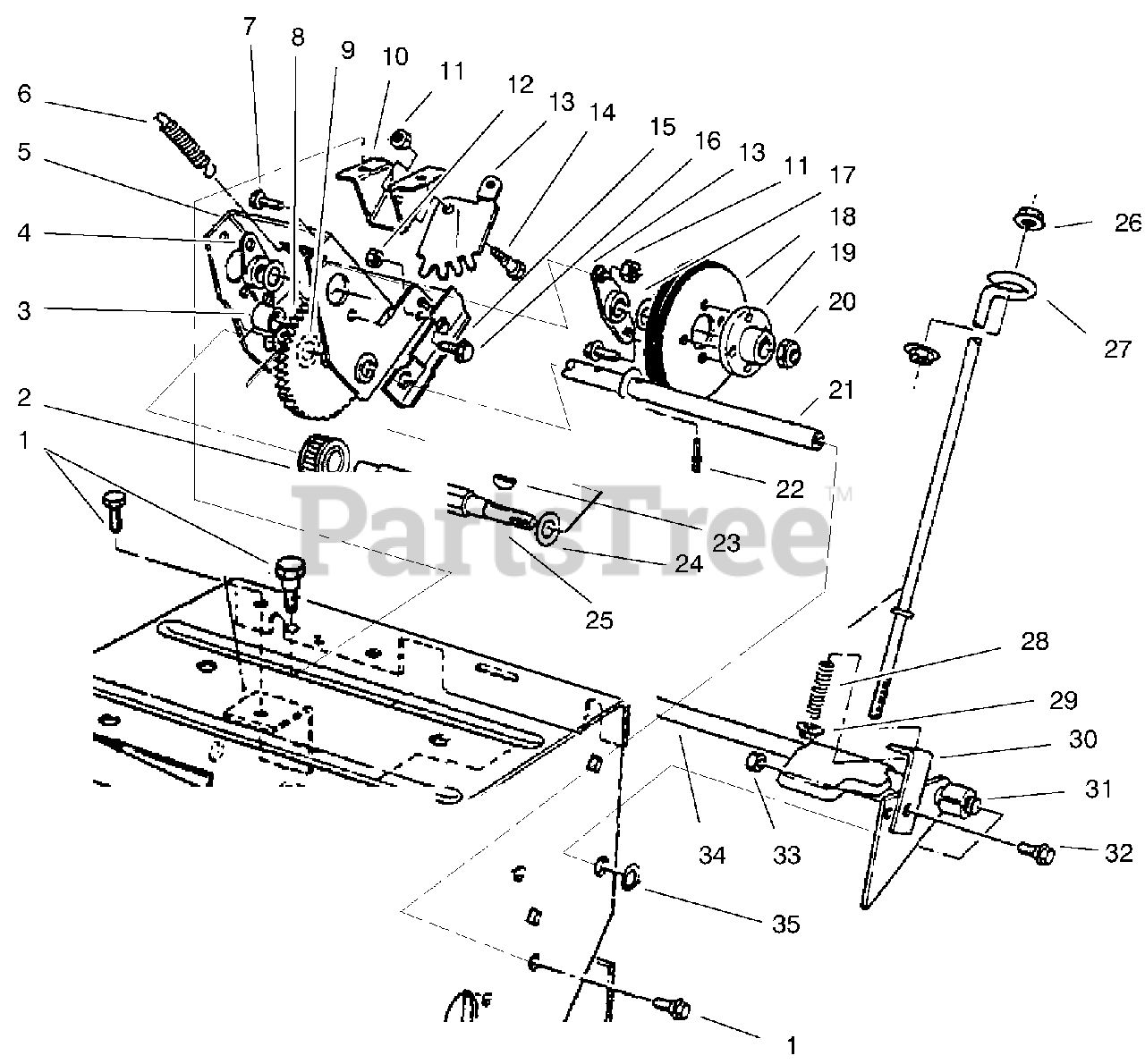

TRACTION ASSEMBLY Parts Diagram

  • Title
1

$2.99

$

In Stock, Qty 20+

0

2

$

$

Not available

3

Lawn-Boy 256-86

5/8ID X 1LG BUSHING

$19.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$37.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 39-1230

BRACKET-SLIDING

$

$

Not available

6

Lawn-Boy 37-8880

SPRING-TRACTION

$17.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

8

Lawn-Boy 37-9160

Intermediate Gear & Bushing (Incl. Ref. #4)

$223.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 10-9280

WASHER-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 37-8790

MOUNT-LEVER

$

$

Not available

11

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

12

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

13

Lawn-Boy 37-8800

GEAR-QUADRANT

$23.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 39-1250

CAM-RECEIVER

$21.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 36-4790

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 37-6570

WHEEL-FRICTION

$38.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 39-1520

HUB-WHEEL, FRICTION

$76.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 3296-48

NUT-LOCK NI

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 37-6760

SHAFT-PIVOT

$95.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 37-6780

SHAFT-WHEEL, FRICTION

$116.99

$

Usually ships in 3-6 days

0

26

$0.99

$

In Stock, Qty 6

0

27

Lawn-Boy 39-3060

ROD-TRACTION, LOWER

$39.99

$

Usually ships in 3-6 days

0

28

$15.99

$

In Stock, only 2 left!

0

29

$2.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 38-4490

BRACKET-TRACTION

$10.99

$

Usually ships in 3-6 days

0

31

$

$

Not available

32

$7.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 43-7310

Traction Engagement Asm.
(Superseded to 43-7310-03)

$77.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0
