28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 007900001 - 007999999) (1997) HANDLE ASSEMBLY LEFT SIDE Parts Diagram

22" Snow Thrower

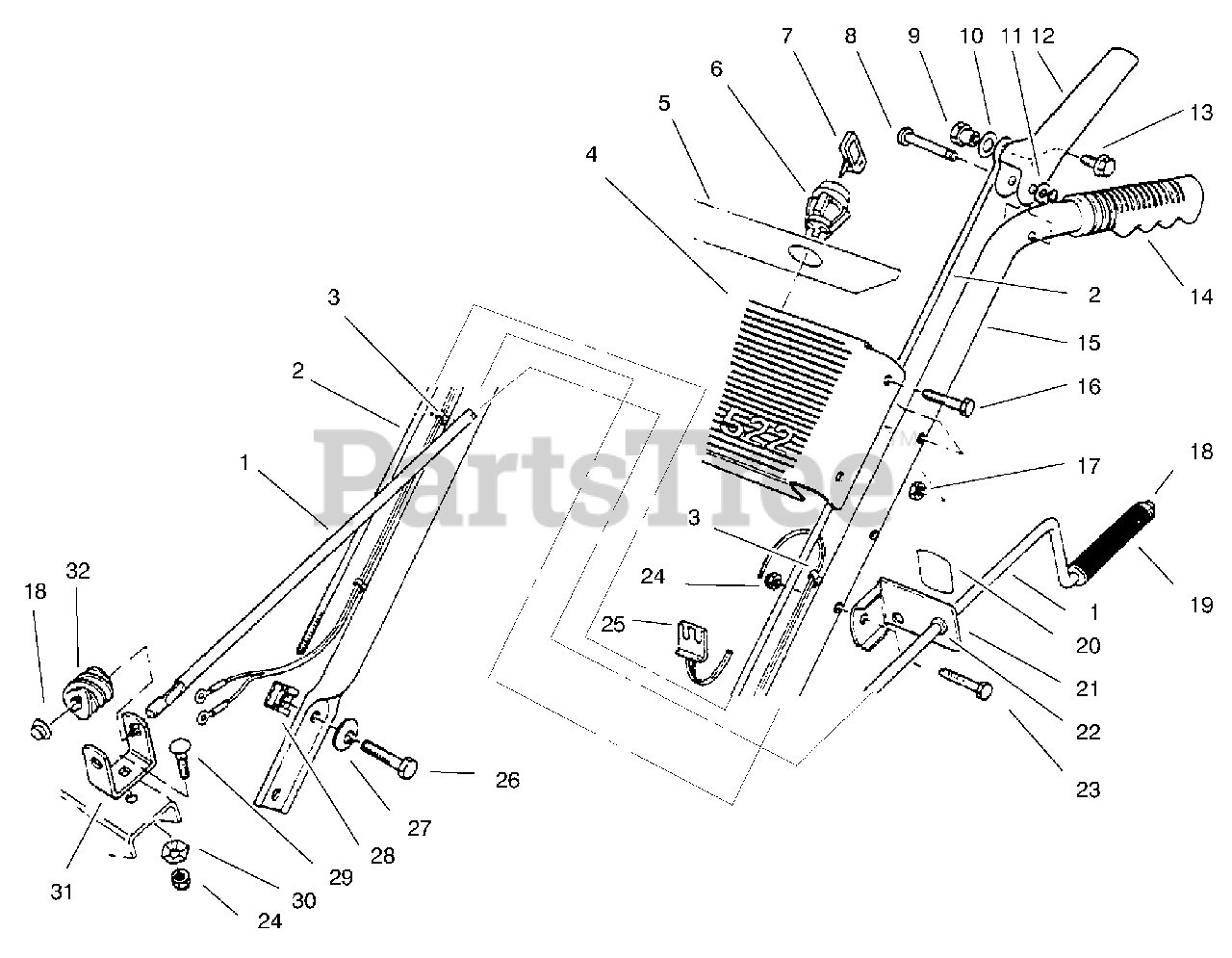

HANDLE ASSEMBLY LEFT SIDE Parts Diagram

  • Title
1

Lawn-Boy 40-8270

ROD-CONTROL, CHUTE

$161.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 52-5590

LINK-UPPER

$23.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 17-9120

Mount-Wire

$2.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy Reference

Panel-Escutcheon

$

$

Currently unavailable

5

Lawn-Boy 66-6830

DECAL - ESCUTCHEON BACK

$

$

Not available

Lawn-Boy 94-2563

DECAL - ESCUTCHEON BACK

Note: Not Illustrated

$

$

Not available

6

Lawn-Boy 40-5940

SWITCH-ON/OFF

$15.99

$

Usually ships in 3-6 days

0

$6.49

$

In Stock, Qty 10

0

8

Lawn-Boy 52-5600

PIN-LEVER, CONTROL

$28.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 47-4990

POST-LINKAGE MOUNTING

$27.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

12

Lawn-Boy 94-8887

Handle-Control
(Superseded to 94-8887-03)

$

$

Not available

13

Lawn-Boy 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

14

Lawn-Boy 74-1360

GRIP-HANDLE

$

$

Not available

15

Lawn-Boy 52-5571

Handle-Left
(Superseded to 52-5571-03)

$

$

Not available

16

Lawn-Boy 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

18

Lawn-Boy 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 40-8230

GRIP-CHUTE CONTROL

$16.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 63-3510

DECAL - CHUTE DIRECTION

$5.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 12-7739

Bracket-Chute Control (Incl. Ref.# 20 & 22)

$

$

Not available

22

Lawn-Boy 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 9

0

23

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 43-7390

Wire Harness Asm. (Incl. Ref.# 3)

$

$

Not available

26

Lawn-Boy 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

27

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

$9.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

30

Lawn-Boy 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 40-8280

BRACKET-WORM

$18.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 40-8250

GEAR-WORM, CHUTE

$15.99

$

Usually ships in 3-6 days

0

Lawn-Boy 3290-378

TIE-CABLE

Note: Not Illustrated

$0.99

$

In Stock, Qty 8

0
