28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 000000001 - 000999999) (2000) STARTER MOTOR NO. 33290E (OPTIONAL) Parts Diagram

22" Snow Thrower

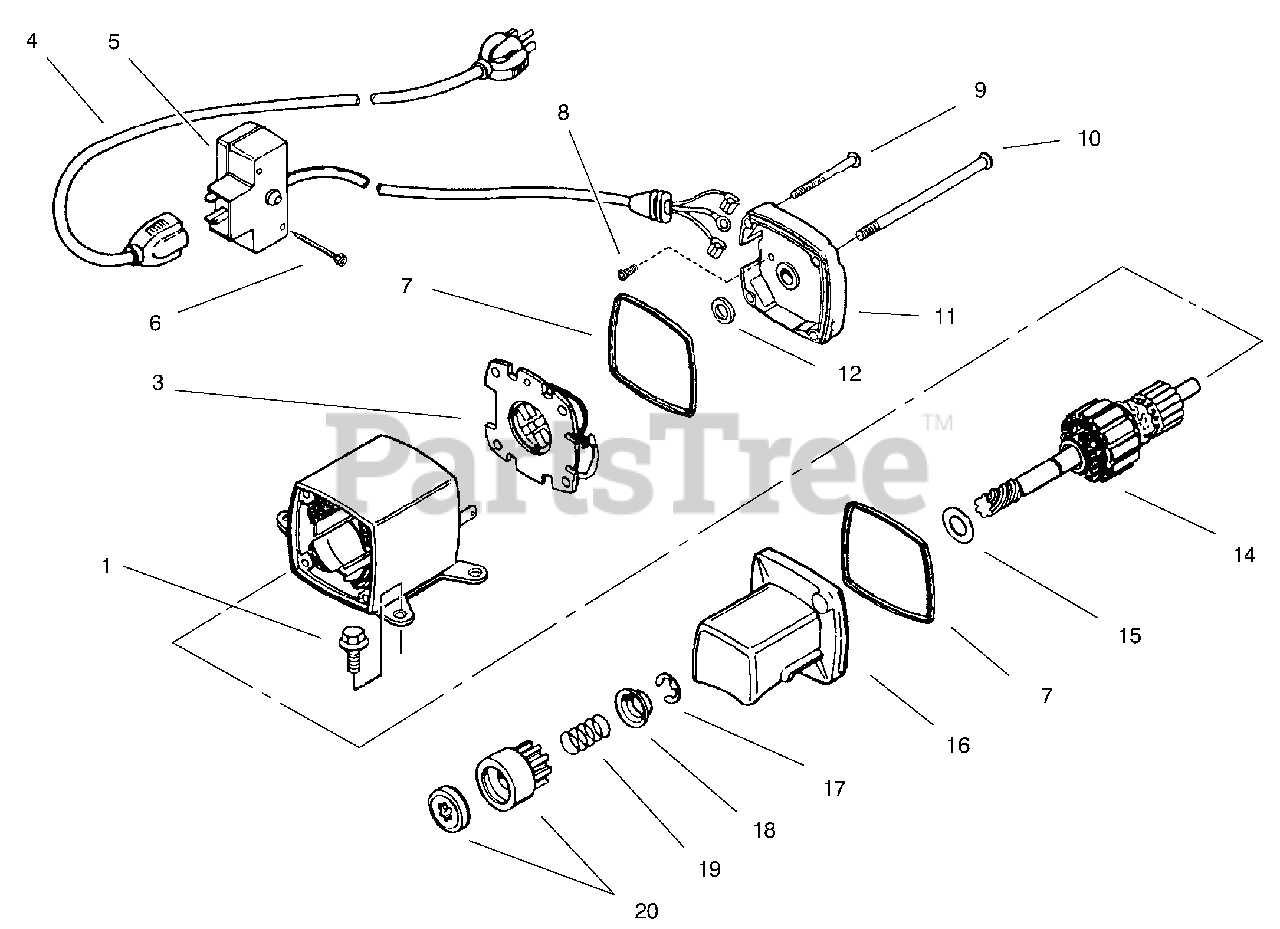

STARTER MOTOR NO. 33290E (OPTIONAL) Parts Diagram

  • Title
1

Lawn-Boy 650759

Screw-Torx

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

3

Lawn-Boy 35452A

Brush & Spring Card Asm

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

4

Lawn-Boy 32450B

Cord-Extension

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

5

Lawn-Boy 35454

Switch Box Asm (Incl. Ref. # 6)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Not available

6

Lawn-Boy 650819

Screw

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

7

Lawn-Boy 35450

"O' Ring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

8

Lawn-Boy 33441

Screw-Ground

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

9

Lawn-Boy 35456

Scerw-Ground

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

10

Lawn-Boy 35462

Bolt-Case

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

11

Lawn-Boy 35453

Cap-Commutator End Asm (Incl. Ref. #7)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

12

Lawn-Boy 590500

Washer-Thrust

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

14

Lawn-Boy 35912

Armature

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

15

Lawn-Boy 35911

Washer-Thrust

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

16

Lawn-Boy 35461

Cap-Drive End (Incl. Ref.# 7)

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

17

Lawn-Boy 31749

Ring-Retainer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

18

Lawn-Boy 33522

Retainer-Spring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

19

Lawn-Boy 33769

Spring-Anti Drift

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

20

Lawn-Boy 33524

Nut & Gear

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

Lawn-Boy 33290E

Starter-Electric (110 Volt)

Note: Note: Order individual parts from your local Tecumseh dealer. Not Illustrated

$

$

Currently unavailable

Lawn-Boy 730623

Switch Repair Kit

Note: Note: Order individual parts from your local Tecumseh dealer. Not Illustrated

$

$

Currently unavailable
