28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 000000001 - 000999999) (2000) REWIND STARTER NO. 590742 Parts Diagram

22" Snow Thrower

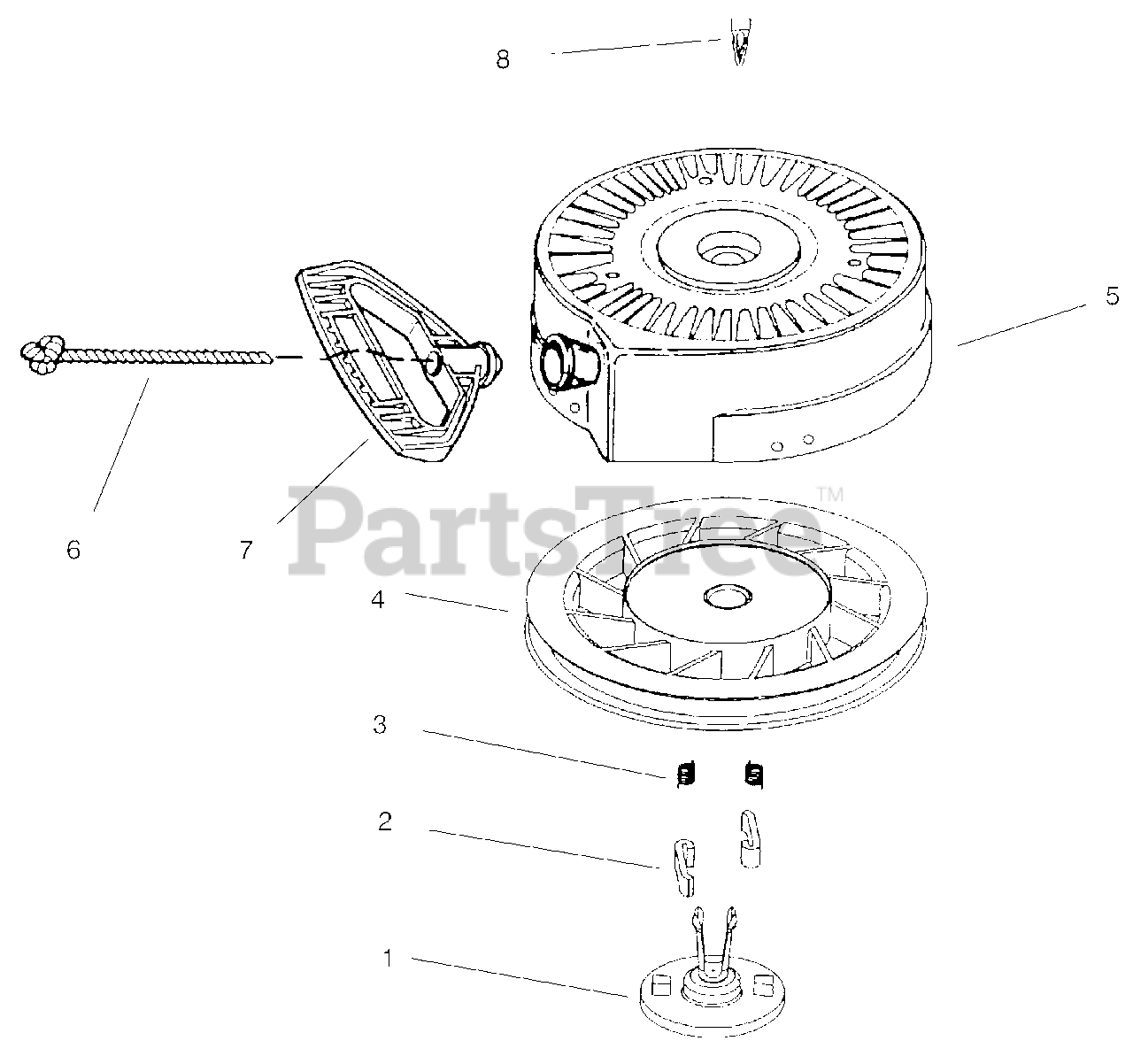

REWIND STARTER NO. 590742 Parts Diagram

  • Title

1

Lawn-Boy 590740

Retainer

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

2

Lawn-Boy 590616

Starter Dog

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

3

Lawn-Boy 590617

Dog Spring

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

4

Lawn-Boy 590645A

Pulley & Rewind Spring Asm.

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

5

Lawn-Boy 590647

Starter Housing Asm.

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

6

Lawn-Boy 590535

Starter Rope

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

7

Lawn-Boy 590574

Mitten Grip Handle

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable

8

Lawn-Boy 590741

Locking Tab

Note: Note: Order individual parts from your local Tecumseh dealer.

$

$

Currently unavailable
