28226 (720 E) - Lawn-Boy 20" Snow Thrower (SN: 220000001 - 220999999) (2002) DRIVE COVER AND PULLEY ASSEMBLY Parts Diagram

20" Snow Thrower

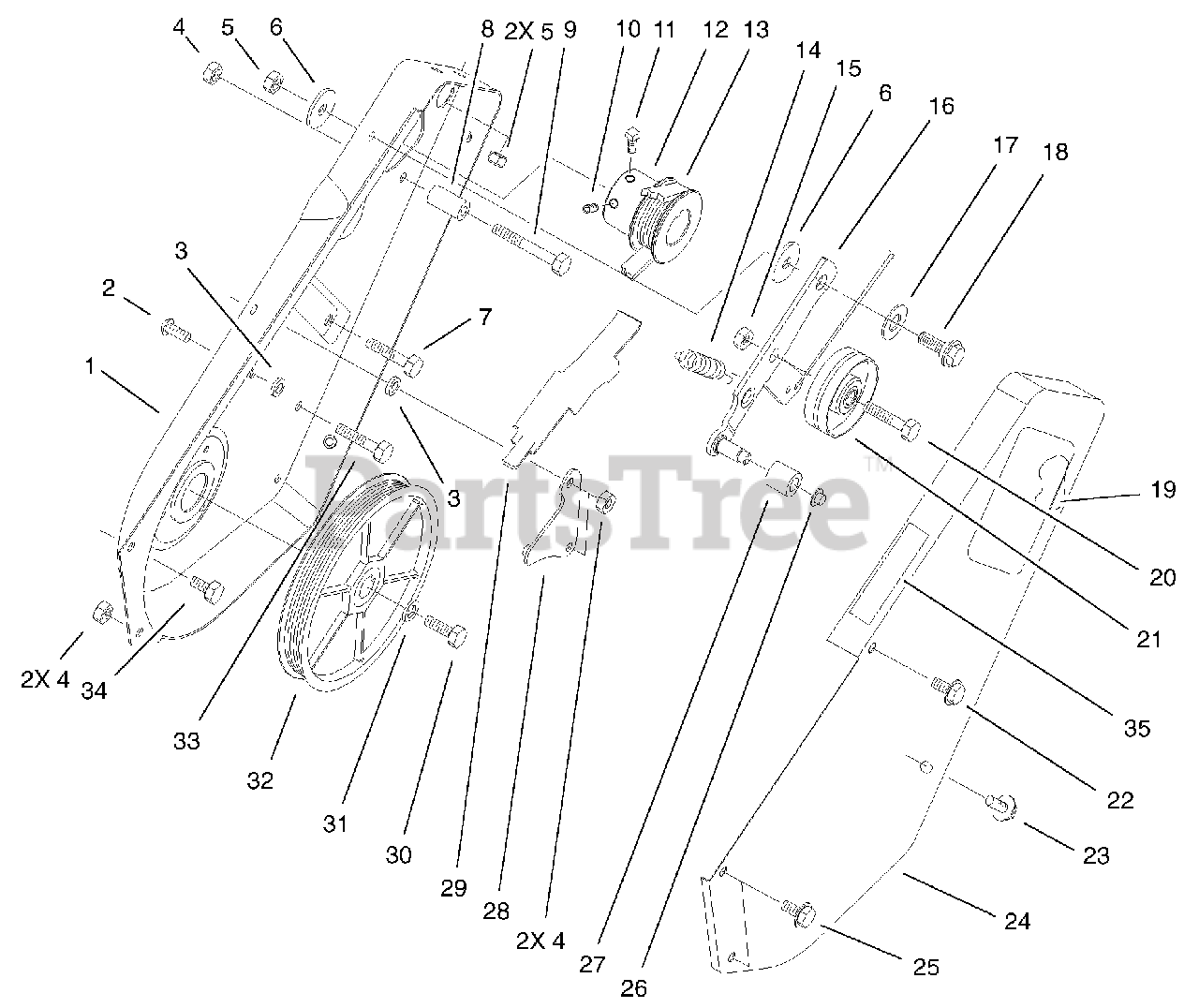

DRIVE COVER AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 55-8851-03

PLATE-SIDE, LH

$109.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

5

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

7

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Lawn-Boy 55-9530

SLEEVE-GUIDE, BELT

$9.49

$

In Stock, Qty 5

0

9

Lawn-Boy 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

10

Lawn-Boy 3245-41

SCREW-HSH

$2.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 3241-7

SCREW-SQH

$3.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 95-2673

PULLEY-ENGINE

$

$

Not available

13

Lawn-Boy 95-6151

BELT-DRIVE

$25.99

$

In Stock, Qty 13

0

14

Lawn-Boy 55-9280

SPRING-EXTENSION

$6.99

$

In Stock, Qty 8

0

15

Lawn-Boy 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

16

Lawn-Boy 63-3610

IDLER ARM ASM

$54.99

$

Usually ships in 3-6 days

0

17

$1.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

19

$6.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

21

Lawn-Boy 55-9290

PULLEY-IDLER

$25.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 36-3860

SCREW-HWH, TAP

$2.49

$

In Stock, Qty 15

0

23

$3.49

$

In Stock, Qty 11

0

24

Lawn-Boy 16-9449

COVER-DRIVE

$

$

Not available

$2.99

$

In Stock, Qty 14

0

26

$1.49

$

In Stock, only 3 left!

0

27

Lawn-Boy 55-9520

ROLLER-BRAKE

$2.99

$

In Stock, Qty 16

0

28

Lawn-Boy 55-9570

PIVOT PLATE ASM

$19.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 55-9550

BRAKE-ARM

$

$

Not available

30

Lawn-Boy 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

32

Lawn-Boy 95-2672

PULLEY ROTOR ASM

$28.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

35

Lawn-Boy 104-2767

DECAL-WARNING

$4.49

$

Usually ships in 3-6 days

0
