28223 (320 E) - Lawn-Boy 20" Snow Thrower (SN: 007900001 - 007999999) (1997) UPPER SHROUD ASSEMBLY Parts Diagram

20" Snow Thrower

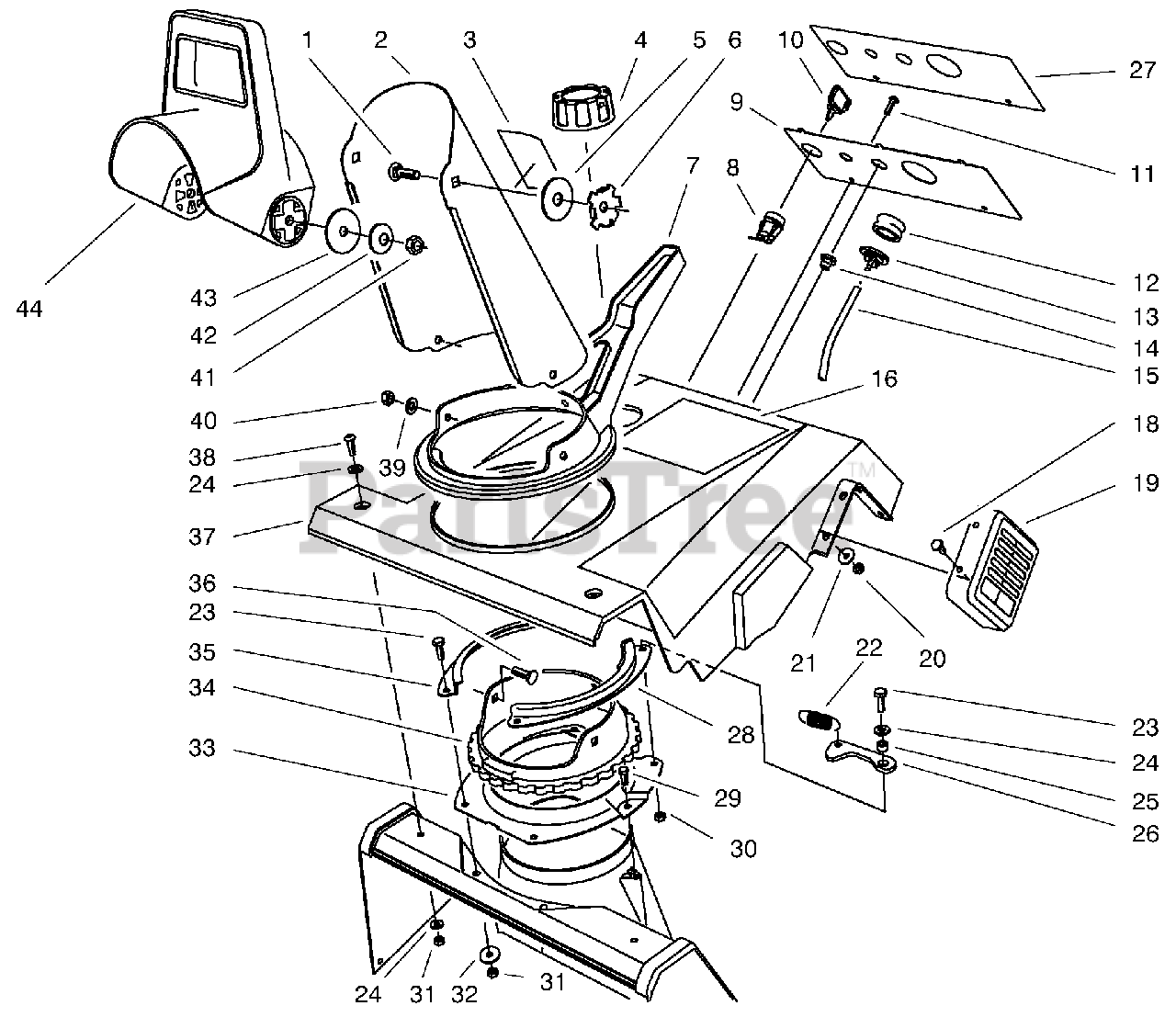

UPPER SHROUD ASSEMBLY Parts Diagram

  • Title

Lawn-Boy 71-5241

Panel-Control (Model No. 28223)
(Superseded to 71-5241-03)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 94-9879

Decal-320E (Model No. 28223)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 94-2566

Decal-Control Panel (Model No. 28223)

Note: Not Illustrated

$23.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 63-8360

Key-Ignition

$5.99

$

In Stock, Qty 12

0

11

Lawn-Boy 32144-53

Screw-Slotted Flange Hd.

$3.99

$

In Stock, Qty 10

0

12

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 44-2750

Body- Primer

$8.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 23-7470

Guide-Rope

$23.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 44-3173

Hose-Primer

$5.49

$

In Stock, only 1 left!

0

16

Lawn-Boy 94-9878

Decal-320 (Model No. 28221)

$

$

Not available

18

Lawn-Boy 3290-359

Screw-Hex. Hd.

$

$

Not available

19

Lawn-Boy 71-5340

Guard-Muffler
(Superseded to 71-5340-03)

$21.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 3230-22

Bolt-Carriage

$2.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 3296-2

Nut- Lock

$2.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 3256-61

Washer-Flat

$2.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 71-5590

Spring-Extension
(Superseded to 80-4600)

$7.99

$

In Stock, Qty 9

0

23

Lawn-Boy 321-4

Screw-Hex. Hd.

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 55-9370

Spacer-Detent Arm

$2.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 80-4610

Arm-Detent

$12.99

$

In Stock, Qty 10

0

27

Lawn-Boy 94-2567

Decal-Control Panel (Model No. 28221)

$

$

Not available

28

Lawn-Boy 71-4980

Retainer-Chute Ring L.H.
(Superseded to 71-4980-03)

$

$

Not available

29

Lawn-Boy 46-8092

Screw-Hex. Flange Hd.
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

2

Lawn-Boy 94-2791

Discharge Chute Assembly (Incl. Ref. #3)

$

$

Not available

30

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 12

0

32

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 55-8921

Support-Chute Ring
(Superseded to 55-8921-03)

$28.99

$

In Stock, Qty 9

0

34

Lawn-Boy 71-4950

Ring-Chute

$

$

Not available

35

Lawn-Boy 71-4990

Retainer-Chute Ring R.H.
(Superseded to 71-4990-03)

$

$

Not available

36

Lawn-Boy 3230-16

Bolt-Carriage

$2.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 94-8888

Shroud-Upper

$

$

Not available

38

Lawn-Boy 3250-32

Screw-Pan Hd.

$0.99

$

In Stock, Qty 20+

0

39

Lawn-Boy 3256-70

Washer-Flat

$1.49

$

In Stock, Qty 14

0

3

Lawn-Boy 94-2901

Decal- Danger

$

$

Not available

40

Lawn-Boy 32149-1

Nut-Keps

$6.49

$

In Stock, Qty 9

0

41

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

42

Lawn-Boy 3290-456

Washer-Belleville

$2.99

$

In Stock, Qty 19

0

43

Lawn-Boy 3256-68

Washer-Flat

$2.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 56-2680

Deflector-Discharge

$23.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 55-3573

Gas Cap Assembly
(Superseded to 104-4133)

$16.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 20-4320

Washer-Rubber

$0.99

$

In Stock, Qty 8

0

6

Lawn-Boy 55-8950

Plate-Friction

$8.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 71-4940

Handle-Chute

$

$

Not available

8

Lawn-Boy 40-5940

Switch-On-Off

$15.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 71-5240

Panel-Control (Model No. 28221)
(Superseded to 71-5240-03)

$

$

Not available
