28223 (320 E) - Lawn-Boy 20" Snow Thrower (SN: 007900001 - 007999999) (1997) HANDLE ASSEMBLY Parts Diagram

20" Snow Thrower

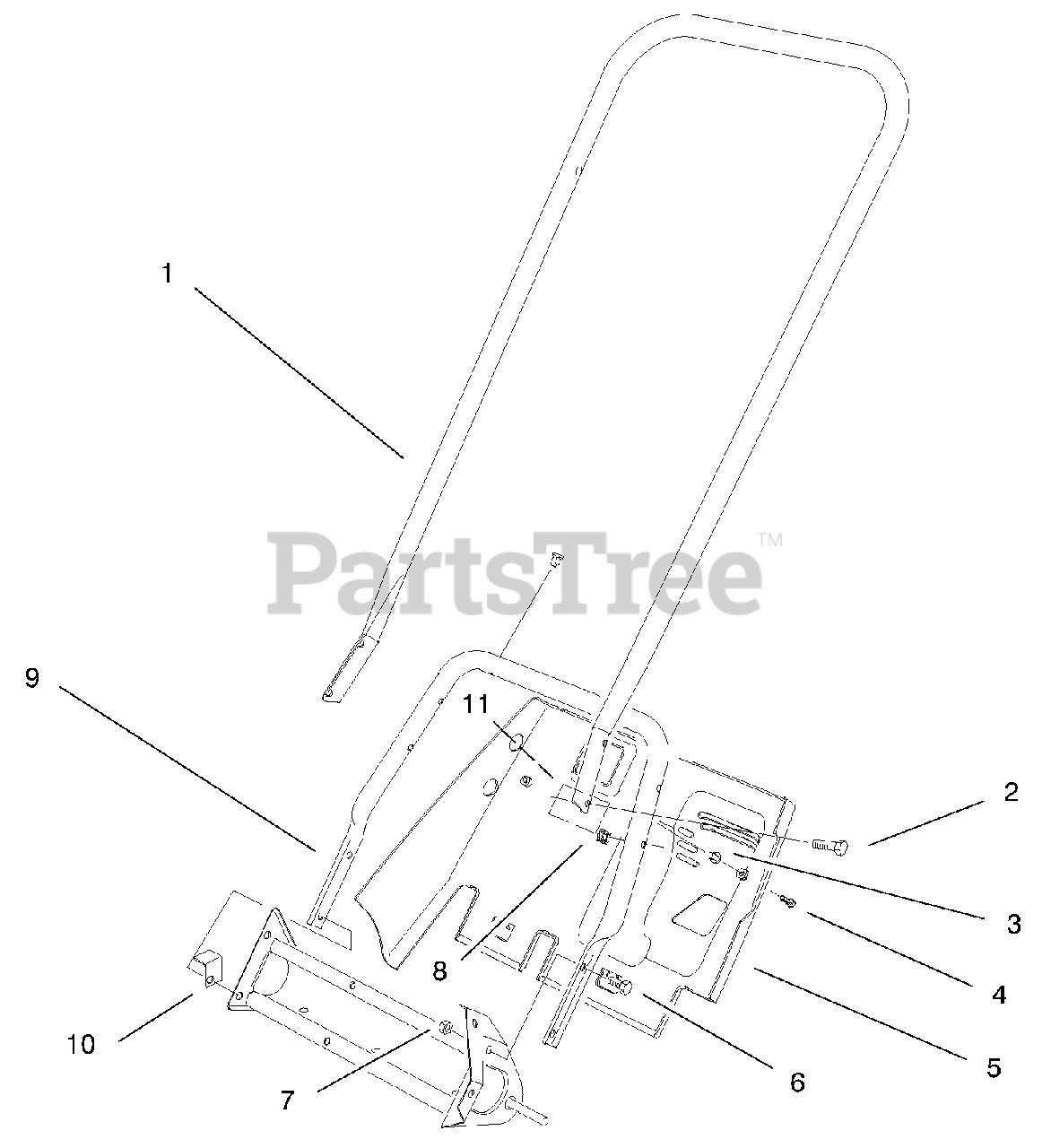

HANDLE ASSEMBLY Parts Diagram

  • Title
10

Lawn-Boy 71-5600

Bracket-Shroud

$

$

Not available

11

Lawn-Boy 61-4790

Decal-Warning CSA

$

$

Not available

1

Lawn-Boy 71-5090

Handle-Upper
(Superseded to 100-3599)

$

$

Not available

2

Lawn-Boy 32105-11

Screw-Hex. Hd.
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

3

$1.49

$

In Stock, Qty 8

0

4

Lawn-Boy 32144-53

Screw-Thread Forming

$3.99

$

In Stock, Qty 10

0

5

Lawn-Boy 94-8889

Shroud-Lower

$

$

Not available

6

Lawn-Boy 322-3

Screw-Hex. Hd.

$0.99

$

In Stock, Qty 13

0

7

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 3290-225

Nut-Speed

$9.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 71-5370

Handle-Lower
(Superseded to 71-5370-03)

$62.99

$

Usually ships in 3-6 days

0
