28222 (320 E) - Lawn-Boy 20" Snow Thrower (SN: 200000001 - 200999999) (2000) ROTOR ASSEMBLY Parts Diagram

20" Snow Thrower

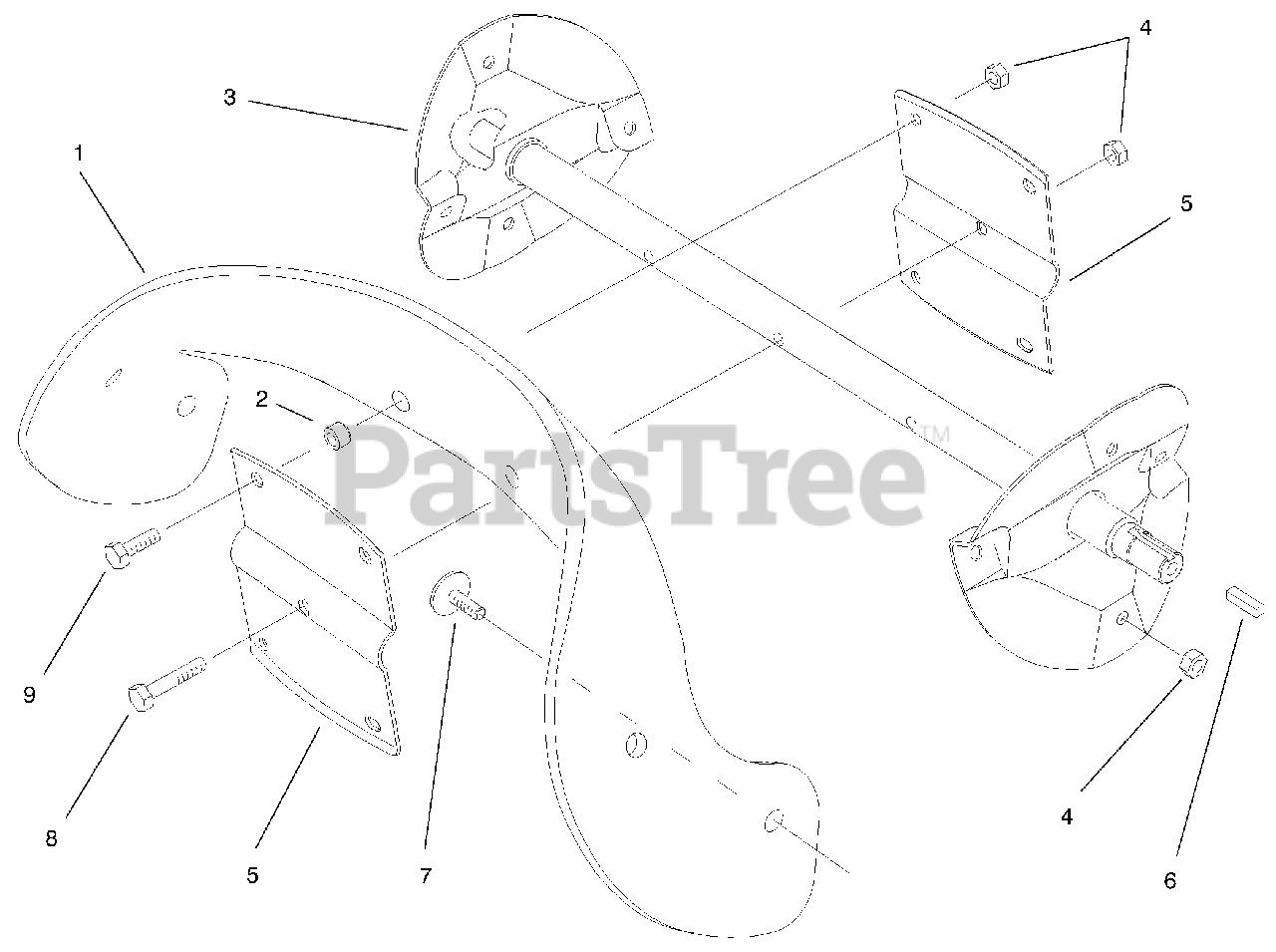

ROTOR ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 88-0781

Rotor Blade (Ccr 1000)
(Superseded to 104-2753)

$45.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 55-9370

Rotor Bld Spacer

$2.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 55-9202-03

Rotor Wa
(Superseded to 131-6490)

$103.99

$

In Stock, Qty 8

0

4

Lawn-Boy 3296-56

Nut-Lock Ni

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 66-6600-03

Rotor Half

$9.49

$

In Stock, Qty 6

0

6

Lawn-Boy 10-8040

Key-Square

$2.99

$

In Stock, Qty 17

0

7

Lawn-Boy 84-1971

Screw-Csunk Oval
(Superseded to 136-7182)

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 321-8

Screw-HH

$3.99

$

In Stock, Qty 10

0

9

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0
