28222 (320 E) - Lawn-Boy 20" Snow Thrower (SN: 009900001 - 009999999) (1999) ENGINE & GAS TANK ASSEMBLY Parts Diagram

20" Snow Thrower

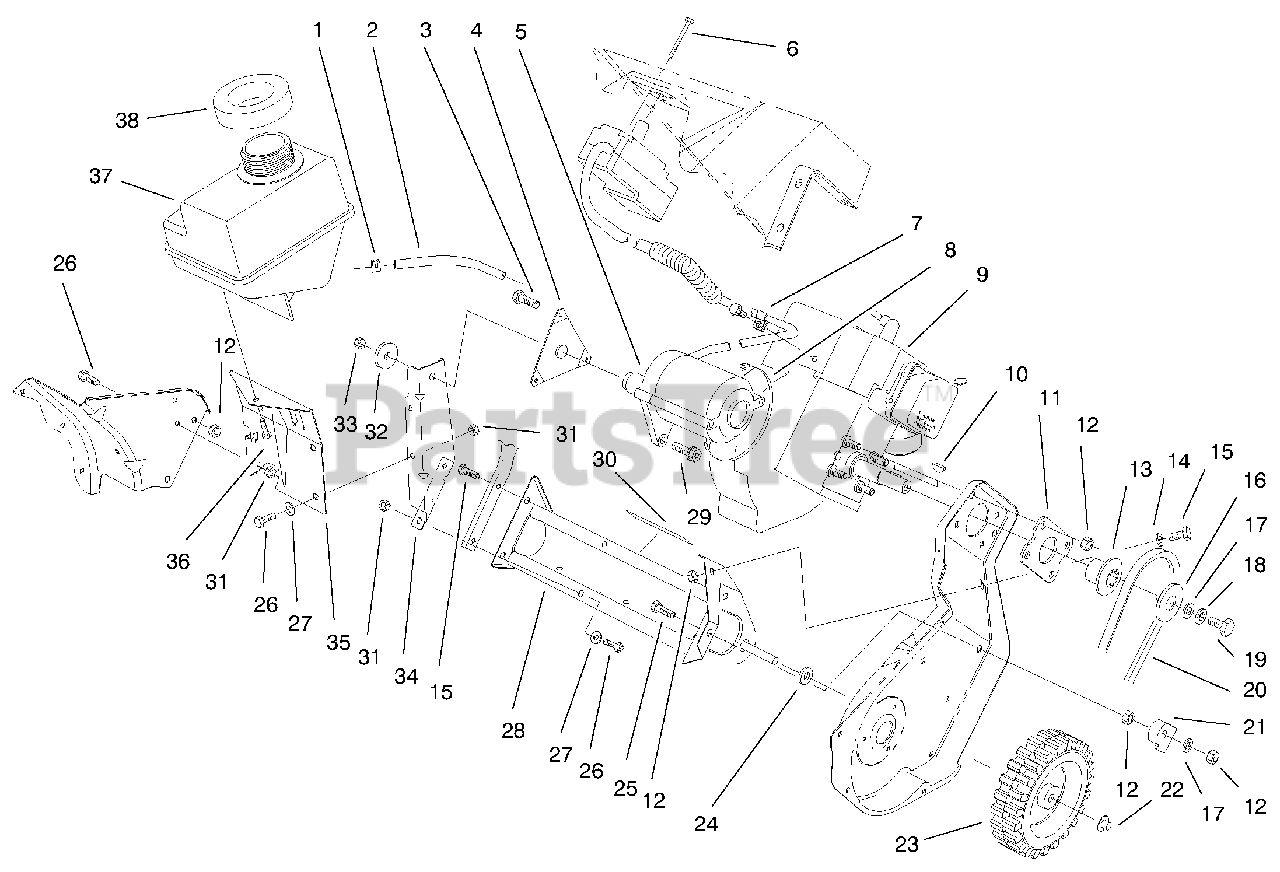

ENGINE & GAS TANK ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 49-2482

Hose-Gas

$16.99

$

In Stock, Qty 6

0

3

Lawn-Boy 3255-10

Lockwasher

$

$

Not available

$

$

Not available

3

Lawn-Boy 94-2789

Screw-TAP

$

$

Not available

4

Lawn-Boy 92-6012

ASM-Bracket & Stud

$12.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 77-0402

ASM-Switch Housing (Model 28222)
(Superseded to 105-2953)

$

$

Not available

6

Lawn-Boy 32144-27

Screw (Model 28222)

$7.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 2412-91

Clamp-Cable (Model 28222)

$3.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 250-7

Tie-Cable (Model 28222)

$7.49

$

In Stock, only 1 left!

0

9

ASM-Engine

$

$

Not available

10

Lawn-Boy 3257-3

Key-Woodruff

$1.49

$

In Stock, only 4 left!

0

11

Lawn-Boy 71-5290-03

Plate-Engine

$6.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 71-5050

Body-Half Sheave

$54.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 71-5060

Cap-Half Sheave

$14.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3256-71

Washer-Flat

$1.49

$

In Stock, Qty 5

0

18

Lawn-Boy 3290-456

Washer-Lock

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 3235-6

Screw-HH

$4.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 71-5381

"v" Belt

$24.99

$

In Stock, Qty 14

0

21

Lawn-Boy 84-5610

Guide-Cable

$3.49

$

Usually ships in 3-6 days

0

22

$1.99

$

In Stock, Qty 20+

0

23

$20.99

$

In Stock, Qty 5

0

24

Lawn-Boy 71-5440

Spacer-Wheel

$5.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 322-5

Screw-HH

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

28

$157.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 80-0700

Screw-HH Tork (Model 28222)

$2.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 71-5320

Washer-Support

$14.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 3296-16

Nut-Lock

$1.49

$

In Stock, only 3 left!

0

34

Lawn-Boy 71-5210-03

Support-Engine

$7.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 71-5220-03

Bracket-Tank

$

$

Not available

36

Lawn-Boy 32144-53

Screw-Tf Acorn Hd

$3.99

$

In Stock, Qty 10

0

37

Lawn-Boy 71-5020

Tank-Gas
(Superseded to 105-2997)

$

$

Not available

38

Lawn-Boy 55-9310

Seal-Tank

$

$

Not available
