28220 (320 R) - Lawn-Boy 20" Snow Thrower (SN: 200000001 - 200999999) (2000) CARBURETOR NO. 640086 Parts Diagram

20" Snow Thrower

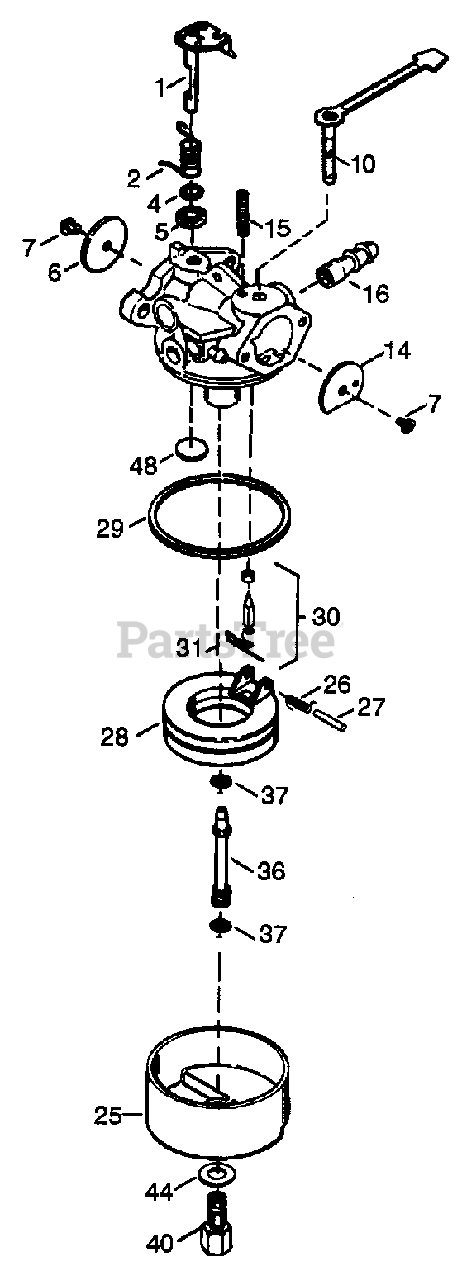

CARBURETOR NO. 640086 Parts Diagram

  • Title
1

Lawn-Boy 632166A

Throttle Shaft & Lever Asm.

$

$

Currently unavailable

2

Lawn-Boy 632169

Throttle Return Spring

$

$

Currently unavailable

4

Lawn-Boy 631184

Dust Seat Washer

$

$

Currently unavailable

5

Lawn-Boy 631183

Dust Seat (Throttle)

$

$

Currently unavailable

6

Lawn-Boy 631621

Throttle Shutter

$

$

Currently unavailable

7

Lawn-Boy 650506

Shutter Screw

$

$

Currently unavailable

10

Lawn-Boy 632553

Choke Shaft & Lever Asm.

$

$

Currently unavailable

14

Lawn-Boy 631815

Choke Shutter

$

$

Currently unavailable

15

Lawn-Boy 630735

Choke Positioning Spring

$

$

Currently unavailable

16

Lawn-Boy 632164

Fuel Fitting

$

$

Currently unavailable

25

Lawn-Boy 631700

Float Bowl

$

$

Currently unavailable

26

Lawn-Boy 632386

Float Dampening Spring

$

$

Currently unavailable

27

Lawn-Boy 631024

Float shaft

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Lawn-Boy 631028

Float Bowl "O" Ring

$

$

Currently unavailable

30

Lawn-Boy 631021

Inlet Needle, Seat & Clip (Incl. Ref. #31)

$

$

Currently unavailable

31

Lawn-Boy 631022

Spring Clip

$

$

Currently unavailable

36

Lawn-Boy 640080

Main Nozzle Tube

$

$

Currently unavailable

37

Lawn-Boy 632547

"O" Ring, Main Nozzle Tube

$

$

Currently unavailable

40

Lawn-Boy 640087

High Speed Bowl Nut

$

$

Currently unavailable

44

Lawn-Boy 27110

Bowl Nut Washer

$

$

Currently unavailable

48

Lawn-Boy 631027

Welch Plug

$

$

Currently unavailable
