28210 (120 R) - Lawn-Boy 12" Snowstick Snow Thrower (SN: 790000001 - 799999999) (1997) ENGINE ASSEMBLY Parts Diagram

12" Snowstick Snow Thrower

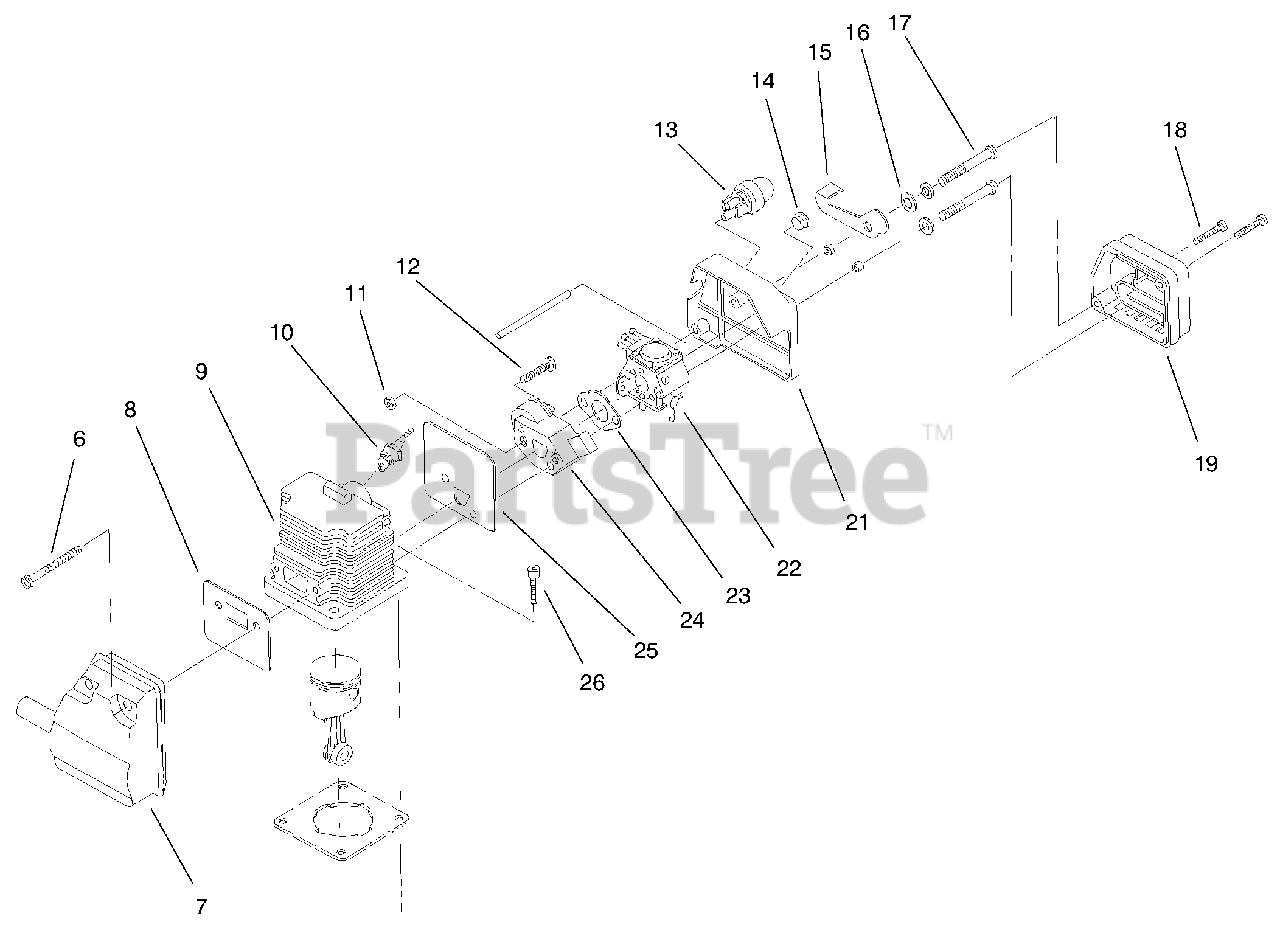

ENGINE ASSEMBLY Parts Diagram

  • Title
6

Lawn-Boy 180214

Muffler Mounting Screws

$

$

Not available

7

Lawn-Boy 180215

Muffler Asm.

$

$

Not available

8

Lawn-Boy 180216

Muffler Gasket

$

$

Not available

9

Lawn-Boy 181527

Cylinder

$

$

Not available

10

Lawn-Boy 610311

Spark Plug

$3.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 180217

Spacer Nut Set

$

$

Not available

12

Lawn-Boy 180218

Spacer Screw Set

$

$

Not available

13

Lawn-Boy 683974

Primer Bulb & Hose

$

$

Not available

14

Lawn-Boy 92-3281

Plug Switch

$

$

Not available

15

Lawn-Boy 180225

Choke Lever

$

$

Not available

16

Lawn-Boy 180226

Wavey Washer

$

$

Not available

17

Lawn-Boy 180533

Carburetor Mount Screw Asm.

$

$

Not available

18

Lawn-Boy 180230

Screw
(Superseded to 68-3070)

$

$

Not available

19

Lawn-Boy 180229

Air Cleaner Cover

$

$

Not available

21

Lawn-Boy 180223

Air Cleaner Base Asm.

$

$

Not available

22

Lawn-Boy 181526

Carburetor Asm.

$

$

Not available

23

Lawn-Boy 612113

Carburetor Gasket

$

$

Not available

24

Lawn-Boy 180532

Spacer, Carburetor Asm.

$

$

Not available

25

Lawn-Boy 180220

Cylinder/Carburetor Gasket

$

$

Not available

26

$

$

Not available
