282 (0350031U) - Cub Cadet Lawn Tractor Lift Mechanism Parts Diagram

Lawn Tractor

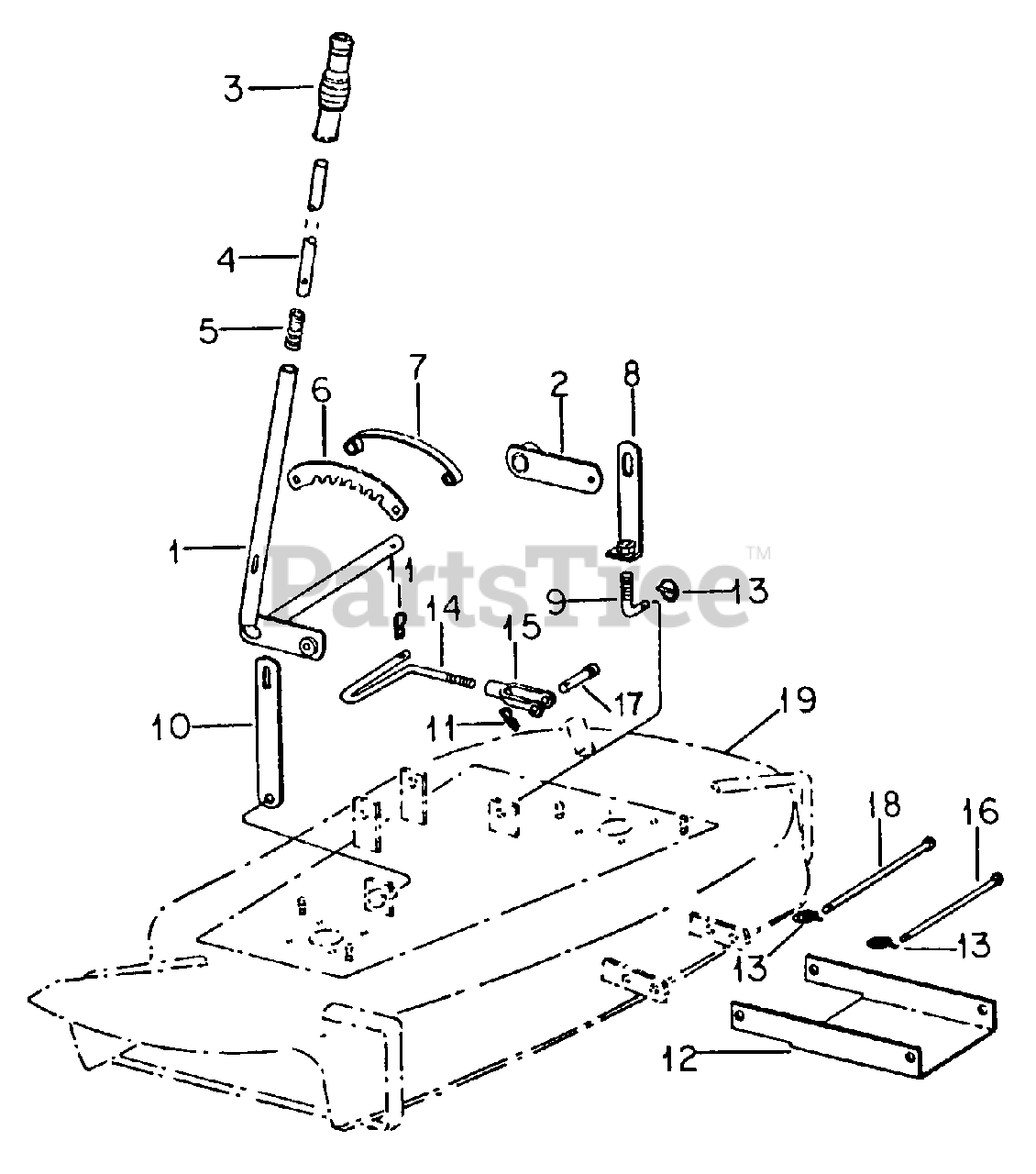

Lift Mechanism Parts Diagram

  • Title

1

Cub Cadet 703-0360

Handle Assy, Lift

$

$

Not available

Cub Cadet 715-0246

Pin, 3/16 X 1-1/4 Lt Pln Cld Spr
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 703-0362

Arm Assy, Lift Handle, LH

$

$

Not available

3

Cub Cadet 720-3007

Grip, Lift Handle
(Superseded to 731-3158)

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 5

0

~NLA

Washer, .781 X 1.125 X .054

$

$

Not available

4

Cub Cadet 738-3020

Button, Lift Handle

$

$

Not available

5

Cub Cadet 732-3025

Spring, Lift Button

$

$

Not available

Cub Cadet 715-0118

Pin, 5/16 X 1-3/4 Hvy Pln Cld Spr

$12.99

$

In Stock, Qty 7

0

6

Cub Cadet 703-0364

Ratchet, Lift

$

$

Not available

Cub Cadet 710-3034

Bolt, 3/8 X 1-1/4 Crg Type 5

$3.99

$

In Stock, Qty 5

0

Cub Cadet 712-0375

Nut, 3/8 Cad P/T Lock Type 1

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet 703-0365

Spacer, Ratchet

$

$

Not available

8

Cub Cadet 703-0372

Support Assy, Lift - Link

$

$

Not available

9

Cub Cadet 747-3046

Rod, Lift Link

$

$

Not available

10

Cub Cadet 703-0374

Link, Lift, RH

Variations

Cub Cadet 703-0374-0498

BAR-LIFT LINK (RH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

11

Cub Cadet 714-3003

Pin, Spring
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-0375

Link, Mower Front Leveling

Variations

Cub Cadet 703-0375-0499

LINK-LEVELING - CUB BEIGE (0499)

$

$

Not available

$

$

13

Cub Cadet 714-3008

Pin Assy, Klik
(Superseded to 914-3008)

$

$

Not available

14

Cub Cadet 747-3047

Rod, Mower Linkage
(Superseded to 947-3047)

$20.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 719-3020

Clevis, Short Adj Rod End

$

$

Not available

16

Cub Cadet 711-3068

Pin, 1/2 X 7.688 Std Hd

$21.99

$

In Stock, only 2 left!

0

17

Cub Cadet 711-3069

Pin, 1/2 X 2-3/32 Rod End

$

$

Not available

18

Cub Cadet 711-3019

Pin, 1/2 X 7 Znd Std Hd
(Superseded to 911-3019)

$29.99

$

In Stock, Qty 5

0

19

Housing Assy, Mower - Refer to Mower Listing

$

$

Not available
