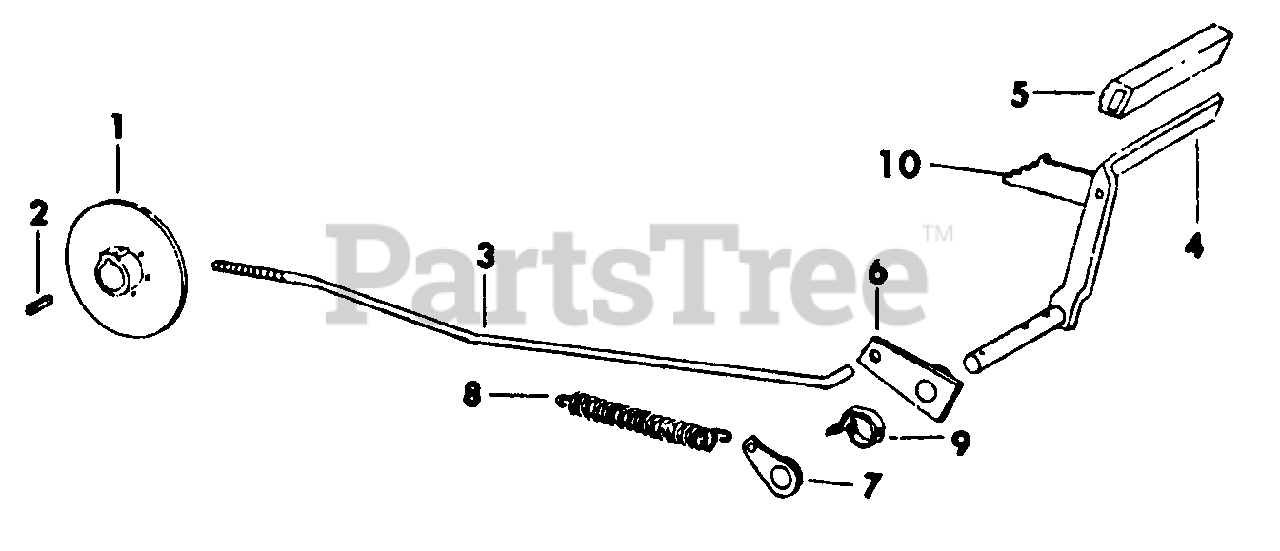

282 (0350026U) - Cub Cadet Lawn Tractor Brakes & Connections Parts Diagram

Lawn Tractor

Brakes & Connections Parts Diagram

  • Title
1

Cub Cadet 761-3001

Disc and Hub Assy

$

$

Not available

Cub Cadet 750-3008

Washer, .281 X .750 X .105

$

$

Currently unavailable

Cub Cadet 712-0375

Nut, 3/8 Cad P/T Lock Type

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet 714-0868

Key, 3/16 X 3/4 SAE 9 Woodruff
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet 747-3027

Rod, Brake

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cot

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

4

Cub Cadet 703-0859

Pedal Assy, Clutch and Brake

Note: (Replaces IH-538866-R1 on Tractors W/Serial No. 74457 and Below By Also Ord

$

$

Currently unavailable

Cub Cadet 736-3028

Washer, .781 X 1.250 X .054

$

$

Not available

5

Cub Cadet 724-3001

Pad, Pedal

Note: (Serial Number 74457 and Below)

$

$

Not available

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

Note: (Serial Number 74458 and Above)

$19.99

$

In Stock, Qty 9

0

6

Cub Cadet 703-0278

Lever Assy, Foot Pedal Brake

$

$

Currently unavailable

Cub Cadet 715-0134

Pin, 3/16 X 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

7

Cub Cadet 703-0280

Brake Assy

$

$

Currently unavailable

Cub Cadet 715-0134

Pin, 3/16 X 1-1/2 Hvy Pln Cld Spr
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

8

Cub Cadet 732-3019

Spring, Extension

$

$

Not available

9

Not used in this application

$

$

Not available

10

Ratchet, Brake Lock

Note: (Serial Number 74457 and Below Order Pedal 703-0859, Kit 759-3128, Grip 720

$

$

Not available

Ratchet, Brake Lock

Note: (Serial Number 74458 and Above Order Kit 759-3128)

$

$

Not available

Cub Cadet 720-3004

Grip, Brake Lock Ratchet

Note: (Serial Number 74458 and Above)

$

$

Currently unavailable

Cub Cadet 759-3128

Kit, Brake Lock

Note: (Serial Number 74458 and Above) Ratchet Nut Washer, Bell Washer, Flat

$

$

Not available
