2818 H (1692502) - Massey Ferguson 48" Garden Tractor, 18hp Lift Group - Hydraulic Parts Diagram

48" Garden Tractor, 18hp

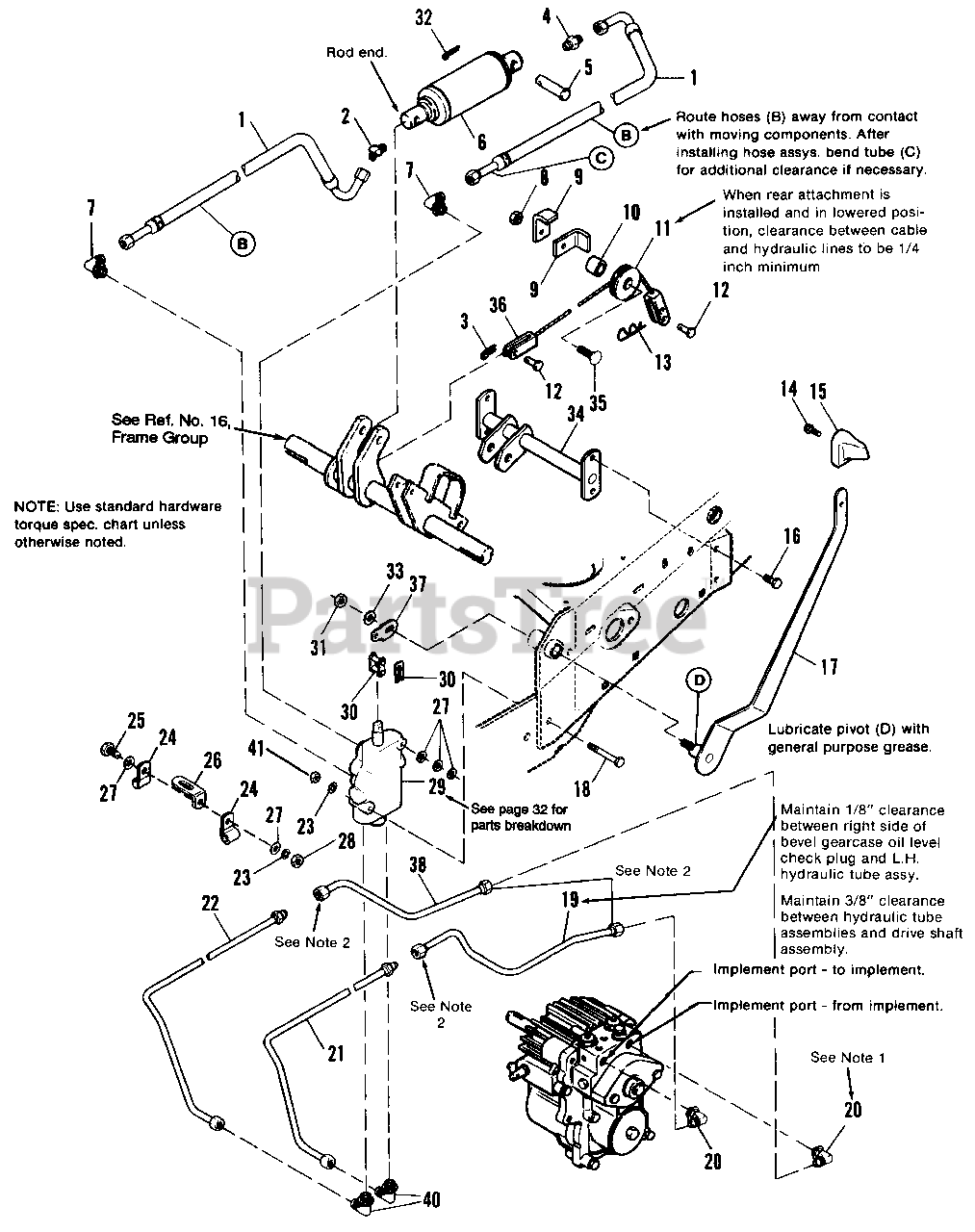

Lift Group - Hydraulic Parts Diagram

  • Title

1

Simplicity 1667408SM

HOSE, Hydraulic

$104.99

$

Usually ships in 2-12 days

0

2

Simplicity 2835046

ELBOW, 45ø Male

$

$

Not available

3

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2819766SM

CONNECTOR, 37ø Male

$6.99

$

Usually ships in 2-12 days

0

5

Simplicity 1722819SM

PIN

$6.99

$

In Stock, only 2 left!

0

6

Simplicity 1685347SM

CYLINDER, Hydraulic (Incl. Ref. No. 2)

$494.99

$

Usually ships in 2-12 days

0

7

Simplicity 2828812SM

ELBOW, Adjustable, 37ø

$12.99

$

In Stock, only 1 left!

0

8

Simplicity 1928731SM

LOCKNUT, Hex, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 2174723SM

GUARD, Cable

$

$

Not available

10

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

11

Simplicity 2172725SM

PULLEY

$48.99

$

In Stock, only 1 left!

0

12

Simplicity 1708298SM

PIN

$

$

Not available

13

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1960106SM

SCREW, Hex, Washer Hd., Plastite, 1/4-20 x 1

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 1713847SM

KNOB, Soft (All except Mfg. Nos. 1692143 & 1692144)

$19.99

$

Usually ships in 2-12 days

0

15

Simplicity 2171165

KNOB, (Mfg. Nos. 1692143 & 1692144)

$

$

Not available

16

Simplicity 1923683SM

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

17

Simplicity 1667270ASM

LEVER ASSY.

$213.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921963SM

CAPSCREW, Hex Hd., 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1667437SM

TUBE ASSY.

$47.99

$

Usually ships in 2-12 days

0

20

Simplicity 1675789SM

FITTING, Hydraulic

$54.99

$

Usually ships in 2-12 days

0

21

Simplicity 1668883SM

TUBE ASSY.

$62.99

$

Usually ships in 2-12 days

0

22

Simplicity 1668882SM

TUBE ASSY.

$86.99

$

Usually ships in 2-12 days

0

23

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

24

Simplicity 1708007SM

CLAMP

$7.49

$

Usually ships in 2-12 days

0

25

Simplicity 1921961SM

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 2108186SM

CLIP

$12.99

$

In Stock, only 1 left!

0

27

Simplicity 2821319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1916622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1708009SM

CONTROL VALVE ASSY. (See following 2 pages)

$

$

Not available

30

Simplicity 2171101

LINK, Connecting

$

$

Not available

31

Simplicity 1919439SM

NUT, Hex, Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 2158544SM

BEARING

$

$

Not available

33

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1667269SM

SUPPORT ASSY.

$109.99

$

Usually ships in 2-12 days

0

35

Simplicity 1960032SM

SCREW

$5.49

$

In Stock, only 1 left!

0

36

Simplicity 1673700SM

CABLE ASSY.

$104.99

$

Usually ships in 2-12 days

0

37

Simplicity 1667261SM

BELLCRANK

$

$

Not available

38

Simplicity 1667435SM

TUBE ASSY.

$

$

Not available

39

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 2823905SM

FITTING, Hydraulic

$61.99

$

Usually ships in 2-12 days

0

41

Simplicity 1960294SM

NUT, Hex, Flange, Whizlock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0
