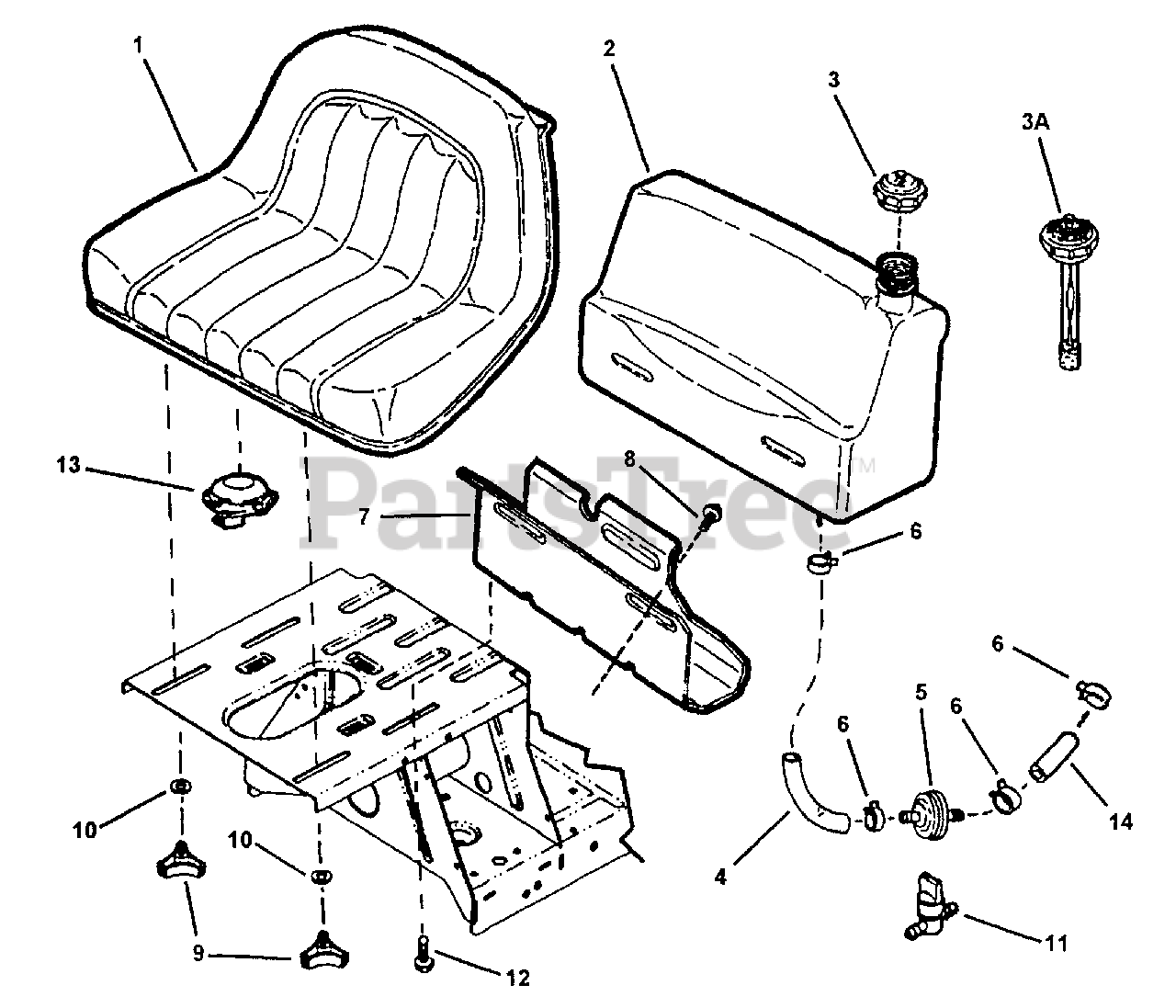

281320BE (84582) - Snapper 28" Rear-Engine Riding Mower, 13hp Fuel Tank & Operators Seat Parts Diagram

28" Rear-Engine Riding Mower, 13hp

Fuel Tank & Operators Seat Parts Diagram

  • Title
1

Snapper 7028595

SEAT, Operator
(Superseded to 7028650YP)

$262.99

$

In Stock, only 1 left!

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank (28" Deck)
(Superseded to 7051905YP)

Note: (Includes Item 3)

$201.99

$

In Stock, only 3 left!

0

2

Snapper 7052435

ASSEMBLY, Fuel Tank With Gauge
(Superseded to 7052435YP)

Note: (Includes Item 3A)

$234.99

$

Usually ships in 2-12 days

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, Qty 5

0

3A

Snapper 7019377

CAP, Fuel Tank (With Gauge)
(Superseded to 7019377YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7076272

HOSE, Fuel (8-1/2" Long)
(Superseded to 791766)

Note: (Briggs & Stratton: 8HP thru 14HP)

$7.99

$

In Stock, Qty 20+

0

4

Snapper 7012638

HOSE, Fuel (12-1/2" Long)
(Superseded to 791766)

Note: Was 12912 (Kohler Only)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

8

Snapper 7091542

SCREW, 5/16-18 x 5/8" Pan Head Self-Tap
(Superseded to 703932)

Note: (Torx #T-40)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7023191

KNOB, Seat Adjusting
(Superseded to 7023191SM)

$6.99

$

In Stock, only 2 left!

0

10

Snapper 7013849

SPACER, 5/16
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7034212

VALVE, Fuel Shut-Off
(Superseded to 7034212YP)

Note: Was 24507 (Accessory)

$31.99

$

In Stock, only 1 left!

0

12

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Flange Lock w/Nylon Patch
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

13

Snapper 7029211

SWITCH, Seat
(Superseded to 1714771SM)

Note: (Normally Closed)

$20.99

$

In Stock, only 1 left!

0

14

Snapper 7077351

HOSE, Fuel (3-1/2" Long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0
