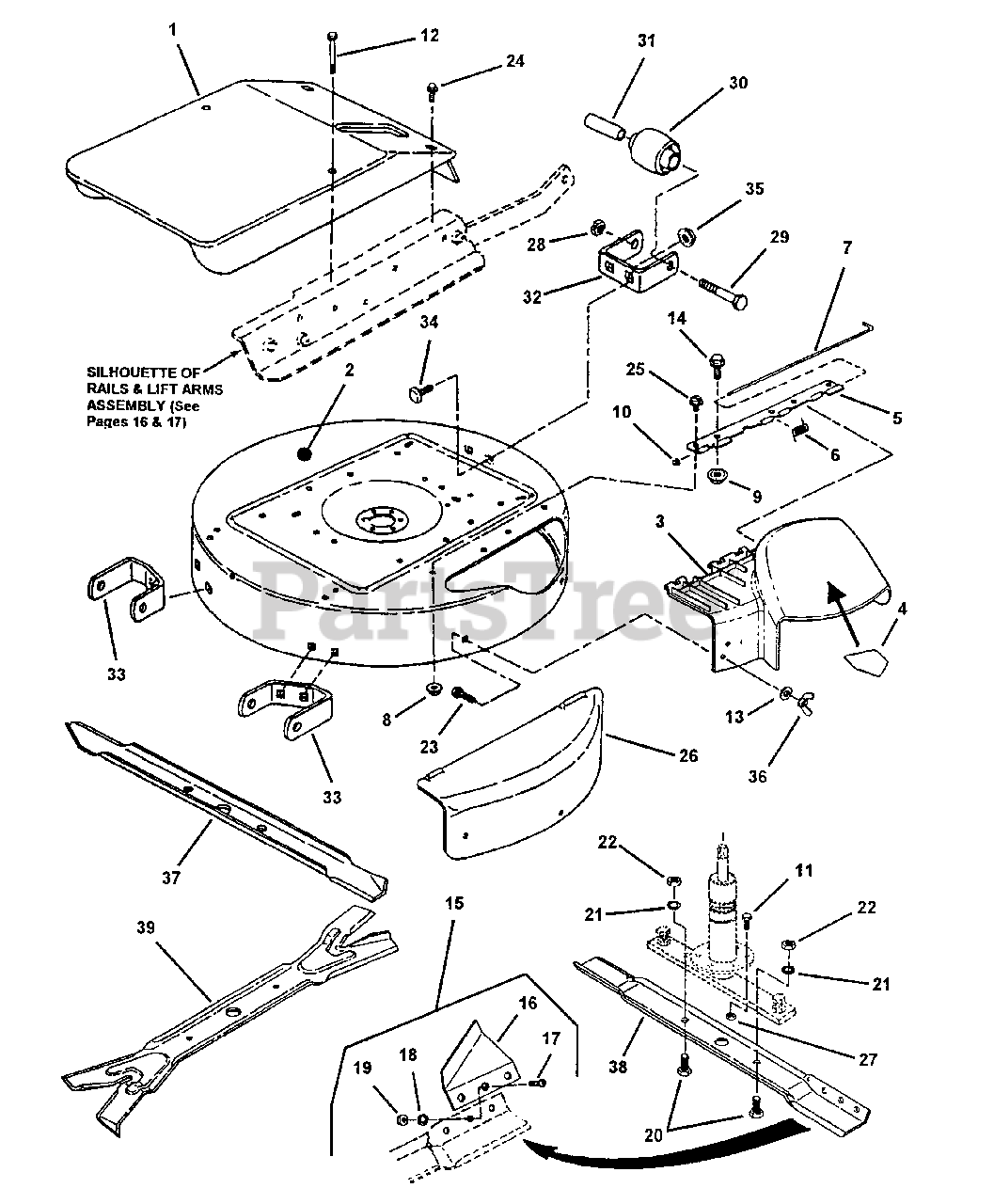

281320BE (84582) - Snapper 28" Rear-Engine Riding Mower, 13hp Cutting Deck, Deflector - 28 & 33 Parts Diagram

28" Rear-Engine Riding Mower, 13hp

Cutting Deck, Deflector - 28 & 33 Parts Diagram

  • Title

1

Snapper 7073434

COVER, Spindle
(Superseded to 7073434YP)

$125.99

$

In Stock, only 1 left!

0

2

Snapper 7061970

DECK, 28" Replacement (Painted deck with decals)
(Superseded to 7061970YP)

$

$

Not available

2

Snapper 7061972

DECK, 33" Replacement (Painted deck with decals)
(Superseded to 7061972YP)

$

$

Not available

3

Snapper 7057786

DEFLECTOR, Discharge (28" & 33" Deck)
(Superseded to 7600147YP)

Note: (Includes Items 4, 5, 6, 7 & 10)

$122.99

$

In Stock, only 1 left!

0

4

Snapper 7022841

DECAL, DANGER (Cut Finger)
(Superseded to 7022841SM)

$72.99

$

In Stock, only 1 left!

0

5

Snapper 7033780

HINGE, Deflector
(Superseded to 7300886BMYP)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 7016341

SPRING, Hinge
(Superseded to 7016341YP)

$4.49

$

In Stock, Qty 14

0

7

Snapper 7026234

PIN, Hinge
(Superseded to 7105174YP)

$8.99

$

In Stock, Qty 11

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

10

Snapper 7026483

NUT, Push
(Superseded to 7026483YP)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

12

Snapper 7091015

SCREW, 1/4-20 x 3-1/2" Hex Washer Self-Tap, Gr. 5
(Superseded to 7091015YP)

$

$

Not available

13

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7060480

AIR LIFT KIT, Hi-Vac
(Superseded to 7060480SM)

Note: (28" & 33" Models)

$

$

Not available

16

Snapper 7037723

AIR LIFT, Hi-Vac (3 hole)
(Superseded to 7037723BMYP)

Note: (28" & 33" Models)

$

$

Not available

17

Snapper 7090228

SCREW, 5/16-24 x 11/16" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7090391

WASHER, 5/16-24 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

22

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

24

Snapper 7090741

SCREW, 1/4-20 x 5/8" Hex Self-Tap w/ Captured Washer
(Superseded to 703054)

Note: Was 91016

$4.49

$

In Stock, Qty 5

0

25

Snapper 7090606

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 703823)

Note: Was 91510

$3.99

$

In Stock, Qty 5

0

26

Snapper 7016983

COVER, 28" Mulcher
(Superseded to 7016983YP)

$64.99

$

In Stock, only 4 left!

0

26

Snapper 7016984

COVER, 33" Mulcher
(Superseded to 7016984YP)

$

$

Not available

27

Snapper 7091619

NUT, 3/18-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

28

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

29

Snapper 7091532

SCREW, 38-24 x 3-3/4" Hex Head Cap, Grade 5
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

30

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

31

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

32

Snapper 7033570

BRACKET, Gage Wheel (Front)
(Superseded to 7033570BMYP)

$19.99

$

In Stock, only 2 left!

0

33

Snapper 7033571

BRACKET, Gage Wheel (Rear)
(Superseded to 7033571BMYP)

$14.99

$

In Stock, only 4 left!

0

34

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

35

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

36

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

37

Snapper 7016980

BLADE, 28" Mulcher
(Superseded to 7016980BZYP)

$35.99

$

In Stock, Qty 6

0

37

Snapper 7016982

BLADE, 33" Mulcher
(Superseded to 7024741AYP)

$94.99

$

Usually ships in 2-12 days

0

38

Snapper 7019515

28" BLADE (3 Air Lift Holes)
(Superseded to 7019515BZYP)

$30.99

$

In Stock, only 4 left!

0

38

Snapper 7019523

33" BLADE (3 Air Lift Holes)
(Superseded to 7019523BZYP)

$36.99

$

In Stock, Qty 20+

0

39

Snapper 7026453

BLADE, Ninja, 28"
(Superseded to 7104083BZYP)

$

$

Not available

39

Snapper 7024741

BLADE, Ninja, 33"
(Superseded to 7024741AYP)

$94.99

$

Usually ships in 2-12 days

0
