2812X6ST (81738) - Snapper 28" Rear-Engine Riding Mower, 12hp Drive Disc Assembly Parts Diagram

28" Rear-Engine Riding Mower, 12hp

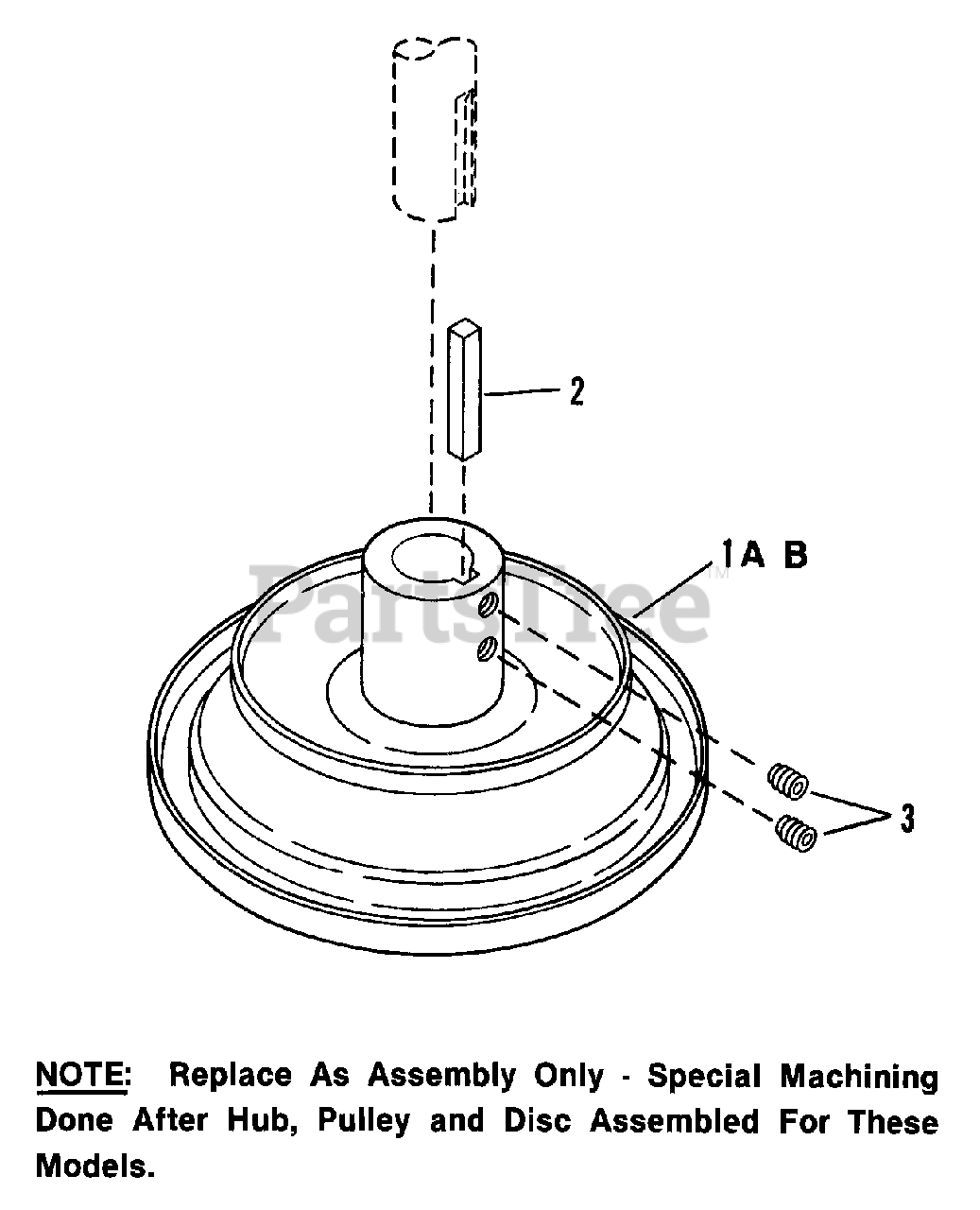

Drive Disc Assembly Parts Diagram

  • Title
1A

Snapper 7074187

ASSEMBLY, Drive Disc, 4" O.D.
(Superseded to 7074187YP)

Note: For 30 & 33" Models, Was 51581

$155.99

$

In Stock, only 3 left!

0

1B

Snapper 7072658

ASSEMBLY, Drive Disc, 5" O.D.
(Superseded to 7072658YP)

Note: For 28 & 41" Models, Was 51582

$125.99

$

In Stock, only 1 left!

0

2

Snapper 7010210

KEY, 1/4x1/4x2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

3

Snapper 7090132

SET-SCREW, 3/8-16x3/8"
(Superseded to 7090132YP)

$3.49

$

In Stock, Qty 5

0
