2812X6ST (81738) - Snapper 28" Rear-Engine Riding Mower, 12hp Blade Stop Pedals Parts Diagram

28" Rear-Engine Riding Mower, 12hp

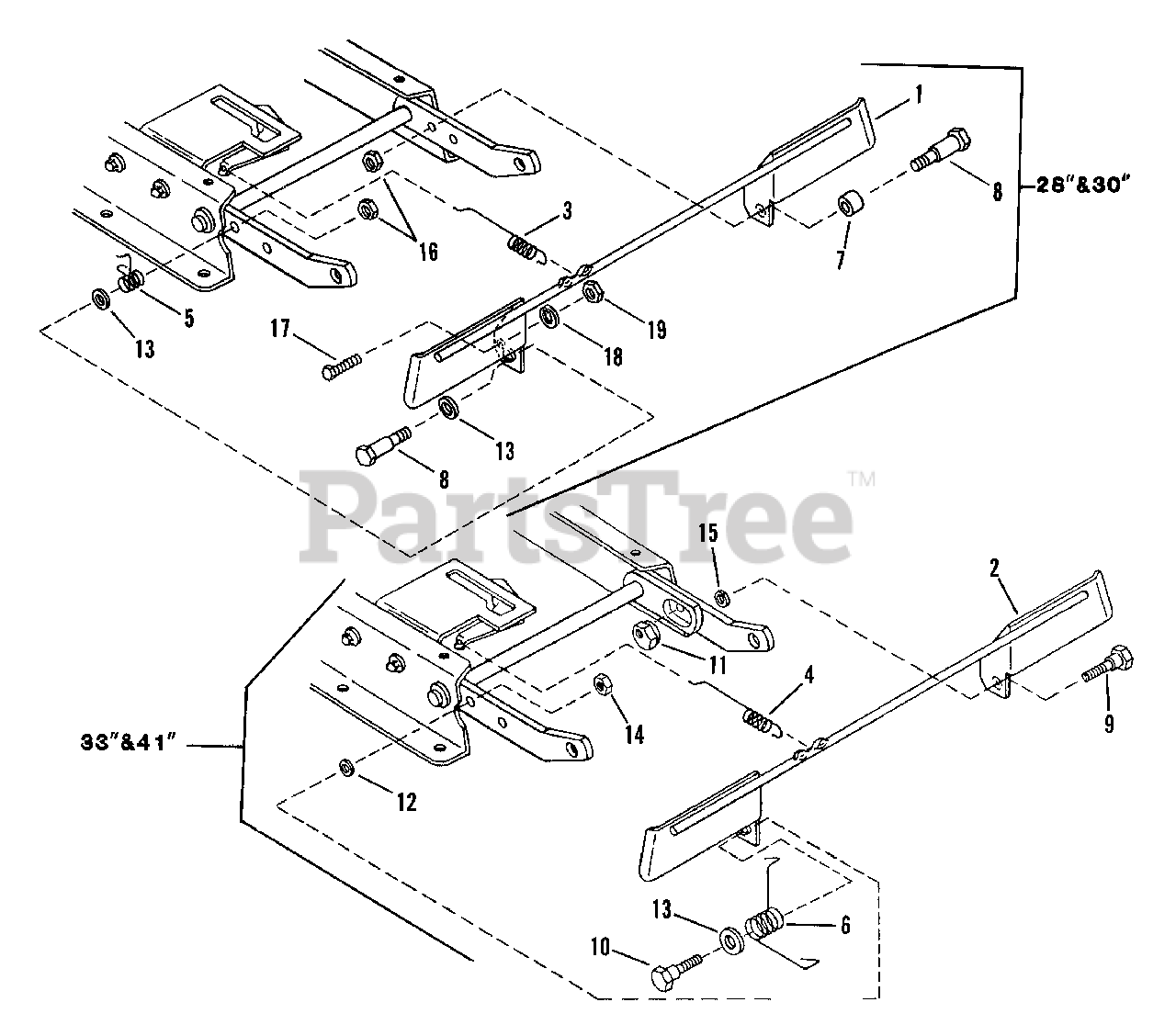

Blade Stop Pedals Parts Diagram

  • Title
1

Snapper 7047788

PEDAL, Blade Stop Control (28 & 30")

$

$

Not available

2

Snapper 7047886

PEDAL, Blade Stop Control (33 & 41 ")

$

$

Not available

3

Snapper 7014320

SPRING, Latching (28 & 30")
(Superseded to 7014320YP)

$16.99

$

In Stock, only 1 left!

0

4

Snapper 7014389

SPRING, Latching (33 & 41")
(Superseded to 7014389YP)

$11.99

$

In Stock, only 1 left!

0

5

Snapper 7014166

SPRING, Pedal (28 & 30")
(Superseded to 7014166YP)

$10.99

$

In Stock, only 1 left!

0

6

Snapper 7015448

SPRING, Pedal (33 & 41")
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

7

Snapper 7014394

SPACER (28 & 30")

$1.99

$

In Stock, Qty 7

0

8

Snapper 7014158

BOLT, 3/8-24 x 1-3/4" Shoulder (28 & 30")

$

$

Currently unavailable

9

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder (33 & 41")
(Superseded to 7015495YP)

$

$

Not available

10

Snapper 7015446

BOLT, 3/8-24 x 9/16" Shoulder (33 & 41")
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7090289

NUT, 3/8-24 Hex Center Lock, Grade 5
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

15

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

17

Snapper 7090535

SCREW, 1/4-28 x 1" Hex Head Cap
(Superseded to 7090535YP)

$4.49

$

In Stock, only 2 left!

0

18

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

19

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

--

Snapper 7060571

KIT, Automatic Blade Stop

$

$

Currently unavailable
