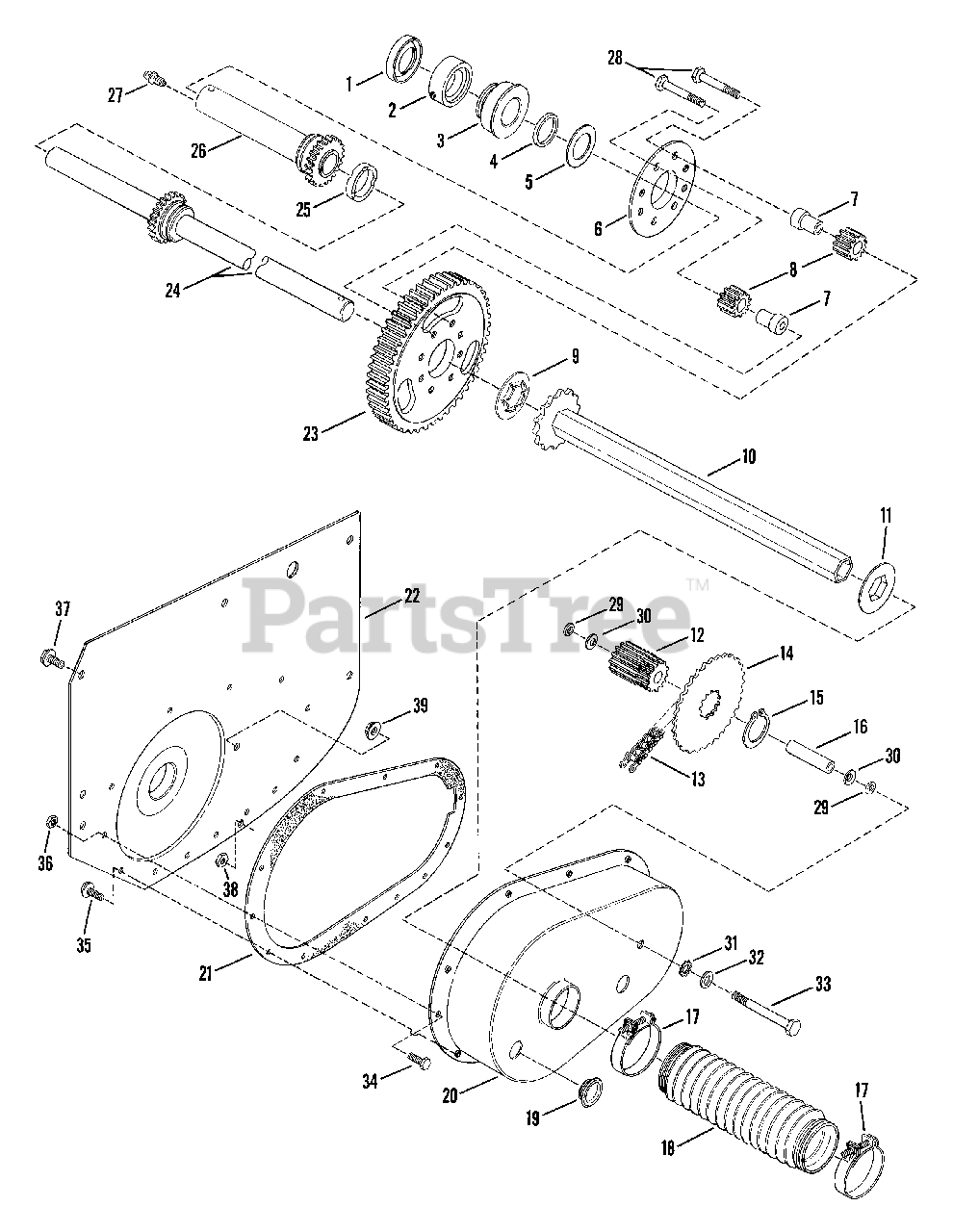

2812X6SR (81438) - Snapper 28" Rear-Engine Riding Mower, 12hp Differential, RH Fender Parts Diagram

28" Rear-Engine Riding Mower, 12hp

Differential, RH Fender Parts Diagram

  • Title

1

Snapper 7011817

SEAL, Oil
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

2

Snapper 7014401

COLLAR, Lock
(Superseded to 7014401YP)

Note: (Includes 5/16Cx5/16" Set Screw #90201

$26.99

$

Usually ships in 2-12 days

0

3

Snapper 7018822

BEARING, Axle, Right Hand Fender (1.12" ID 12.5" OD)
(Superseded to 7018822YP)

$74.99

$

In Stock, Qty 6

0

4

Snapper 7032107

SPACER, Short Axle

Note: (Use only with older non-lipped 14400 brng.)

$10.99

$

In Stock, Qty 9

0

5

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

6

Snapper 7038067

PLATE, Differential
(Superseded to 7038067YP)

$

$

Not available

7

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

Note: Was 21126

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7021127

PINION GEARS, Differential (12 Tooth)
(Superseded to 7021127YP)

$23.99

$

In Stock, only 2 left!

0

9

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

10

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

$92.99

$

In Stock, Qty 5

0

11

Snapper 7010988

WASHER, Nylon Hex Splash
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 19

0

12

Snapper 7010964

GEAR, 11 Teeth, 10 Pitch
(Superseded to 7200128YP)

$14.99

$

Usually ships in 2-12 days

0

13

Snapper 7010941

CHAIN, 46 Pitch (#35)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

14

Snapper 7021129

SPROCKET
(Superseded to 7021129YP)

$20.99

$

In Stock, only 4 left!

0

15

Snapper 7010965

RING, Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

16

Snapper 7021128

SPACER
(Superseded to 7021128YP)

$7.49

$

In Stock, only 1 left!

0

17

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

18

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 11011

$10.99

$

In Stock, Qty 20+

0

19

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

20

Snapper 7037279

CASE, Transmission
(Superseded to 7037279YP)

$79.99

$

In Stock, only 1 left!

0

21

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

Note: Was 18060

$24.99

$

In Stock, Qty 20+

0

22

Snapper 7037957

FENDER, Right Hand

$

$

Not available

23

Snapper 7027644

GEAR, 63 Teeth, 10 Pitch
(Superseded to 7027644YP)

$

$

Not available

24

Snapper 7075479

AXLE, Long
(Superseded to 7075479YP)

Note: Was 47763

$136.99

$

In Stock, Qty 12

0

25

Snapper 7074431

SPACER, Differential (1.25" ID x .425 Wide)
(Superseded to 7074431YP)

Note: Was 11026

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7057398

AXLE, Short
(Superseded to 7600137YP)

Note: (Includes Gear) Use only with Long Axle #47763

$95.99

$

In Stock, only 3 left!

0

27

Snapper 7014669

FITTING, Lube
(Superseded to 7014669YP)

Note: (Used on 1984 & 1985 models only)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7012333

CAPSCREW, 5/16-24x1 5/8" Hex, Special Lock
(Superseded to 7012333YP)

$4.99

$

In Stock, only 2 left!

0

29

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7011782

WASHER, Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090395

WASHER, 5/16 External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

32

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7011042

BOLT, 5/16-24x2 5/8" Idler
(Superseded to 7011042YP)

$4.49

$

In Stock, Qty 7

0

34

Snapper 7090072

SCREW, 1/4-20x5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

35

Snapper 7091819

SCREW, 1/4-20x5/8", Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

36

Snapper 7090372

NUT, 1/4-20 Hex Lock
(Superseded to 703954)

$

$

Not available

37

Snapper 7090361

SCREW, 5/16-18x5/8", Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

38

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

Snapper 7060662

KIT, Differential
(Superseded to 7600229YP)

Note: (Includes 18822 Ball Bearing and item 22)

$1049.99

$

Usually ships in 2-12 days

0

Snapper 7051452

ASSEMBLY, Fender Right Hand

Note: (Includes items 3 and 22)

$

$

Currently unavailable
