2812524BVE (7800785) - Snapper 28" Rear-Engine Riding Mower, 12.5hp Mower Deck & Spindle Group (28" & 33") Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

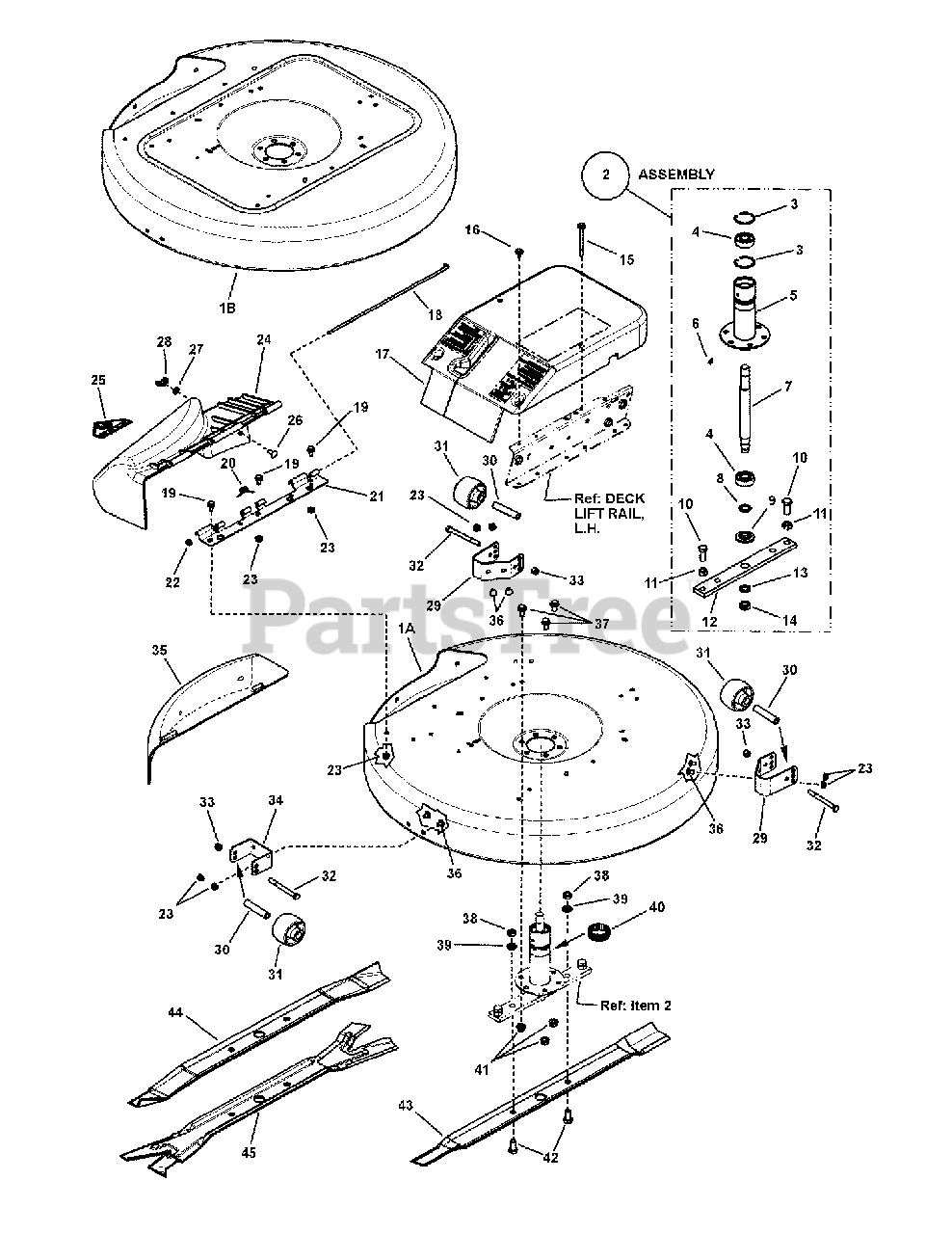

Mower Deck & Spindle Group (28" & 33") Parts Diagram

  • Title

1A

Snapper 7061970

DECK, 28" Replacement (painted deck w/decals)
(Superseded to 7061970YP)

$

$

Not available

1B

Snapper 7061972

DECK, 33" Replacement (painted deck w/decals)
(Superseded to 7061972YP)

$

$

Not available

2

Snapper 7054531BM

ASSEMBLY, Spindle Housing (Incl. items 3 thru 14)
(Superseded to 7054531BMYP)

$

$

Not available

3

Snapper 7012491

RING, 1.85" Internal Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7050696

ASSEMBLY, Housing (Incl. grease fitting, 7010817)
(Superseded to 7040460BMYP)

$63.99

$

In Stock, Qty 9

0

6

Snapper 7010817

LUBE FITTING, 3/16" Press-In
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7044785

SPINDLE, Rider (10.327" overall length)
(Superseded to 7044785YP)

$40.99

$

In Stock, Qty 20+

0

8

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

10

Snapper 7090491

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7091939

NUT, 1/2-20 Hex, GR 5 or B
(Superseded to 7091939YP)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7031184

HOLDER, Blade (for 25" deck)
(Superseded to 7031184BMYP)

$70.99

$

In Stock, only 1 left!

0

12

Snapper 7037751

HOLDER, Blade (for 28" Deck)
(Superseded to 7037751BMYP)

$45.99

$

Usually ships in 2-12 days

0

13

Snapper 7044782

SPACER, Blade Centering
(Superseded to 7044782YP)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7091015

SCREW, 1/4-20 x 3-1/2" Hex Head w/Free Spinning Washer
(Superseded to 7091015YP)

$

$

Not available

16

Snapper 7091016

SCREW, 1/4-20 x 5/8" Hex Head w/Free Spinning Washer
(Superseded to 7091016YP)

$4.49

$

In Stock, Qty 5

0

17

Snapper 7073434

COVER, Spindle
(Superseded to 7073434YP)

$125.99

$

In Stock, only 1 left!

0

18

Snapper 7026234

PIN, Hinge
(Superseded to 7105174YP)

$8.99

$

In Stock, Qty 11

0

19

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

20

Snapper 7016341

SPRING, Hinge
(Superseded to 7016341YP)

$4.49

$

In Stock, Qty 14

0

21

Snapper 7300886

HINGE, Deflector (Deck side)
(Superseded to 7300886BMYP)

$20.99

$

Usually ships in 2-12 days

0

22

Snapper 7026483

PUSH NUT, 1/4"
(Superseded to 7026483YP)

$4.49

$

In Stock, only 1 left!

0

24

Snapper 7500276

ASSEMBLY, Discharge Deflector, 25" & 28" (w/o decal)
(Superseded to 7600096YP)

Note: (incl. items 18, 20, 21, 22 & p/n 7026233)

$

$

Not available

23

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7026233

DEFLECTOR, Discharge, 28"
(Superseded to 7026233YP)

$74.99

$

In Stock, Qty 20+

0

25

Snapper 7022841

DECAL, Danger, (Cut Finger) International Symbol
(Superseded to 7022841SM)

$72.99

$

In Stock, only 1 left!

0

26

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

27

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

29

Snapper 7033571

BRACKET, Gage Wheel (Rear)
(Superseded to 7033571BMYP)

$14.99

$

In Stock, only 4 left!

0

30

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

31

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

32

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" Hex Head Cap, GR 5
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

33

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

34

Snapper 7033570

BRACKET, Gage Wheel (Front)
(Superseded to 7033570BMYP)

$19.99

$

In Stock, only 2 left!

0

35

Snapper 7016983

COVER, 28" Mulcher
(Superseded to 7016983YP)

Note: (optional)

$64.99

$

In Stock, only 4 left!

0

35

Snapper 7016984

COVER, 33" Mulcher
(Superseded to 7016984YP)

Note: (optional)

$

$

Not available

36

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

37

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

38

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

40

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

41

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

42

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap, GR 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7104196BZYP

BLADE, 28" High Lift (No Air Lift Holes)(Standard Equipment)
(Superseded to 7104196BMYP)

$27.99

$

In Stock, only 2 left!

0

43

Snapper 7034168BZYP

BLADE, 33" High Lift (No Air Lift Holes)(Standard Equipmment)

$26.99

$

In Stock, only 3 left!

0

44

Snapper 7016980BZYP

BLADE, 28" Mulcher

$35.99

$

In Stock, Qty 6

0

44

Snapper 7016982

BLADE, 33" Mulcher (No Longer Available, USE 7024741AYP)
(Superseded to 7024741AYP)

$94.99

$

Usually ships in 2-12 days

0

45

Snapper 7104083BZYP

BLADE, 28" Recycling Ninja

$

$

Not available

45

Snapper 7024741AYP

BLADE, 33" Ninja Mulcher

$94.99

$

Usually ships in 2-12 days

0
