2812524BVE (7800785) - Snapper 28" Rear-Engine Riding Mower, 12.5hp Electrical Group (12.5 HP Briggs E/S) Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

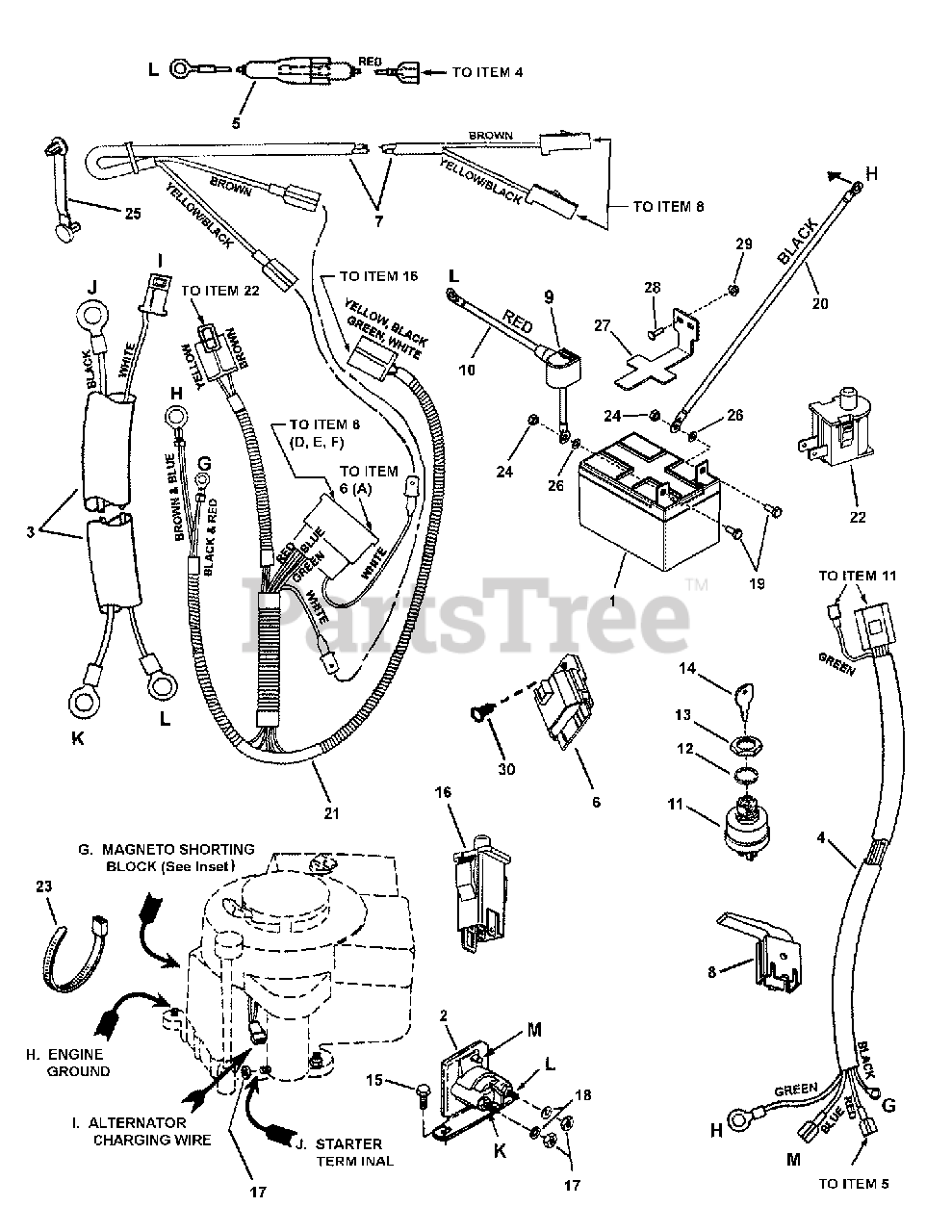

Electrical Group (12.5 HP Briggs E/S) Parts Diagram

  • Title

1

Snapper 7600188

BATTERY KIT, 12V 20HR: 190CCA
(Superseded to 7600188YP)

$125.99

$

In Stock, only 4 left!

0

2

Snapper 7075671

SOLENOID, Super Trombetta, RER
(Superseded to 7075671YP)

$31.99

$

Usually ships in 2-12 days

0

3

Snapper 7022788

WIRE HARNESS, Starter
(Superseded to 7022788YP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7073715

WIRE HARNESS, M Series, Electric Start
(Superseded to 7073715YP)

$

$

Not available

5

Snapper 7016168

HOLDER, Fuse
(Superseded to 7016168YP)

$23.99

$

In Stock, only 3 left!

0

--

Snapper 7016169

FUSE, 10 Amp (Not shown)
(Superseded to 7016169YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7028606

INTERLOCK MODULE, Briggs
(Superseded to 7028606YP)

$53.99

$

In Stock, Qty 7

0

7

Snapper 7028386

HARNESS, (Deck Interlock Wiring)
(Superseded to 7028386YP)

$14.99

$

In Stock, only 2 left!

0

8

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 9

0

9

Snapper 7105082

BOOT, Insulator
(Superseded to 7105082YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7019326

WIRE, Positive, 17" Long
(Superseded to 7019326YP)

$8.99

$

In Stock, only 1 left!

0

11

Snapper 7073797

SWITCH, Ignition, 4 Terminal, Indak
(Superseded to 7073797YP)

$38.99

$

In Stock, only 3 left!

0

12

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 1737836

KEYS, BLISTER PK KIDS+MWRS DON'T MIX,DOM
(Superseded to 1737836YP)

$20.99

$

In Stock, only 1 left!

0

15

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

$3.99

$

In Stock, Qty 5

0

16

Snapper 7022886

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

17

Snapper 7091576

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

19

Snapper 7090072

SCREW, 1/4-20 x 5/8 Hex Head Cap, GR 5, YZ
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

20

Snapper 7028027

WIRE, Negative, 15" Long, Black
(Superseded to 7028027YP)

$10.99

$

In Stock, Qty 6

0

21

Snapper 7028607

HARNESS, Operator Presence Control (OPC) Wire
(Superseded to 7028607YP)

$51.99

$

Usually ships in 2-12 days

0

22

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

23

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$

$

Not available

25

Snapper 7014451

CABLE TIE, 3.19" long
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7012485

RETAINER, 1/4" Bolt, BP
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

27

Snapper 7301200BZ

BRACKET, Battery, RER
(Superseded to 7301200BMYP)

$15.99

$

Usually ships in 2-12 days

0

28

Snapper 7900056

BOLT, #10-24 x 3/4, Round Head Square Neck Carriage, YZ
(Superseded to 7900056YP)

$4.49

$

In Stock, only 1 left!

0

29

Snapper 7091079

NUT, #10-24 Hex Flange Lock, BZ
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7091272

FASTENER, 1/4" Ratchet
(Superseded to 7091272YP)

$3.99

$

In Stock, Qty 13

0
