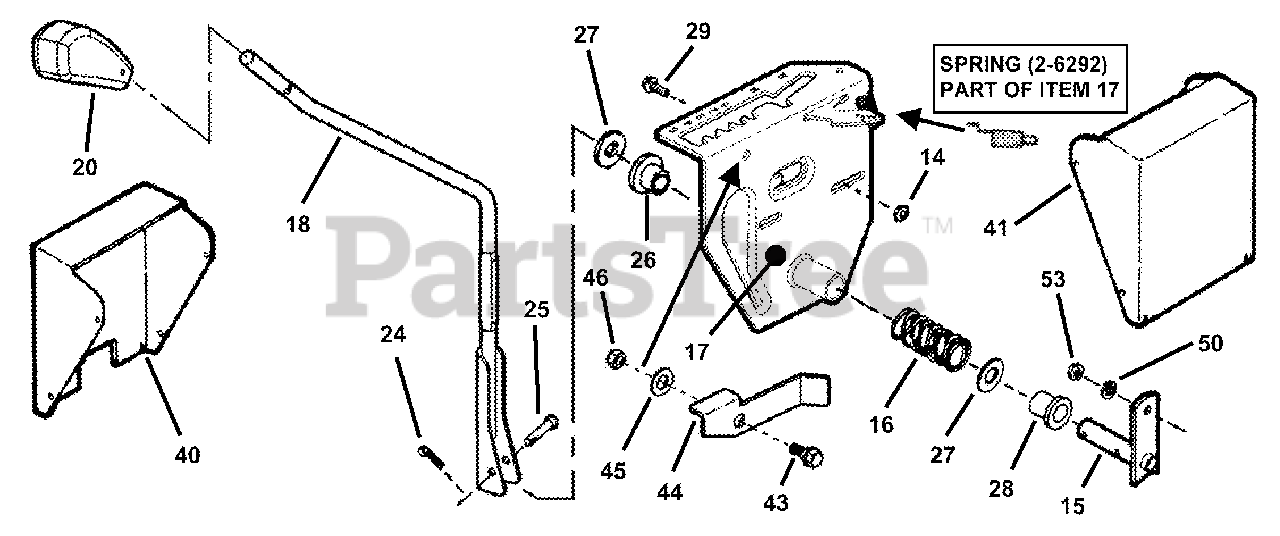

281222BE (84703) - Snapper 28" Rear-Engine Riding Mower, 12hp Main Case (Part 2) Parts Diagram

28" Rear-Engine Riding Mower, 12hp

Main Case (Part 2) Parts Diagram

  • Title
14

Snapper 7091511

NUT, 5/16-18 Hex, Gr. 5 or B
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7040598

ARM, Shift Handle (weldment)
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

16

Snapper 7010754

SPRING, Shift Handle
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7058763

ASSEMBLY, Shift Detent
(Superseded to 7600139YP)

Note: (Incl. Spring, part no. 2-6292)

$140.99

$

Usually ships in 2-12 days

0

18

Snapper 7059212

HANDLE, Shift (weldment)
(Superseded to 7059212DYP)

$56.99

$

In Stock, Qty 20+

0

20

Snapper 7023656

GRIP, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

24

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7023914

PIN, 1/4 x 1-3/4" Tapered Clevis
(Superseded to 7023914YP)

$

$

Not available

26

Snapper 7019245

BUSHING, Nylon
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

27

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7019246

BUSHING, Nylon
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

40

Snapper 7028989

COVER, Switch
(Superseded to 7073268YP)

Note: (series 19 & earlier)

$20.99

$

In Stock, only 2 left!

0

Snapper 7073268

COVER, Solenoid
(Superseded to 7073268YP)

Note: (series 20 & later)

$20.99

$

In Stock, only 2 left!

0

41

Snapper 7028990

COVER, Battery
(Superseded to 7028990YP)

$34.99

$

In Stock, only 1 left!

0

43

Snapper 7015761

BOLT, 5/16-18 Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

44

Snapper 7073289

LEVER, Over-Ride
(Superseded to 7073289YP)

$7.49

$

Usually ships in 2-12 days

0

45

Snapper 7091595

WASHER, 7/16" Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

46

Snapper 7091298

NUT, 5/16-18 Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

50

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

53

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0
