28115S (87784) - Snapper 28" Rear-Engine Riding Mower, 11hp Exhaust- B&S 10&11 HP Engines Parts Diagram

28" Rear-Engine Riding Mower, 11hp

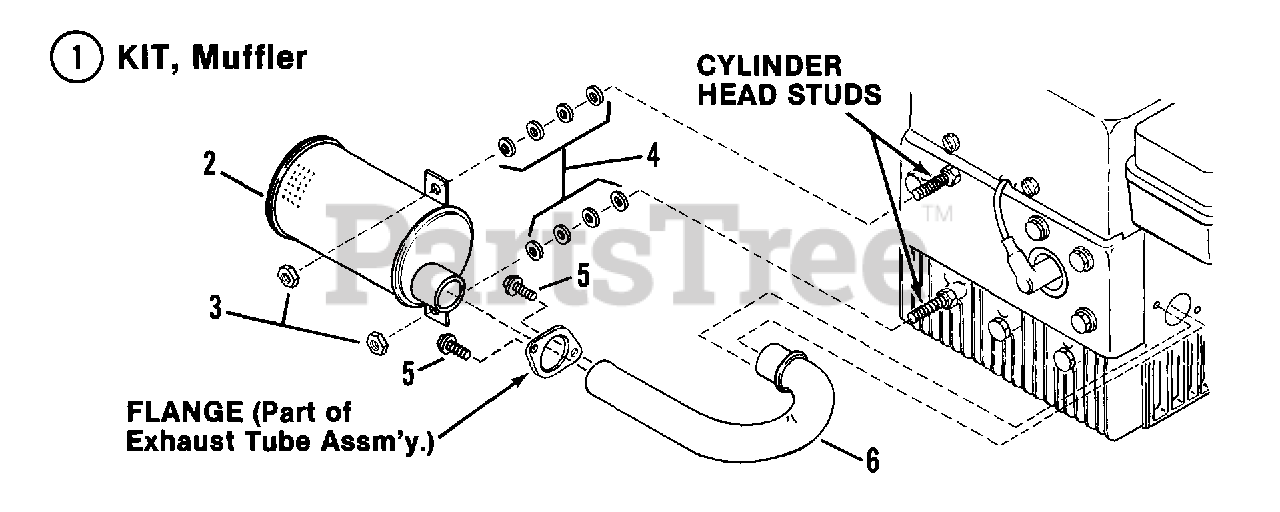

Exhaust- B&S 10&11 HP Engines Parts Diagram

  • Title
1

Snapper 7060334

KIT, Muffler

Note: (For B&S 10 & 11 HP Engines). (Includes items 2 thru 6)

$

$

Not available

2

Snapper 7018213

MUFFLER

$

$

Not available

3

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

Note: (For 10 HP Only)

$4.49

$

In Stock, Qty 6

0

5

Snapper 7091318

CAPSCREW, 5/16Cx3/4" Hex Head
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

6

Snapper 7018214

TUBE, Exhaust

Note: (Includes Flange)

$

$

Not available
